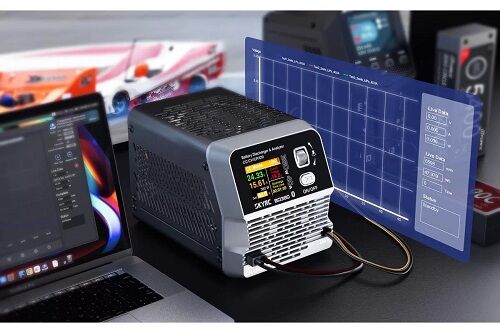

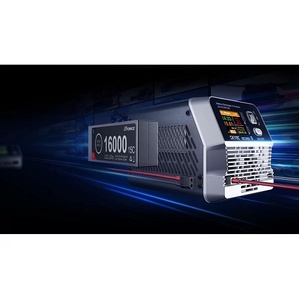

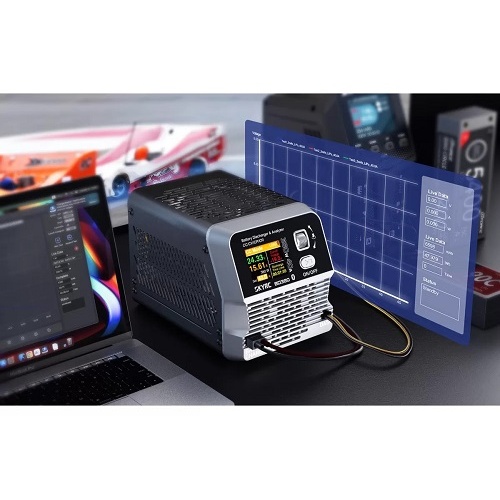

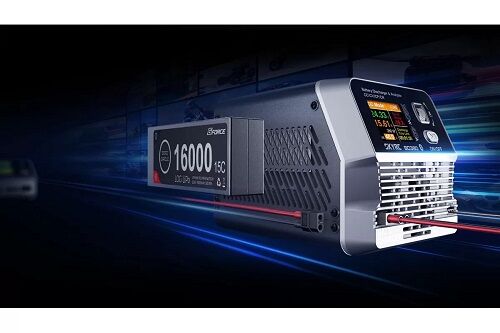

skyRC BD380 Battery Discharger & Analyser

Powerful Battery Discharger & Analyser

Meet the ultimate power-unleashing machine: the SkyRC BD380+.

No external power needed. It kicks into action instantly, discharging with savage efficiency. Pair it with the D200neo or T1000 chargers and unleash next-level charging and discharging power. Boosts battery burst capabilities, enhances high-current discharging and charging, performance that ensures your batteries reach peak potential.

Display:

Display Type: TN
Size: 1.77 inch
Panel Active Area: 43.20*57.60mm
Resolution: 160x128 Pixel
Number of Colors: 262K



Power:

DC Input Voltage: 3-30V
Discharge power: Max. 380W
Battery Connector Interface: XT60
Discharge: 0.3A-40.0A



Operating mode:

CC Constant Current: 0.3-40.0A
CR Constant Resistance: 1-100Ω
CP Constant Power: 1-380W
CV Constant Voltage: Maximum power is 180W. Note: Do not connect the battery in this mode



Working and Storage:

Operating temperature: 0℃-40℃
Working humidity: 0%-75%
Storage temperature: -10℃-70℃
Storage humidity: 0%-75%
