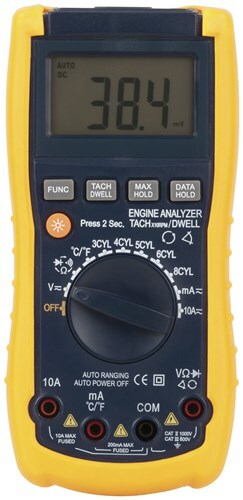

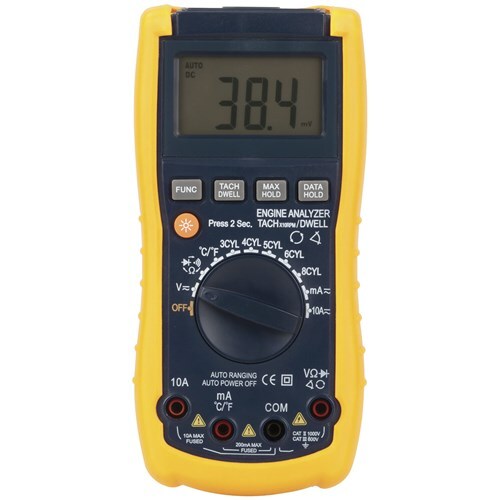

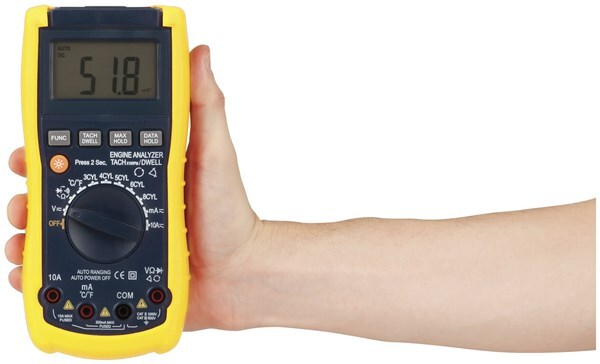

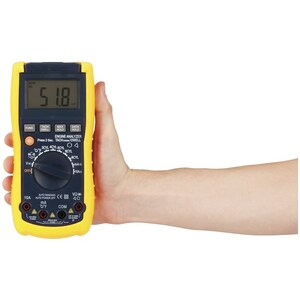

Automotive DMM with Dwell and Tacho
Dwell & Tacho Automotive Digital Multimeter
SKU: TT4584
$69.95
RRP $149.00
In Stock
Automotive DMM with Dwell and Tacho
Dwell & Tacho Automotive Digital Multimeter
Perfect for the workshop as an an engine analyser as well as basic DMM. Full dwell angle measurement and tacho, with max / data hold and bright backlit LCD.
Features:
• Dwell angle
• RPM x10
• Data hold
• Max hold
• Continuity & diode test
• Backlight
• Auto power off
• Display: 2000 count
• Measurement Category: Cat II 1000V / Cat III 600V
• Diode Test
• Continuity Test
Specifications
| Continuity buzzer : true |
| AC Current Ranges : 20mA, 200mA, 2A, 10A |
| AC Current Accuracy : 1.8%% |
| DC Current Ranges : 20mA, 200mA, 2A, 10A |
| DC Current Accuracy : 1.5%% |
| Resistance Ranges : 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ |
| Resistance Accuracy : 1.0%% |
| Outdoor / Exterior Scale : -20°C, 1000°C |
| Outdoor / Exterior Scale : -4°F, 1832°F |
| AC Voltage Ranges : 2V, 20V, 200V, 700V |
| AC Voltage Accuracy : 1.0%% |
| DC Voltage Ranges : 200mV, 2V, 20V, 200V, 1000V |
| DC Voltage Accuracy : 0.8%% |
| Records Maximum : true |
| Data Hold : true |
| Display Type : LCD |
| Display Backlight : LED Backlit |
| Safety Rating Cat : Cat III |
| Safety Rating Max Volt : 600V |
| Count Maximum Reading : 2000 count |
| Autorange : true |
| Measures dwell : true |
| Length : 180mm |
| Width : 87mm |
| Depth : 50mm |
| Size / Shape : AAA |
| Battery quantity : 2pc |
| Packaged Volume : 2.28l |
| Packaged Weight : 0.53kg |
| Packaged Length : 22.4cm |
| Packaged Width : 16.4cm |
| Packaged Height : 6.2cm |
| Measurement Range Count : 2000 count |
| Meter Input Impedence : 10MΩ |
| Measures diode : true |
3 Month Warranty
| SKU | TT4584 |
| Barcode # | |
| Brand | Aus Electronics Direct |
| Shipping Weight | 0.5500kg |
| Shipping Width | 0.170m |
| Shipping Height | 0.070m |
| Shipping Length | 0.230m |
| Shipping Cubic | 0.002737000m3 |
| Unit Of Measure | ea |
| Assembled Length | 0.700m |
| Assembled Height | 0.240m |
| Assembled Width | 0.126m |
