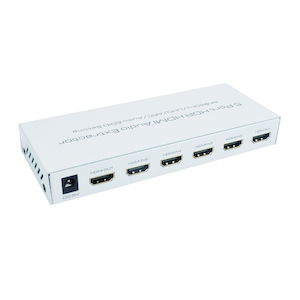

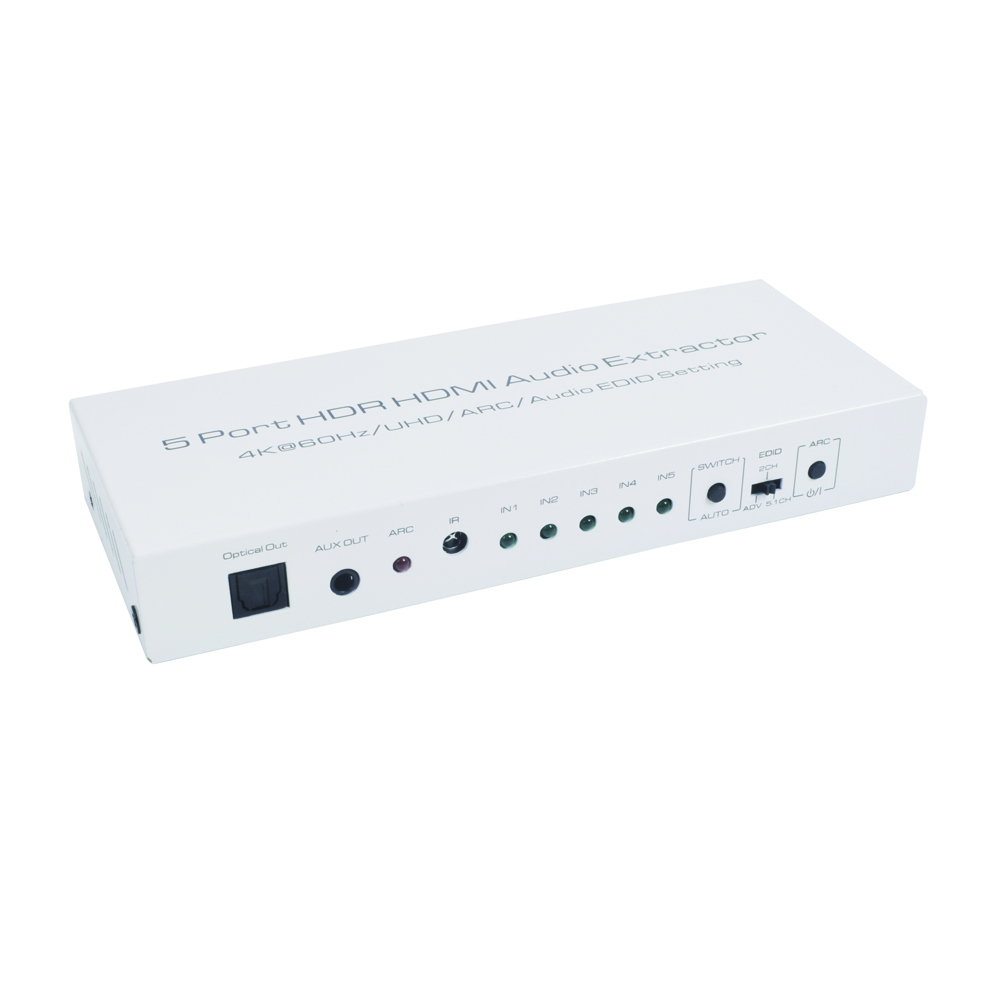

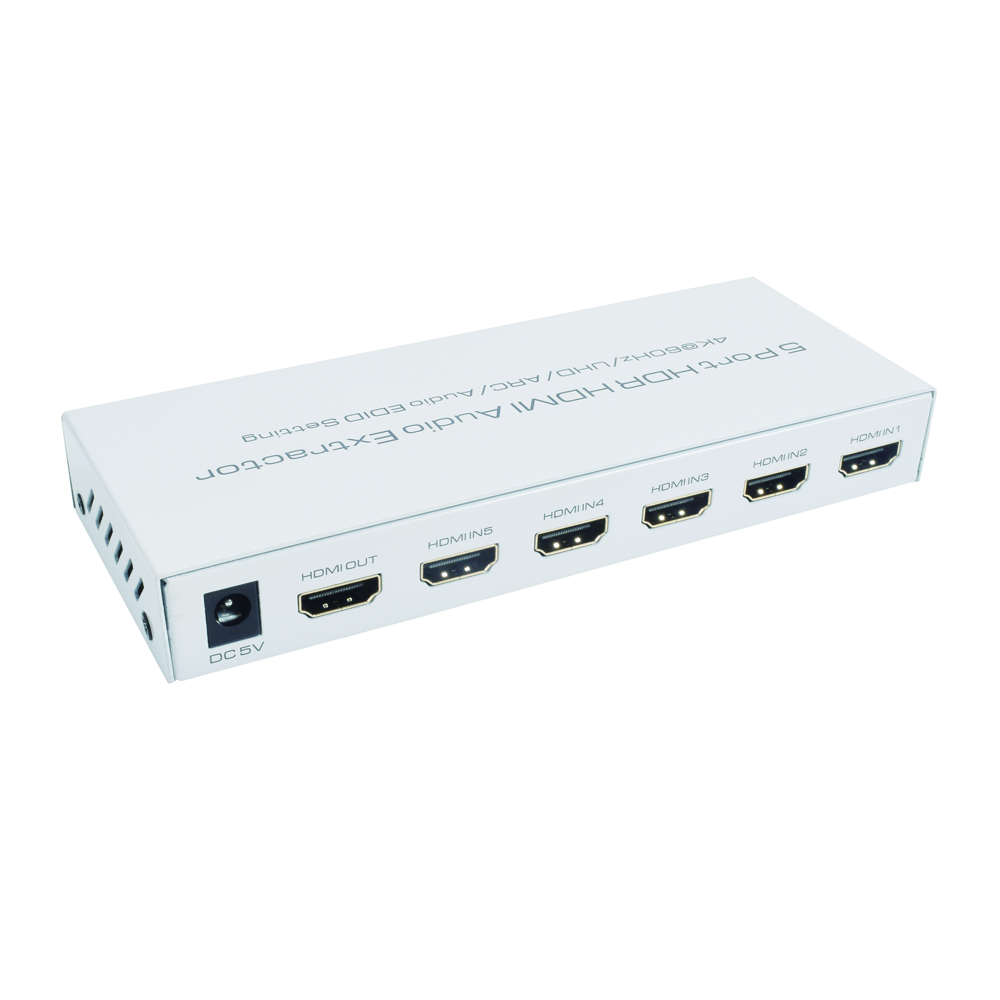

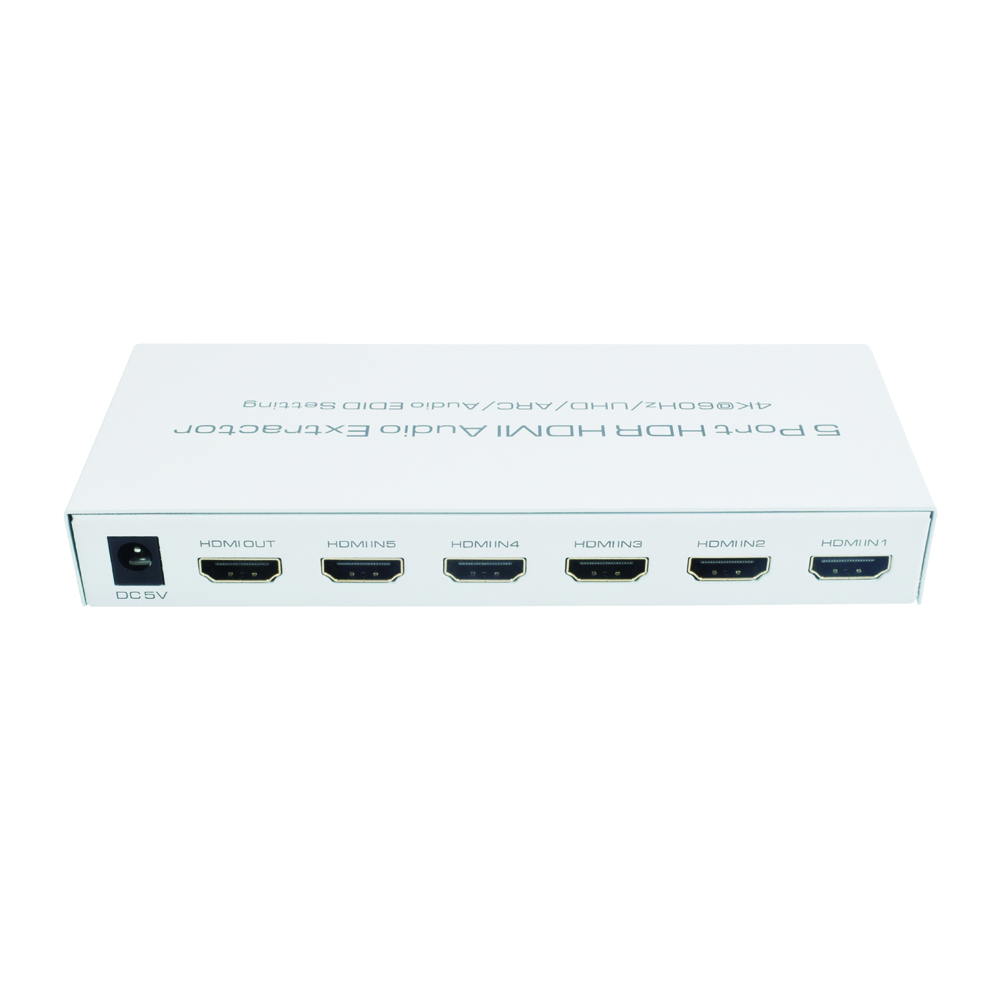

5 Input HDMI 2.0 4K @ 60Hz Switcher with Audio Extractor

5 Way HDMI Switcher with Optical/Stereo Audio Extractor

SKU: AA6312


$99.00
RRP $199.00
Sold Out

Buy In Bulk & Save!
Buy 4 to 10: Pay $89.10 ea
Buy 11 to 20: Pay $80.19 ea
Buy 21 to 100: Pay $72.17 ea




Calculate Shipping

5 Input HDMI 2.0 4K @ 60Hz Switcher with Audio Extractor

Allows switching of 5 HDMI 2.0 inputs to an LCD display and Audio Receiver simultaneously

This is a high-performance HDMI switch box with five HDMI 2.0 inputs, it allows switching of any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on any of the two displays simultaneously, and supports 4K @ 60Hz and Dolby Atmos.

This HDMI Switcher also has a built-in Audio splitter for connection to an amplifier, receiver or home theater set ups via 3.5 line level or fibre optic audio output.

FEATURES

• HDMI 2.0b, HDCP 2.2 compliant

• Up to 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4

• 5x1 HDMI switch with EQ and Re-clocking

• Auto and manual switching mode

• Extracts HDMI audio to digital and L/R analog output

• Supports all HDMI audio formats pass-through

• HDR, Dolby Vision pass through

• Support smart EDID management(Auto/2CH/5.1CH/7.1CH selectable)

• Audio Return Channel (ARC) supported

• Allows four HDMI sources to be routed to a HDMI display

• Supports auto switching or manual switching mode

• Simple plug-and-play for easy connection - no set up/drivers/software required

• Built-in TMDS equalization and CDR(Clock Rate Recovery) for long HDMI cable transmission

• Supports High Definition resolutions up to 4K2K@60Hz(4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz

• Supports up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)

• Flexible control through on-panel buttons, IR remote control

Model name

5 Port HDR HDMI Audio Extractor

Input channel

HDMIx5, DCx1

Output channel

HDMIx1, Opticalx1, AUXx1

Video format

480P/720P/1080P/2160P@60/50/30/25/24(Support1080P@120)

Supports HDR and Dolby Vision

Deep color

8/10/12Bit@1080P, 8Bit@2160P

Audio format

Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM etc.

Transmission bandwidth

600MHz Max.

Transmission rate

18Gbps Max.

Input cable length

2160P/AWG 26 ≤5m;1080P/AWG 26 ≤10m

Output cable length

2160P/AWG 26 ≤5m;1080P/AWG 26 ≤12m

Power adapter specification

Input: AC 100~240V / Output: DC 5V/1A

Max working current

500mA

Working temperature range

-5 ~ +40℃

Working humidity range

5 to 85%RH(No Condensation)

Storage temperature

-15 to 55℃

Storage humidity

5 ~95%RH(No Condensation)

Size

159*64*22 (mm)

Weight

230g

Accessories

Manual, Power Adaptor, Remote Control





CLICK HERE TO SEE OTHER HDMI AUDIO EXTRACTORS IN OUR RANGE

12 Month Warranty

SKU AA6312
Barcode # 9351634026807
Brand Aus Electronics Direct
Shipping Weight 0.7400kg
Shipping Width 0.170m
Shipping Height 0.070m
Shipping Length 0.250m
Shipping Cubic 0.002975000m3
Unit Of Measure ea

5 Imput HDMI 2.0 4K @ 60Hz with Audio Extractor

By: on 10 March 2024
I found this switcher to be the best and easiest that I have ever used (I have had a few over the years) - Basically a true plug in and play unit which let me get rid of an audio switching box as well as two HDMI switching boxes along with a hell of a lot of associated cables and the frustration of sorting out what goes where. The only minor negative comment I have would be that the optical fibre audio output is on front of unit and when cable is plugged in is a bit unsightly . From what I understand you can use the ARC function to bypass using this port but I like keeping my audio going through as little processes as possible before it goes to the receiver (AMP) so I used two right angle optical adapters to make a u shaped bend to make it look a lot neater. ( Was very cheap and easy to do and did not affect audio quality as my receiver was still detecting digital audio signal and changing back to PCM signal when detected which shows me everything is working properly on my set up) I have only used the easiest set up that I could get away with and am very impressed with end result and would highly recommend this unit for anyone that does not want to spend weeks working out what goes where .
