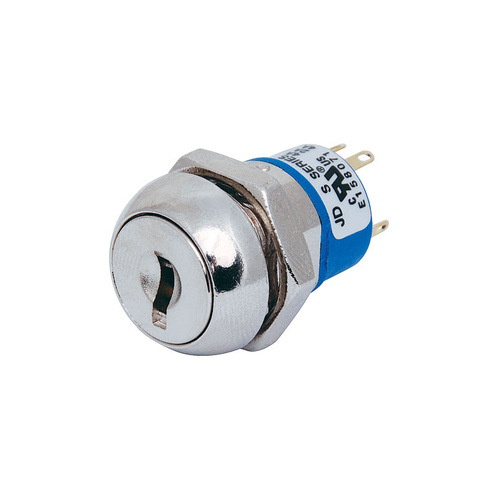

2 Position DPDT Spring Return 606 Key Keyswitch

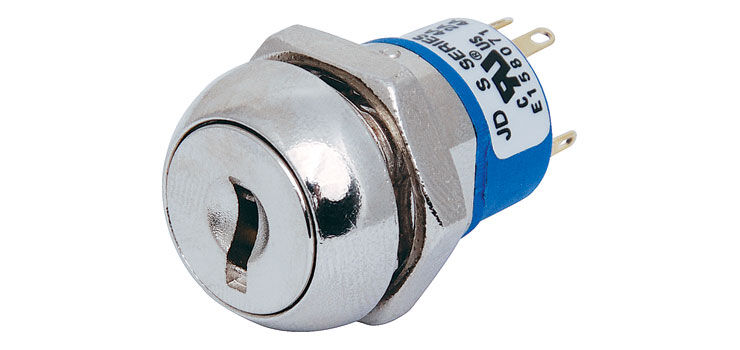

Panel Mount Key switch with 2 keys

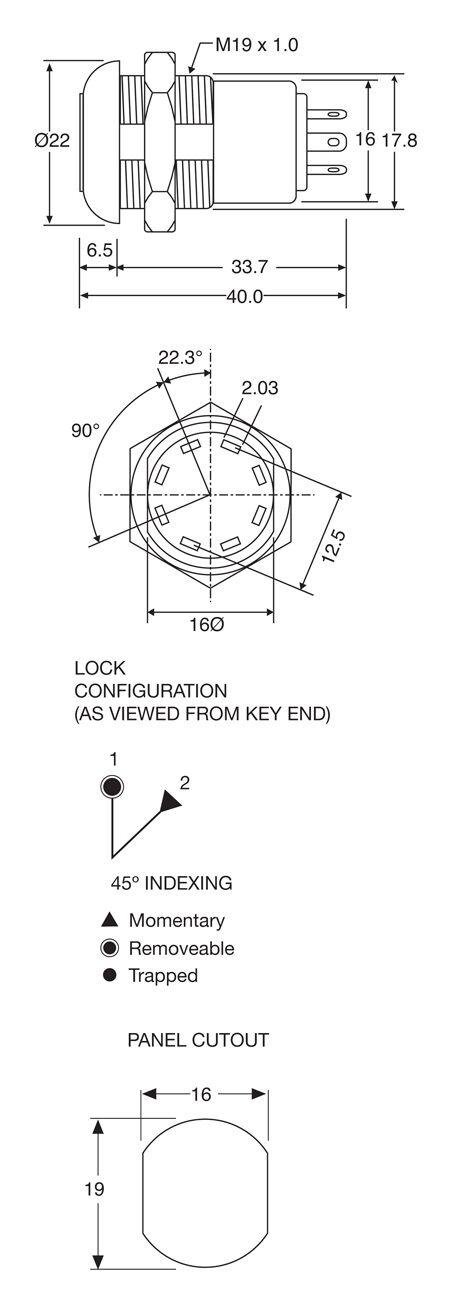

Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Rated 2A @ 250V AC.

Note: Key removable in left hand position 1 only.

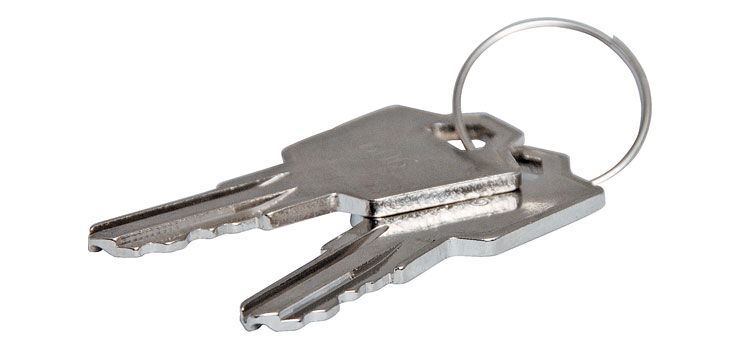

Supplied with two 606 keys



Connection Details
Pole 1 makes to:
Pos. 1 - 8, 1
Pos. 2 - 1, 2
Pole 2 makes to:
Pos. 1 - 4, 5
Pos. 2 - 5, 6

Specifications

• Electrical
• Contact Rating: 4A 125VAC/28VDC, 2A 250VAC
• Contact Resistance: Below 10 millionΩ
• Insulation Resistance: 1 Billion Ω Min.
• Dielectric Strength: 1000V RMS Min. sea level
• Electrical Life: 6000 make-and-break cycles at full load
•
• Materials
• Lock Housing: Zinc Alloy die-casted nickel Plated.
• Cylinder: 4 Disc Tumblers Constructed, Zinc Alloy die-casted nickel Plated.
• Keys: Brass, Original Colour or Nickel Plated.
• Contacts: Super Hard Copper Alloy, Silver Plated.
• Mounting Nut: Zinc Alloy Die Cast, Nickel Plated.

  *Specifications are subject to change without notice.
