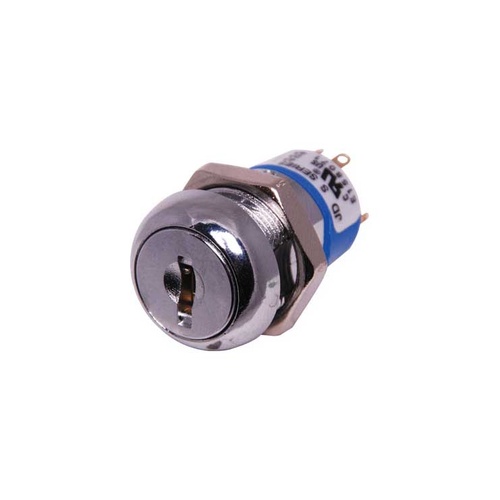

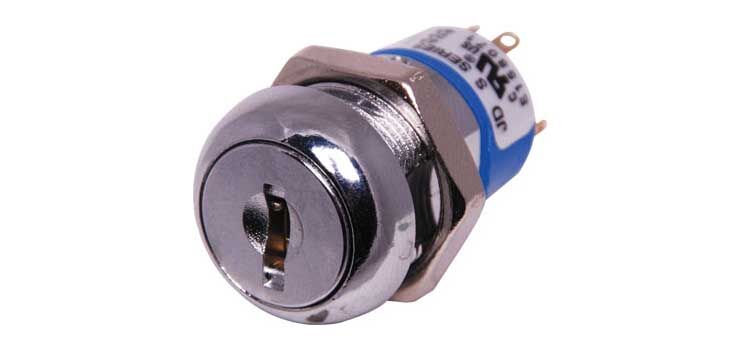

2 Position 003 Key DPDT Keyswitch

2 Position 003 Key DPDT Keyswitch

Panel Mount Key switch with 2 keys

SKU: AC8114

$24.95
RRP $49.95
In Stock
Buy In Bulk & Save!
Buy 4 to 10: Pay $23.70 ctn
Buy 11 to 20: Pay $22.52 ctn
Buy 21 to 100: Pay $20.26 ctn
Buy 101 to 1,000: Pay $18.23 ctn


Calculate Shipping


For Delivery Times and Policy: www.auselectronicsdirect.com.au/delivery/

Courier Service - $7.86
Tracked delivery service for Major Cities. Service provided by Aramex or CouriersPlease. Same Day dispatch is not available. Bulky orders may incur additional fees.
Australia Post Standard - $10.95
PO Box, Parcel locker and other Australia Post delivery services available. For Delivery times, please refer to our Delivery Times and Policy link. Same Day dispatch is not available.
Australia Post Express - $14.95
PO Box, Parcel locker and other Australia Post delivery services available. For Delivery times, please refer to our Delivery Times and Policy link. Same Day dispatch not available.
Pickup - $0.00
Pick up processing times generally 24-48 business hours. Following the order confirmation email, another email will be sent once ready for pick up. Showroom address: Unit 6, 14 Childs Rd. Chipping Norton NSW 2170 (Monday to Friday 9am to 5pm)

Description

2 Position 003 Key DPDT Keyswitch

Panel Mount Key switch with 2 keys

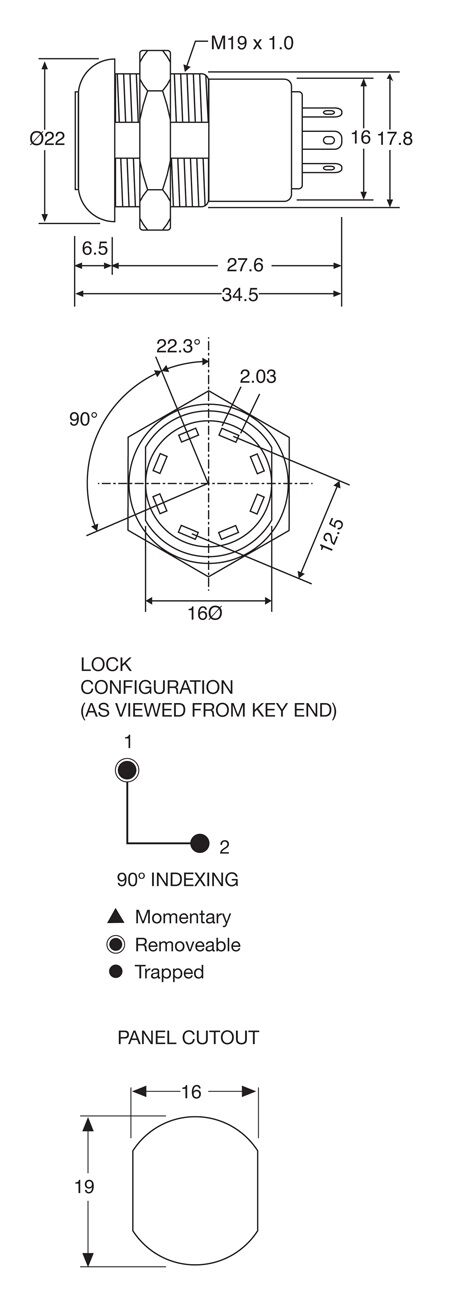

Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Rated 2A @ 250V AC.

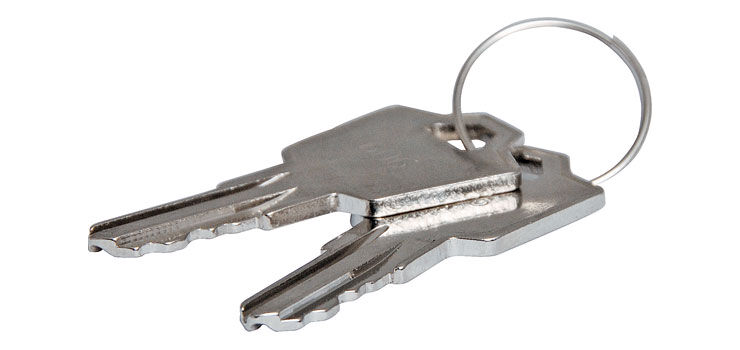

Supplied with two keys

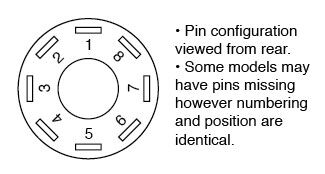

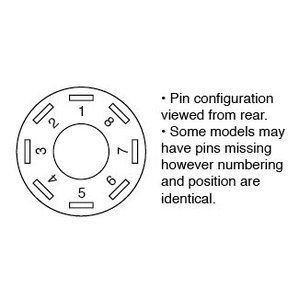

Connection Details
Pole 1 makes to:
Pos. 1 - 8, 1
Pos. 2 - 1, 3
Pole 2 makes to:
Pos. 1 - 4, 5
Pos. 2 - 5, 7





Specifications

SKU AC8114
Barcode # 9321758162125
Shipping Weight 0.1000kg
Shipping Width 0.100m
Shipping Height 0.030m
Shipping Length 0.100m
Shipping Cubic 0.000300000m3
Unit Of Measure ctn
