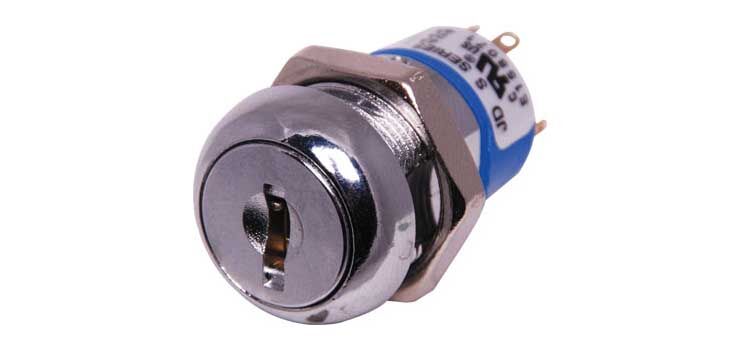

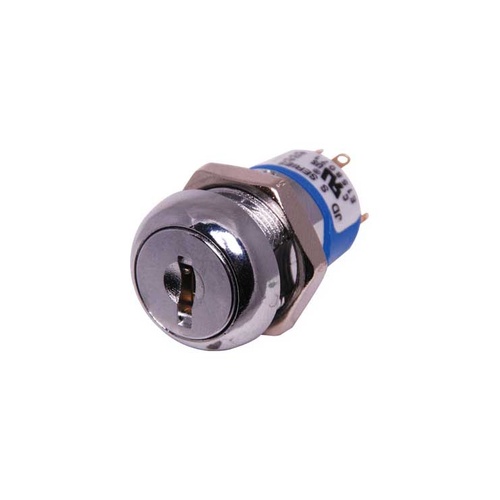

2 Position 003 Key DPDT Keyswitch
Panel Mount Key switch with 2 keys
SKU: AC8116
$24.95
RRP $49.95
In Stock
2 Position 003 Key DPDT Keyswitch
Panel Mount Key switch with 2 keys

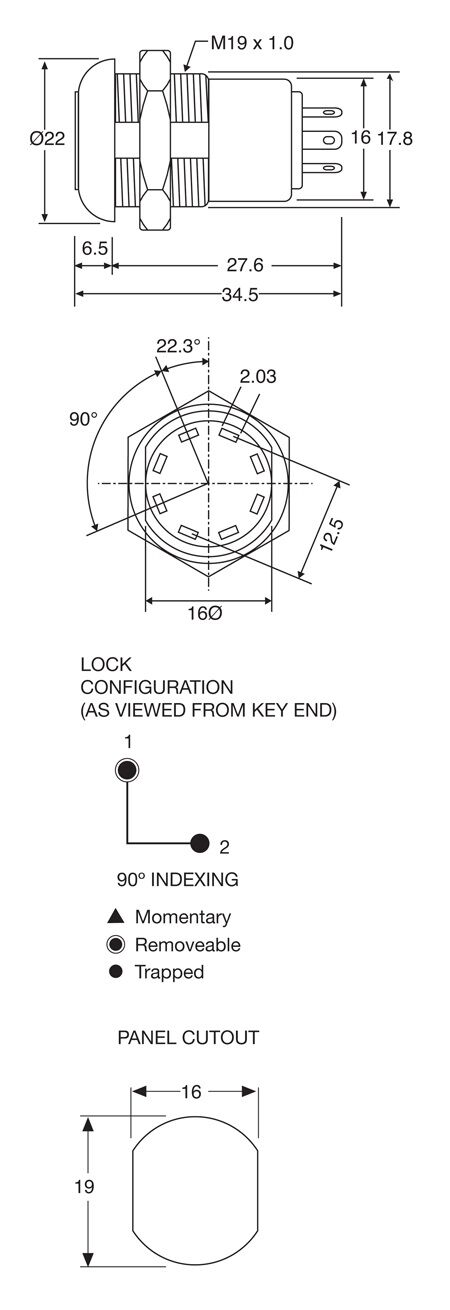

Panel hole 19mm, length 27.5mm from rear of front shroud, 33.6mm overall depth, 61mm depth with key inserted, including terminals. Overall diameter 22mm. Rated 2A @ 250V AC.

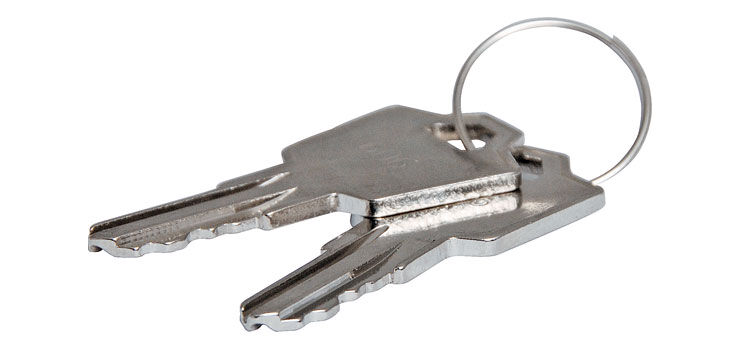

Supplied with two keys

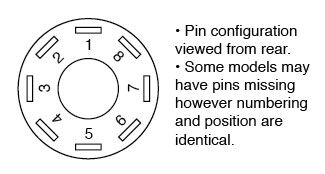

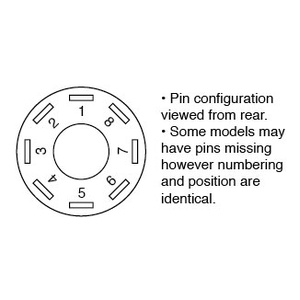

Connection Details
Pole 1 makes to:
Pos. 1 - 8, 1
Pos. 2 - 1, 3
Pole 2 makes to:
Pos. 1 - 4, 5
Pos. 2 - 5, 7
| SKU | AC8116 |
| Barcode # | 9321758162125 |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.030m |
| Shipping Length | 0.100m |
| Shipping Cubic | 0.000300000m3 |
| Unit Of Measure | ctn |
