12VDC 60A SPDT Automotive Relay

12V Automotive Relay

SKU: ER0054


$10.50
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $9.97
Buy 11 to 20: Pay $9.47
Buy 21 to 100: Pay $9.00




Calculate Shipping


For Delivery Times and Policy: www.auselectronicsdirect.com.au/delivery/


Regular Service - $0.00
FREE SHIPPING orders over $50. For Delivery times, please refer to our Delivery Times and Policy link. Same Day dispatch is not available.
Express Freight - $0.00
For Delivery times, please refer to our Delivery Times and Policy link. Same Day dispatch not available. Bulky orders may incur additional fees.
New Zealand Registered Post - $0.00

New Zealand Express Post - $0.00

Contactless Pickup - $0.00
Contactless Pickup available at our showroom: Unit 6, 14 Childs Rd. Chipping Norton NSW 2170 (Monday to Friday 9am to 5pm)

12VDC 60A SPDT Automotive Relay

12V Automotive Relay

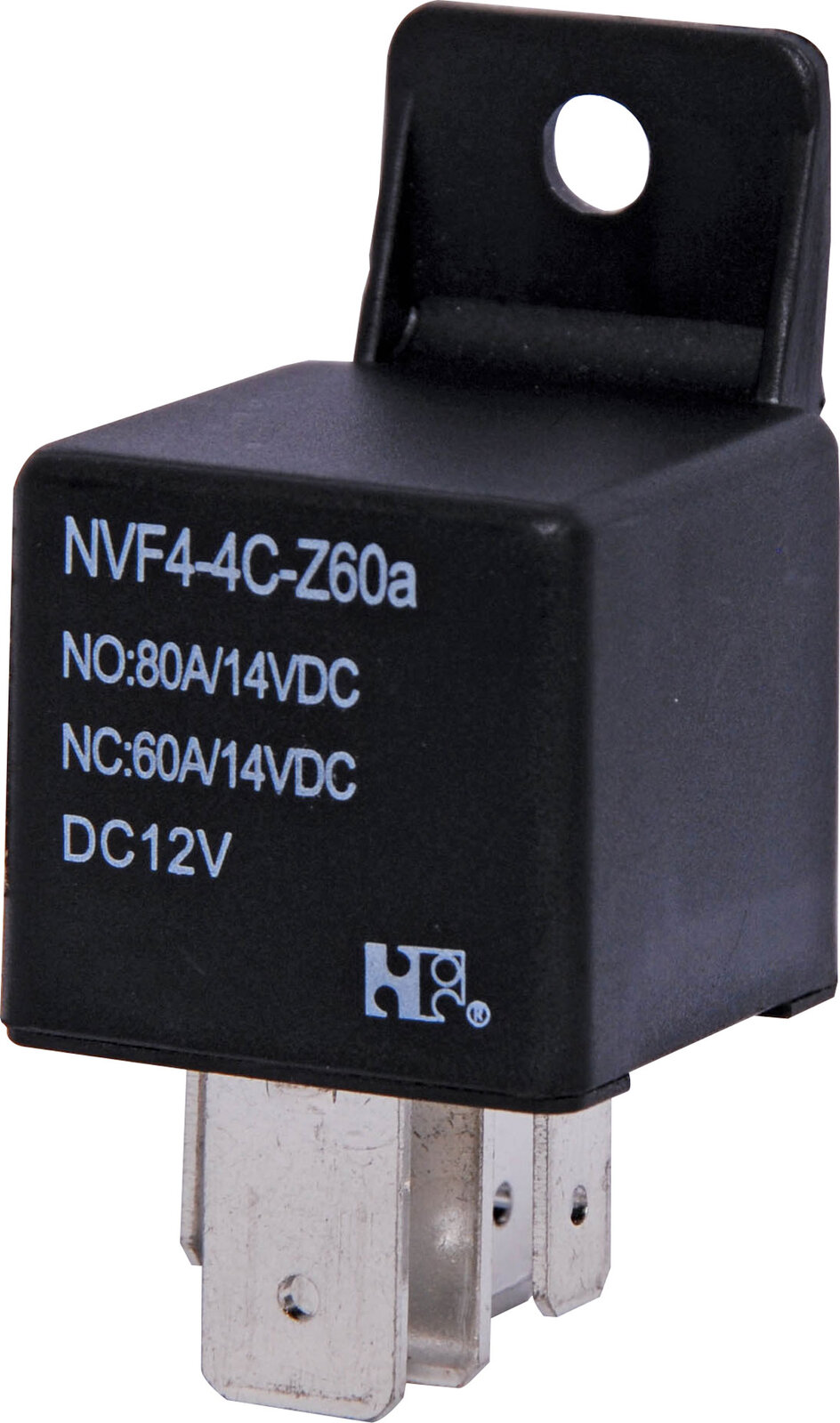

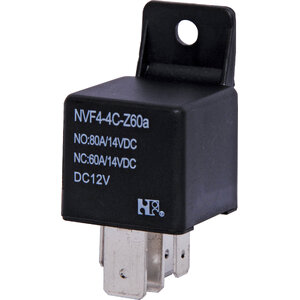

A 60A SPDT relay. Automotive type. 12V DC coil.
Suitable for automotive applications such as alarms, lights, etc.

  • Max Switching Voltage: 75V DC
  • Max Switching Current: 60A
  • Max VA (Watts): 980W
  • Contact Material: Silver tin dioxide
  • Coil Resistance: 80Ω
  • Max Coil Power: 1.8W
  • Insulation Resistance: >100MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 500V AC between open contacts
  • 500V AC between coil & contact
  • Electrical Life: 100,000 operations
  • Mechanical Life: 10 million operations
  • Dimensions: 29W x 29L x 26H mm

    *Specifications are subject to change without notice

SKU ER0054
Barcode # 9351634054541
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
