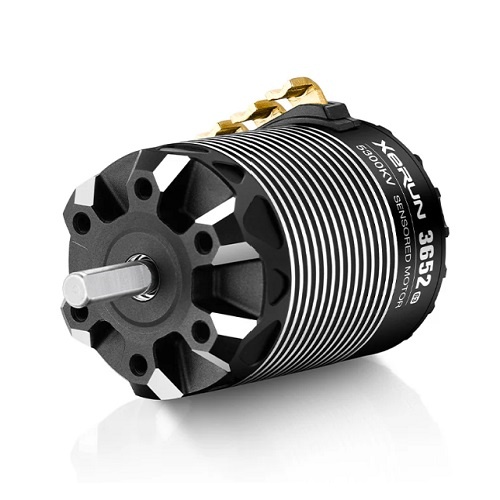

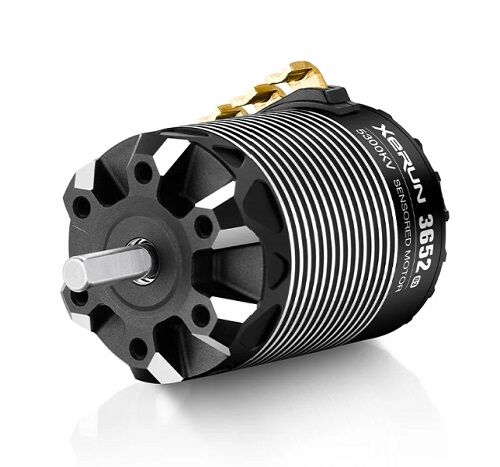

XERUN 3652SD 5300KV Black G3 Motor

Pair This XERUN Motor With Your ESC

SKU: TM0037


$164.95
RRP $329.90
In Stock




Calculate Shipping

XERUN 3652SD 5300KV Black G3 Motor

G3 Performance. G3 Power. Drag & Track Domination Starts Here.

Step into the next generation of elite RC motor technology with the XeRun G3 Series — now featuring up to 100% RPM gains and unmatched thermal and mechanical durability. Whether you're tearing up the drag strip or pushing lap records on-road, the 3652-5300KV G3 motor delivers a lethal combination of power, smoothness, and reliability.


Unleash Extreme Power Gains

  • Up to 100% More RPM: Compared to the previous G2 series, the G3 motor ramps up performance dramatically — especially with Turbo Timing activated at 24°.

  • Turbo-Triggered Boost: Massive surge in output after turbo kicks in, delivering explosive acceleration on demand.

  • Overall Power & Efficiency Improved: The G3 series offers a noticeable step up in both torque and thermal stability.

 Note: Actual speed increase may vary slightly due to KV-specific characteristics of different G3 models.


Advanced Sensor System = Pure Precision

  • Patented 'Error-Free' Hall Sensor: Features a high-speed, high-precision encoder that provides a clean, interference-free rotor position signal.

  • Sensored Operation You Can Trust: Perfect throttle response and consistent control at all times — no glitches, no guesswork.


Durability You Can Count On

  • 75,000 RPM Capable: Built to handle extreme RPMs, even under operating temps as high as 140°C (284°F).

  • 15% Increase in Rotor Durability: Engineered for longer life, even in punishing race conditions.

  • Excellent Dust Protection: Designed to thrive in off-road or dirty track environments, thanks to a protective endbell and sealed plugs.


Smart Features for Racers & Tuners

  • Dual Hall Sensor Ports: Flexible wiring options + dust-proof plug for unused ports = clean and reliable installations.

  • Two-Way Adjustable Timing (20–40°): Fine-tune power delivery for any race scenario — clockwise or counterclockwise.

  • Smooth, Cog-Free Operation: Low cogging torque and minimal pulsation ensure buttery-smooth throttle feel, especially at low speeds.


Built for Performance AND Maintenance

  • Modular Construction: Quick disassembly for cleaning and repair — keep your motor running like new.

  • Race-Grade Materials:

    • Gold-plated U-shaped copper solder tabs = ultra-low resistance & easy soldering

    • High-temp (200°C) enameled wire

    • High-performance iron core

    • Premium-grade international bearings


Ideal For:

  • RC Drag Racing (1/10 & 1/8 scale)

  • High-speed Track and On-Road Racing

  • Competitive Off-Road Setups


Tech Specs – XeRun 3652-5300KV G3 Example

  • KV Rating: 5300KV

  • Max RPM: 75,000

  • Turbo Timing: Up to 24°

  • Adjustable Mechanical Timing: 20°–40° (CW/CCW)

  • Max Operating Temp: 140°C (284°F)


Important Usage Notes

  • Do not operate the motor without a proper pinion installed.

  • Monitor temperature — stop use if it exceeds 100°C to avoid rotor demagnetization.

  • Ensure correct phase wiring (A-A, B-B, C-C).

  • Avoid exposure to water or conductive liquids.


Step Up to the G3 Advantage

Whether you're going for max speed, brutal launch power, or fine-tuned control, the XeRun G3 3652-5300KV is your ticket to the winner’s circle. Designed for racers. Built for victory.



Specifications

Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 4

Relevant Parameters
KV Rating: 5300KV
LiPo Cells: 2S LIPO
No-load Current(A): 7.5A

Size & Weight
O.D.(mm): 36.6
Length (mm): 53
Shaft Diameter (mm): 5
Weight (g): 194g
Front Bearing: D13*D5*T4
Rear Bearing: D11*D5*T5

Other Parameters
ESC: XERUN XR8 PRO G3
Vehicles: 1/10thShort course car (2WD),Buggy,Rally

3 Month Warranty

Type

  • Brushed/Brushless
  • Sensored/Sensorless
  • Waterproof
  • BL
  • SL
  • Waterproof (IP55)

Specifications

  • Cont./Peak Current
  • Input Voltage
  • BEC Output
  • 70A/200A
  • 2-4S Lipo
  • Switch mode 6V/7.4V/8.4V @5A

Wires & Connectors

  • Input Wires
  • Output Wires
  • Input Connectors
  • Output Connectors
  • Red-14AWG-100mmx1,Black-14AWG-100mmx1
  • Black-16AWG-80mmx3
  • No
  • 4.0mm Female plug

ESC Programing via

  • LED Program Box
  • LCD G2 Program Box
  • LCD PRO
  • OTA Programmer
  • Program Port
  • Supported
  • Supported
  • Supported
  • Supported
  • Throttle wires & yellow wire

Data Recording

  • Extreme value
  • Real-time Data
  • Historical data (Graph)
  • Supported
  • Supported
  • Supported

Firmware

  • Firmware Upgrade
  • Supported

Size & Weight

  • Size
  • Weight
  • 38.5x30x8.4mm
  • 35g(Without water cooling pipe )

Applications

  • Applicable Boat
  • Mini Mono,Mini ECO, Mini Hydro competition
SKU TM0037
Barcode # 9351634089147
Brand Hobbywing
Shipping Weight 0.0194kg
Shipping Width 0.053m
Shipping Height 0.084m
Shipping Length 0.030m
Shipping Cubic 0.000132300m3
Unit Of Measure ea
