Xerun 3652SD Sensored G2 Motor 5100KV

Pair This XERUN Motor With Your ESC

SKU: TM0016


$154.95
RRP $309.90
In Stock




Calculate Shipping

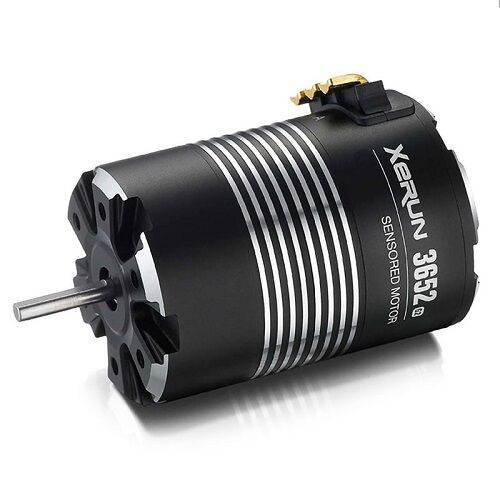

Xerun 3652SD Sensored G2 Motor 5100KV

High-RPM 4-Pole Power with Turbo Timing | 1/10 Scale Racing Motor


Next-Gen Power for Serious Racers

The XeRun 3652 SD G2 is the first 4-pole motor equipped with a built-in smart chip, designed to deliver elite-level performance when paired with Hobbywing’s XeRun XR8 series ESCs. This advanced pairing enables true full-time sensored operation, smoother throttle control, and explosive acceleration that sets you apart on the track.

Whether you’re racing short course trucks or high-speed buggies, this motor offers unmatched control, consistency, and top-end power.


Key Features

Full-Time Sensored Operation (When Paired with XR8 ESCs)

  • Smart chip allows ESC-to-motor recognition

  • Enables constant sensored mode for smooth, precise throttle response across the power band

  • Compatible with other ESCs (reverts to hybrid mode if not paired with XR8)

Turbo Timing Technology

  • Unlock maximum power when used with the XeRun XR8 series ESCs

  • Widely used in 1/10 scale racing to gain an edge in acceleration and top speed

  • Fully programmable to suit track conditions and driving style

Hobbywing’s Advanced Hall Sensing System

  • Proprietary Hall encoder provides interference-free rotor position data

  • Guarantees clean signals for accurate timing and operation

  • Enhances reliability even in harsh racing environments

4-Pole / 8-Magnet "Staggered Pole" Rotor

  • Reduces cogging and torque ripple

  • Delivers buttery-smooth cornering and linear throttle control

  • Low cogging torque enhances drivability in tight technical layouts

Premium Build Quality

  • Double insulated windings (200°C-rated)

  • Japanese NMB bearings for smooth rotation and durability

  • Super-thin silicon steel laminations reduce heat and power loss

  • Lightweight hub-style end bell design improves cooling and reduces mass


Additional Features:

  • Bi-directional adjustable mechanical timing (20–40°)

  • Integrated turbine cooling design for improved thermal performance

  • Designed for optimal performance with the XeRun XR8 SCT and XR8 Pro ESCs


Technical Specifications

Specification Value
Scale 1/10th
Motor Type Brushless (Sensored)
Poles 4
KV Rating 5100KV
Voltage Input 2S LiPo
No-load Current 4.7A
Resistance 3.5 mΩ
Timing Adjustable (20–40°)
Motor Diameter 36mm
Motor Length 52.5mm
Shaft Diameter 5mm
Shaft Length 15mm
Weight 192g

Ideal For:

  • 1/10 scale Short Course Trucks, Touring Cars, 4WD Buggies, and other high-performance platforms

  • Racers who demand maximum torque, RPM, and programmable control

  • Pairing with Hobbywing XeRun XR8 ESCs for complete performance unlock


What's in the Box:

  • 1x Hobbywing XeRun 3652 SD G2 Motor (5100KV)

  • Sensor cable

  • Instruction manual


Pair It With:

  • ✅ Hobbywing XeRun XR8 SCT or XR8 Pro ESC
    (for full-time sensored mode and Turbo Timing functionality)


Unleash the Full Potential of Your 1/10 Scale Rig

With its intelligent design, premium materials, and full sensored capability, the XeRun 3652 G2 5100KV delivers a competitive edge that’s felt with every lap. Whether you're dominating race day or perfecting your setup at the track, this motor provides power you can trust and control you can feel.

3 Month Warranty

Type

  • Brushed/Brushless
  • Sensored/Sensorless
  • Waterproof
  • BL
  • SL
  • Waterproof (IP55)

Specifications

  • Cont./Peak Current
  • Input Voltage
  • BEC Output
  • 70A/200A
  • 2-4S Lipo
  • Switch mode 6V/7.4V/8.4V @5A

Wires & Connectors

  • Input Wires
  • Output Wires
  • Input Connectors
  • Output Connectors
  • Red-14AWG-100mmx1,Black-14AWG-100mmx1
  • Black-16AWG-80mmx3
  • No
  • 4.0mm Female plug

ESC Programing via

  • LED Program Box
  • LCD G2 Program Box
  • LCD PRO
  • OTA Programmer
  • Program Port
  • Supported
  • Supported
  • Supported
  • Supported
  • Throttle wires & yellow wire

Data Recording

  • Extreme value
  • Real-time Data
  • Historical data (Graph)
  • Supported
  • Supported
  • Supported

Firmware

  • Firmware Upgrade
  • Supported

Size & Weight

  • Size
  • Weight
  • 38.5x30x8.4mm
  • 35g(Without water cooling pipe )

Applications

  • Applicable Boat
  • Mini Mono,Mini ECO, Mini Hydro competition
SKU TM0016
Barcode # 9351634089024
Brand Hobbywing
Shipping Weight 0.0192kg
Shipping Width 0.053m
Shipping Height 0.084m
Shipping Length 0.030m
Shipping Cubic 0.000132300m3
Unit Of Measure ea
