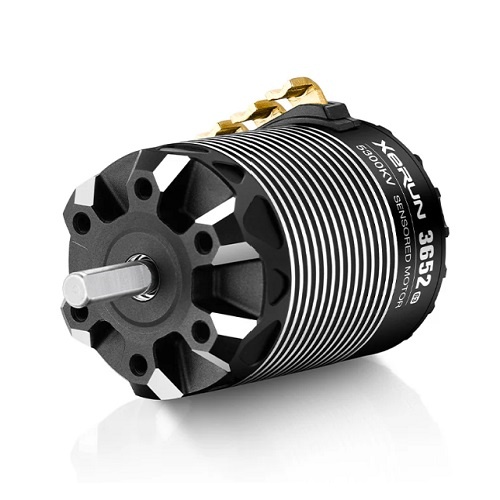

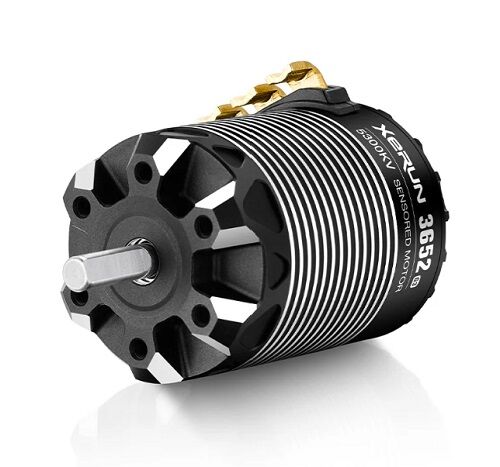

XERUN 3652SD 4500KV Black G3 Motor
Pair This XERUN Motor With Your ESC
SKU: TM0035
XERUN 3652SD 4500KV Black G3 Motor
G3 Performance. G3 Power. Drag & Track Domination Starts Here.
Step into the next generation of elite RC motor technology with the XeRun G3 Series — now featuring up to 100% RPM gains and unmatched thermal and mechanical durability. Whether you're tearing up the drag strip or pushing lap records on-road, the 3652-4500KV G3 motor delivers a lethal combination of power, smoothness, and reliability.
Unleash Extreme Power Gains
-
Up to 100% More RPM: Compared to the previous G2 series, the G3 motor ramps up performance dramatically — especially with Turbo Timing activated at 24°.
-
Turbo-Triggered Boost: Massive surge in output after turbo kicks in, delivering explosive acceleration on demand.
-
Overall Power & Efficiency Improved: The G3 series offers a noticeable step up in both torque and thermal stability.
Note: Actual speed increase may vary slightly due to KV-specific characteristics of different G3 models.
Advanced Sensor System = Pure Precision
-
Patented 'Error-Free' Hall Sensor: Features a high-speed, high-precision encoder that provides a clean, interference-free rotor position signal.
-
Sensored Operation You Can Trust: Perfect throttle response and consistent control at all times — no glitches, no guesswork.
Durability You Can Count On
-
75,000 RPM Capable: Built to handle extreme RPMs, even under operating temps as high as 140°C (284°F).
-
15% Increase in Rotor Durability: Engineered for longer life, even in punishing race conditions.
-
Excellent Dust Protection: Designed to thrive in off-road or dirty track environments, thanks to a protective endbell and sealed plugs.
Smart Features for Racers & Tuners
-
Dual Hall Sensor Ports: Flexible wiring options + dust-proof plug for unused ports = clean and reliable installations.
-
Two-Way Adjustable Timing (20–40°): Fine-tune power delivery for any race scenario — clockwise or counterclockwise.
-
Smooth, Cog-Free Operation: Low cogging torque and minimal pulsation ensure buttery-smooth throttle feel, especially at low speeds.
Built for Performance AND Maintenance
-
Modular Construction: Quick disassembly for cleaning and repair — keep your motor running like new.
-
Race-Grade Materials:
-
Gold-plated U-shaped copper solder tabs = ultra-low resistance & easy soldering
-
High-temp (200°C) enameled wire
-
High-performance iron core
-
Premium-grade international bearings
-
Ideal For:
-
RC Drag Racing (1/10 & 1/8 scale)
-
High-speed Track and On-Road Racing
-
Competitive Off-Road Setups
Tech Specs – XeRun 3652-4500KV G3 Example
-
KV Rating: 4500KV
-
Max RPM: 75,000
-
Turbo Timing: Up to 24°
-
Adjustable Mechanical Timing: 20°–40° (CW/CCW)
-
Max Operating Temp: 140°C (284°F)
Important Usage Notes
-
Do not operate the motor without a proper pinion installed.
-
Monitor temperature — stop use if it exceeds 100°C to avoid rotor demagnetization.
-
Ensure correct phase wiring (A-A, B-B, C-C).
-
Avoid exposure to water or conductive liquids.
Step Up to the G3 Advantage
Whether you're going for max speed, brutal launch power, or fine-tuned control, the XeRun G3 3652-4500KV is your ticket to the winner’s circle. Designed for racers. Built for victory.
Specifications
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 4
Relevant Parameters
KV Rating: 4500KV
LiPo Cells: 2S LIPO
No-load Current(A): 6.1A
Size & Weight
O.D.(mm): 36.6
Length (mm): 53
Shaft Diameter (mm): 5
Weight (g): 189g
Front Bearing: D13*D5*T4
Rear Bearing: D11*D5*T5
Other Parameters
ESC: XERUN XR8 PRO G3
Vehicles: 1/10thShort course car (2WD),Buggy,Rally
3 Month Warranty
Type
-
- Brushed/Brushless
- Sensored/Sensorless
- Waterproof
-
- BL
- SL
- Waterproof (IP55)
Specifications
-
- Cont./Peak Current
- Input Voltage
- BEC Output
-
- 70A/200A
- 2-4S Lipo
- Switch mode 6V/7.4V/8.4V @5A
Wires & Connectors
-
- Input Wires
- Output Wires
- Input Connectors
- Output Connectors
-
- Red-14AWG-100mmx1,Black-14AWG-100mmx1
- Black-16AWG-80mmx3
- No
- 4.0mm Female plug
ESC Programing via
-
- LED Program Box
- LCD G2 Program Box
- LCD PRO
- OTA Programmer
- Program Port
-
- Supported
- Supported
- Supported
- Supported
- Throttle wires & yellow wire
Data Recording
-
- Extreme value
- Real-time Data
- Historical data (Graph)
-
- Supported
- Supported
- Supported
Firmware
-
- Firmware Upgrade
-
- Supported
Size & Weight
-
- Size
- Weight
-
- 38.5x30x8.4mm
- 35g(Without water cooling pipe )
Applications
-
- Applicable Boat
-
- Mini Mono,Mini ECO, Mini Hydro competition
SKU | TM0035 |
Barcode # | 9351634089130 |
Brand | Hobbywing |
Shipping Weight | 0.0189kg |
Shipping Width | 0.053m |
Shipping Height | 0.084m |
Shipping Length | 0.030m |
Shipping Cubic | 0.000132300m3 |
Unit Of Measure | ea |
