Uno CNC Shield Arduino Project Kit

Build a CNC Router or Milling Machine

SKU: TA0256


$49.95
RRP $99.00
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $47.45 ea
Buy 11 to 20: Pay $45.07 ea
Buy 21 to 100: Pay $42.82 ea




Calculate Shipping

Uno CNC Shield Arduino Project Kit

Build a CNC Router or Milling Machine

This Arduino Uno based kit allows you to build a CNC Router or a CNC Milling Machine.

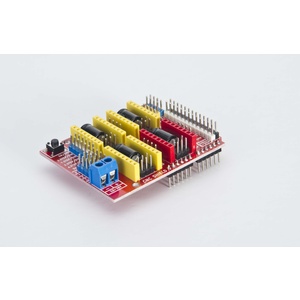

CNC Shield Board:

  • Latest Arduino CNC Shield Version 3.0
  • GRBL 0.8 compatible. (Open source firmware that runs on  an Arduino UNO that turns G-code commands into stepper  signals)
  • PWM Spindle and direction pins
  • 4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a  full 4th axis with custom firmware using pins D12 and  D13)
  • Coolant enable
  • Uses removable A4988 or DRV8825 compatible stepper  drivers
  • Compact design.
  • Stepper Motors can be connected with 4 pin molex  connectors or soldered in place.
  • Runs on  12-36V DC. (At the moment only the DRV8825 drivers can  handle up to 36V so  please consider the operation voltage when powering the  board.)
  • Please note that this is an unassembled kit and Basic soldering skills are needed

Arduino UNO R3 Board:

  • MCU: ATmega328

  • USB interface: ATmega16U2

  • Operating voltage: 5V

  • Digital I/O pins: 14 (including 6  with PWM capability)

  • Analog input pins: 6

  • I-I/O pin output current: 40mA max

  • 3.3V output current: 150mA max

  • Flash memory: 32 kB (0.5kB used by  bootloader - included)

  • Static RAM (SRAM): 2 kB

  • EEPROM: 1 kB

  • Clock speed: 16MHz

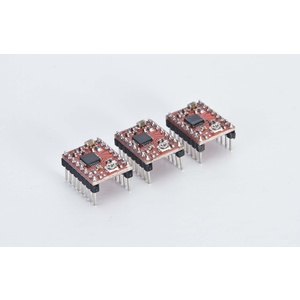

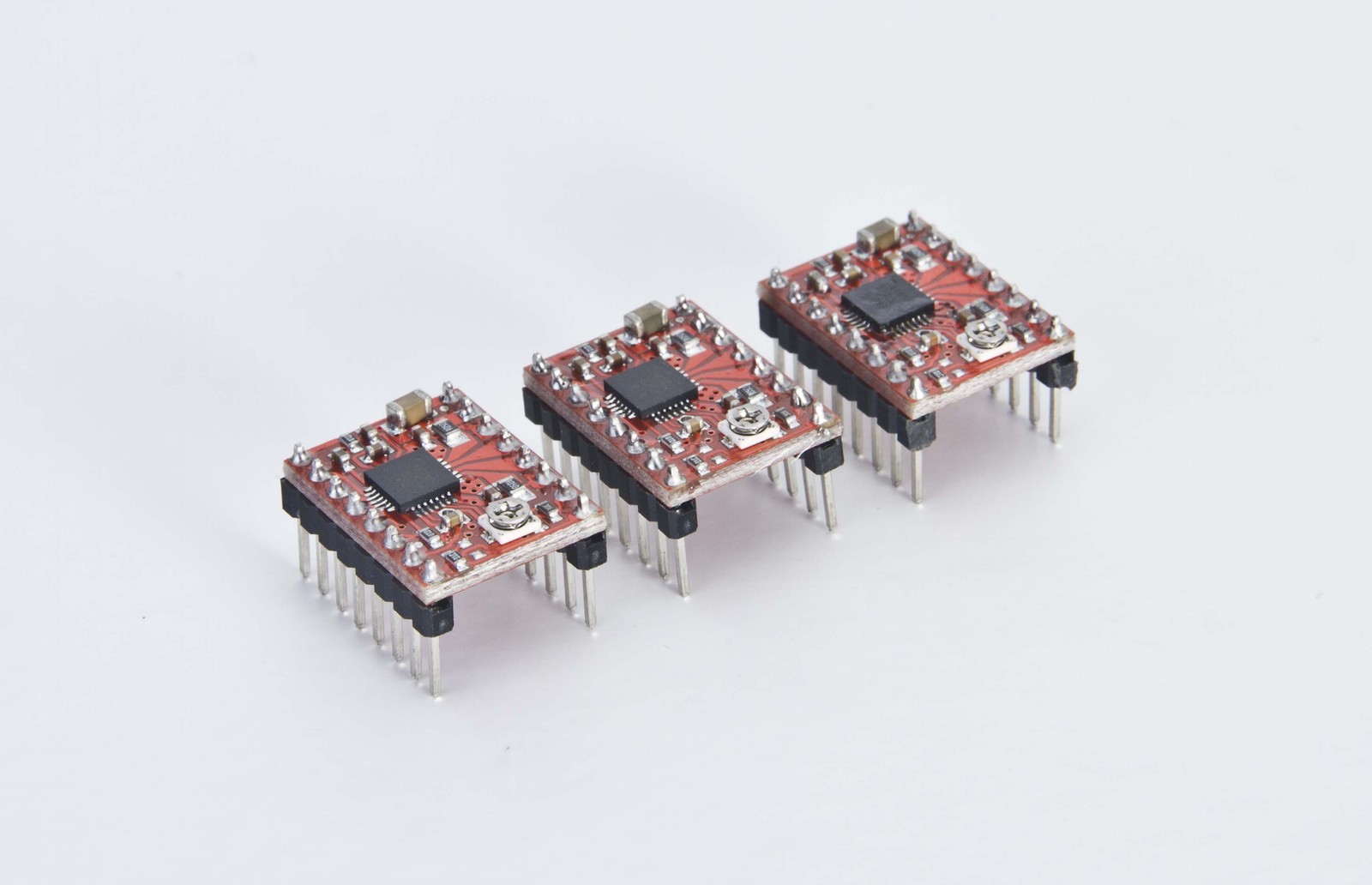

A4988 Stepper Motor Driver:

  • A4988 Stepper Motor Driver Board is a  breakout board for Allegro’s A4988 DMOS Micro stepping  Driver with Translator and Overcurrent Protection;  please read the A4988 datasheet carefully before using  this product.

  • Low RDS (On) Output

  • Automatic current decay mode  detection / selection

  • Mix with slow current decay modes

  • Synchronous rectification for low  power dissipation

  • Internal UVLO

  • Crossover-current protection

  • 3.3 and 5 V compatible logic supply

  • Thermal shutdown circuitry

  • Ground fault protection

  • Load short-circuit protection

  • Five selectable step modes: full,  1/2, 1/4, 1/8 and 1/16
