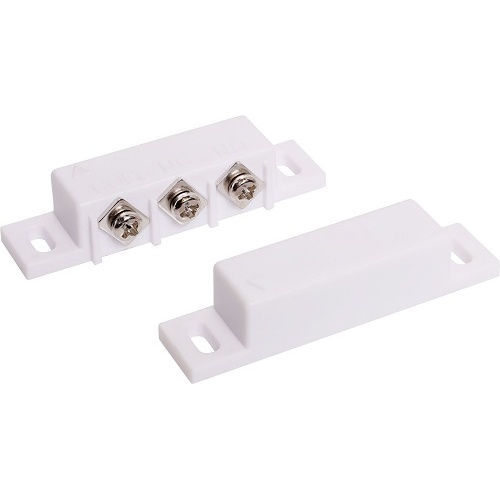

SPDT Surface Mount Magnetic Reed Switch

Alarm Accessories for Home Security!

A small magnetic reed switch designed for surface mounting.

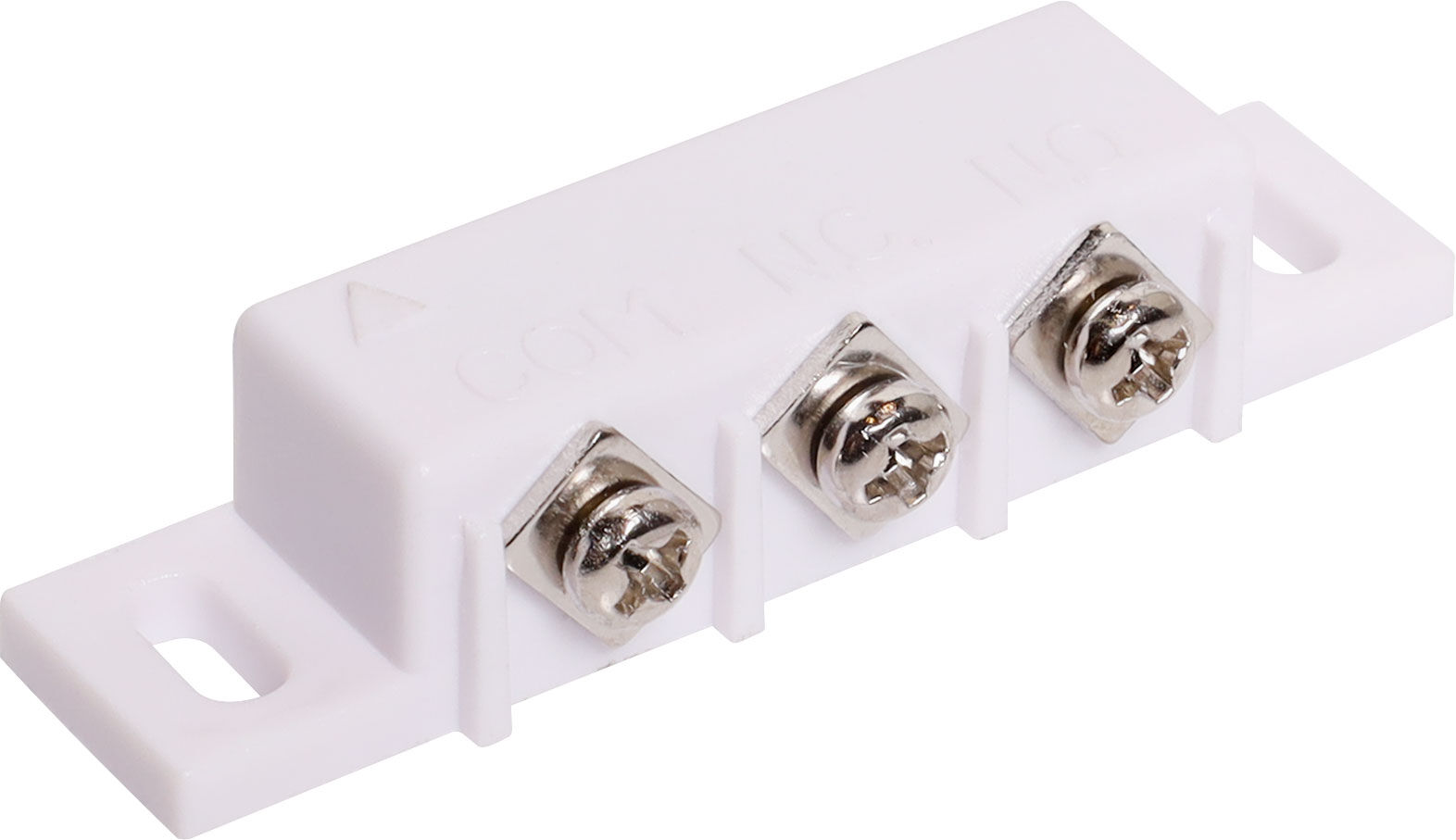

Fitted with screw terminals. SPDT for N.O. and N.C. applications.

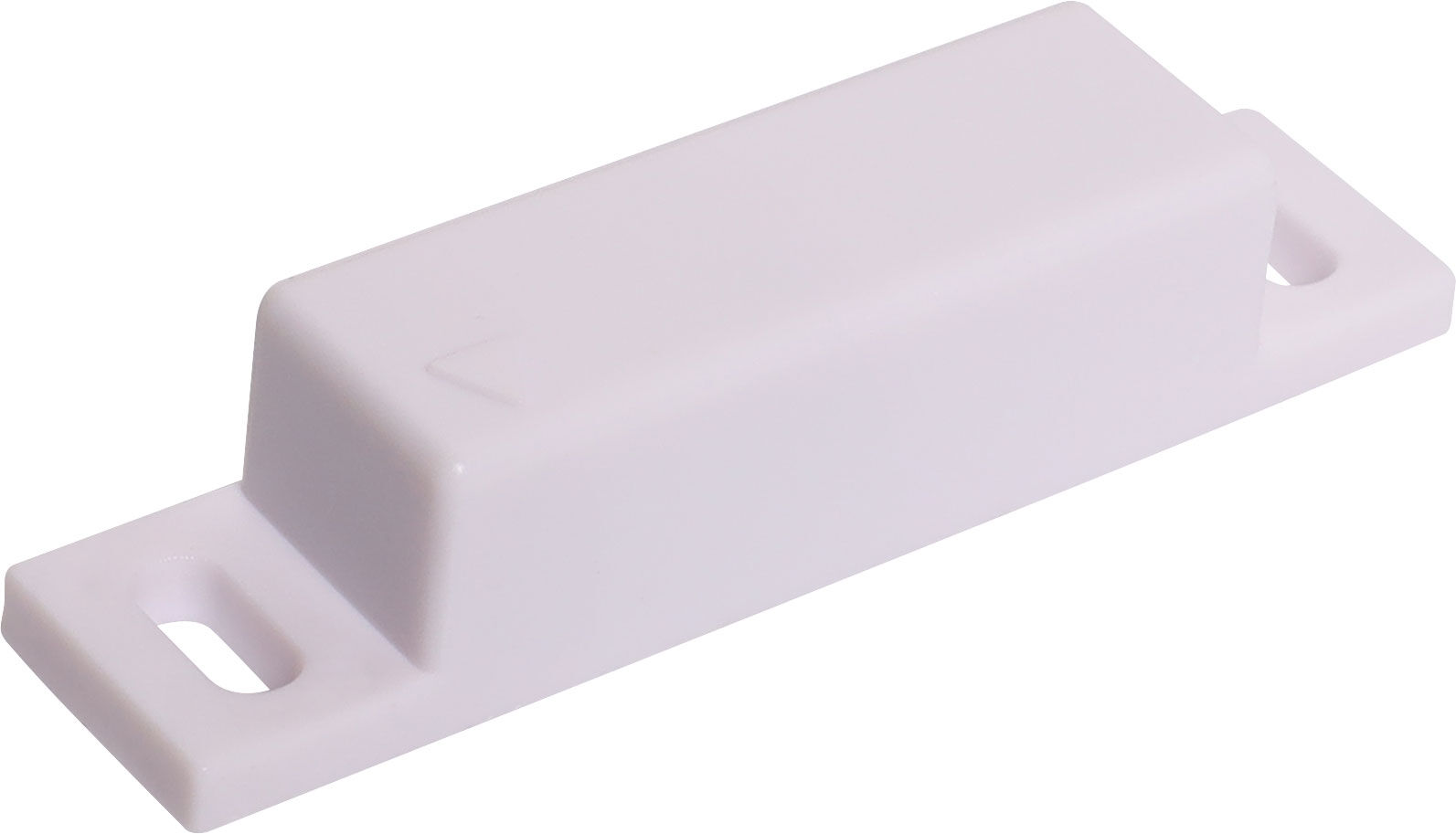

Includes matching magnet. Approx. 55 x 12 x 11mm size.

Specifications:

General:

• Dimensions: 55 x 12 x 11mm
• Material: ABS
• Colour: White
• Sensing Gap: 15-25mm
• Output: COM (NO & NC)
• Current/Voltage/Power: 0.2A/30V/3W
• Installation: Screw mount
• Connection: Terminals block wiring

Parameters:

• Contact from: Form C
• Voltage (V-max): 30V
• Current (V-max): 0.2A
• Rating (V-max): 3A
• Contact Resistance (max): 100mΩ
• Operate time (max): 0.5ms
• Operating Frequency (max): 400Hz
• Pull in Value: 08-35 AT
• Contact capacitance (max): 0.5pF
