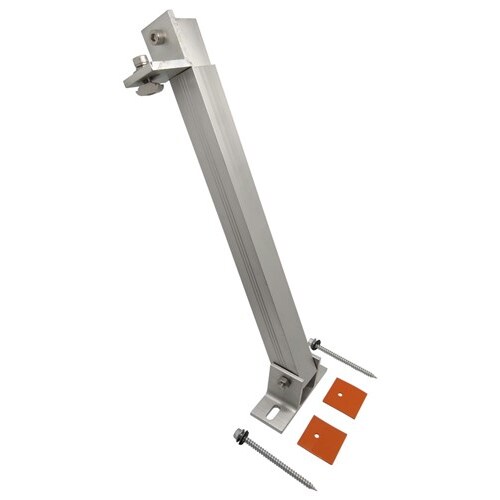

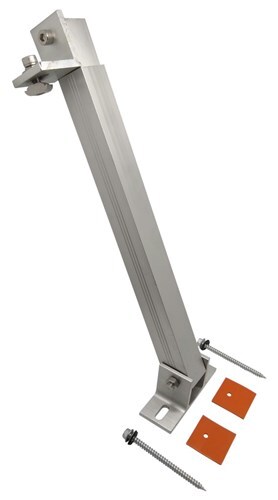

Solar Panel Mounting Back Leg 15-30 Degrees

Roof Mounting Solar Panel Mounting Bracket

SKU: SP0512

RRP $74.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $33.26 ea
Buy 11 to 20: Pay $29.93 ea
Buy 21 to 100: Pay $26.94 ea

Calculate Shipping

Solar Panel Mounting Back Leg 15-30 Degrees

Roof Mounting Solar Panel Mounting Bracket

Sold individually, 2 rails required for each row of solar panels

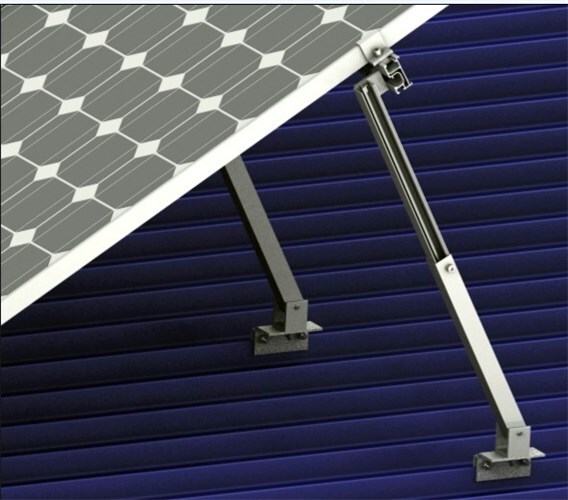

A universal and code compliant mounting system for attaching solar panels to the roof of your property. Designed to be used with either tiled or tin roofs, with any slope from 0-60° (either flat or pitched), and fully cyclone rated even for wind region D. The easy insertion modules mean that you don't have to slide each attachment along the rail to get it in place, they slot in quite easily at the very spot you want to attach them. For use with 35mm thick modules, a full range of components are available.


• Cyclone proof to Wind Region D (installation guide must be strictly adhered to)
• Vertical or horizontal panel mounting
• Suits any solar panel width, but optimised for 800-825mm width
• Suitable for aluminium framed panels
• 10 year materials warranty
• AS/NZS 1170 approved
• Roof slope: up to 60°
• Wind load: 80m/s
• Snow load: 1.4kNm^2



Packaged Volume : 23.26l
Packaged Weight : 7.59kg
Packaged Length : 51.8cm
Packaged Width : 21.8cm
Packaged Height : 20.6cm
SKU SP0512
Brand Aus Electronics Direct
Shipping Weight 0.6400kg
Shipping Width 0.250m
Shipping Height 0.200m
Shipping Length 0.200m
Shipping Cubic 0.010000000m3
Unit Of Measure ea
