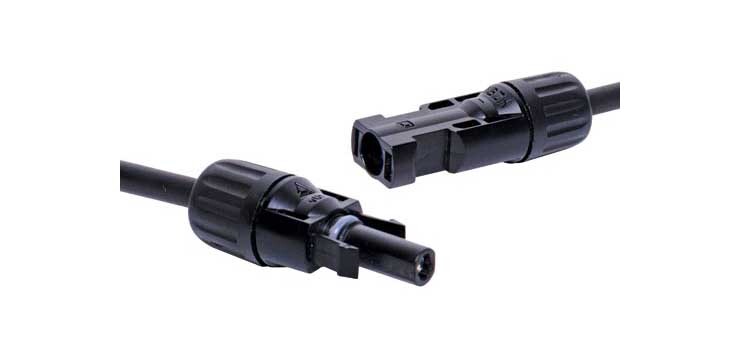

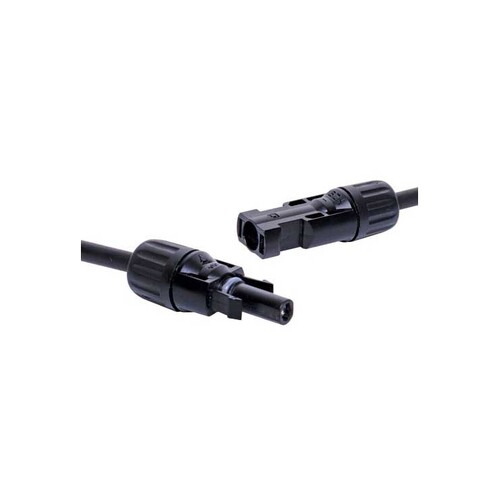

5m Solar MC4 Style Male To Female Lead

Solar MC4 Style Male To Female Cable - 5m

Water & dust proof - IP67 Rated.

This lead can be used for connections in photovoltaic solar panel arrays. The fully sealed design is suitable for use in exposed installations.

Specifications

• Rated Current： 30A
• Rated Voltage： 1000V DC (TUV) / 600V DC（UL）
• Test Voltage: 6KV(50Hz,1min)
• Contact resistance of blug connectors: ≤0.5mΩ
• Safety Class： Class Ⅱ
• Protection Degree,mated： IP67
• Protection Dearee,Unmated IP2X
• Wire Size Range： 4-6mm2 (TUV) / 12AWG（UL）
• Flame Class： UL94-V0(TUV) /5VA（UL）
• Insulation Material： PC&PPO
• Temperature Range： -40°C...+85°C (TUV)/ -40°C...+90°C (UL)
• Certification： TUV & UL

  *Specifications are subject to change without notice.
