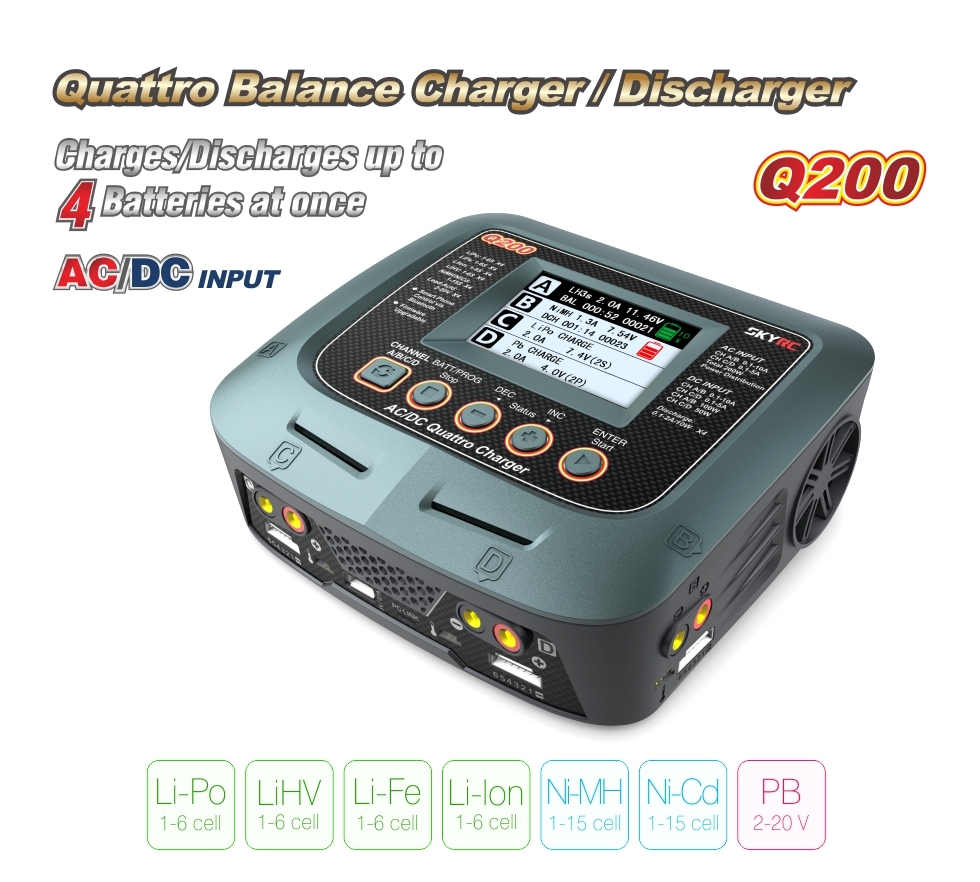

SkyRC Q200 AC/DC Multi-chemistry 4 x Battery Balance Charger

SkyRC Q200 charge 4 Li-Po Battery packs at the same time

SKU: PS1188


$289.00
RRP $399.00
Sold Out

Buy In Bulk & Save!
Buy 4 to 10: Pay $274.55 ea
Buy 11 to 20: Pay $247.09 ea
Buy 21 to 100: Pay $222.38 ea




Calculate Shipping

SkyRC Q200 AC/DC Multi-chemistry 4 x Battery Balance Charger

SkyRC Q200 charge 4 Li-Po Battery packs at the same time

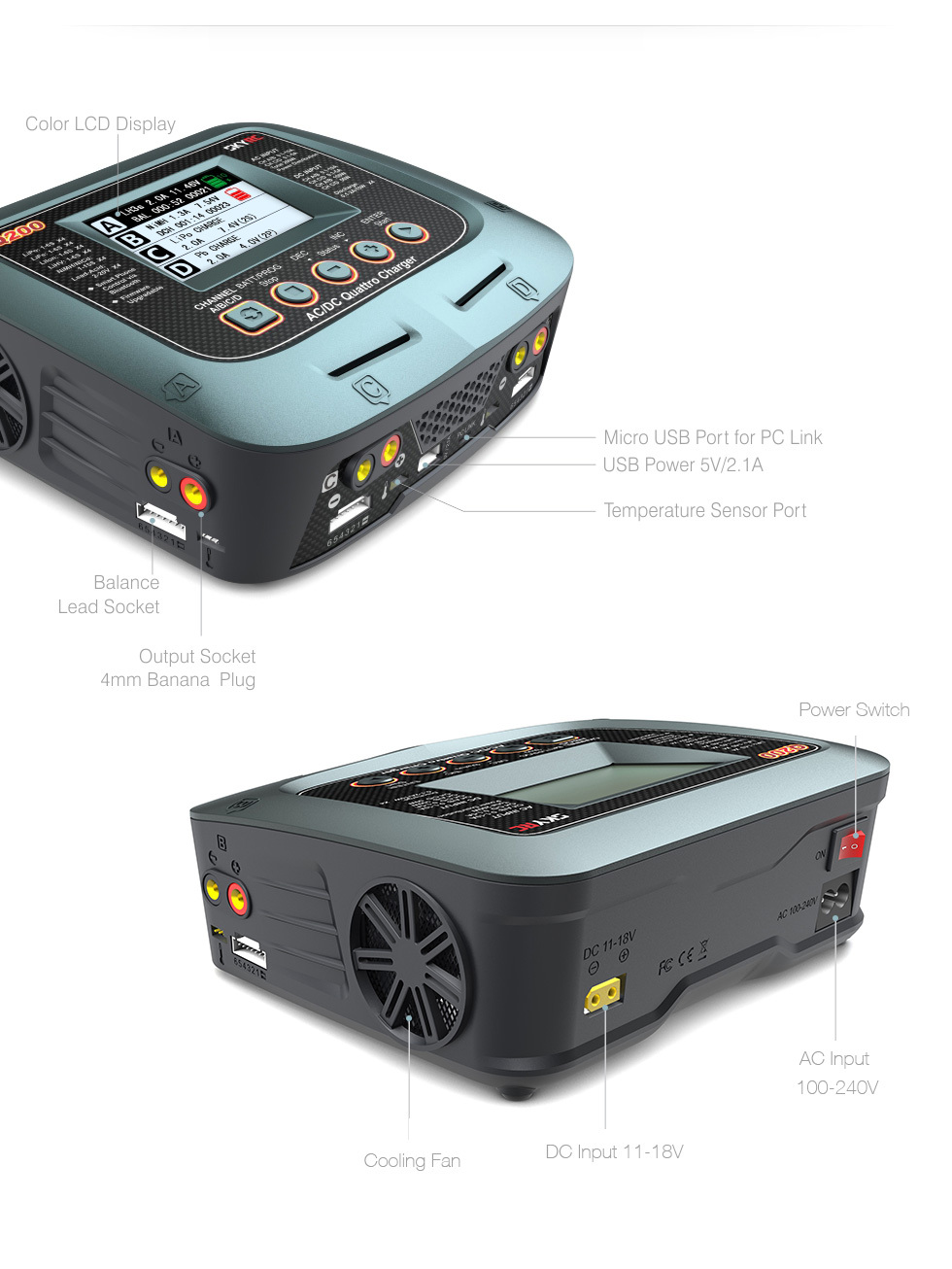

SkyRC Q200 is a Quad-channel charger with 4 independent circuits, which can charge four different kinds of batteries simultaneously. The charger adopts a 480×320 color LCD display, and paired channels (A&C or B&D) support power distribution in AC mode. Moreover, users could either connect it to PC or mobile device to further expand their using experience. Firmware upgrade is available via PC software interface.

SCAN TO GO
A very unique feature of Q200 is SCAN TO GO (automatically charging system). As the range of battery types and capacity becomes more and more, each battery requires its own dedicated charging process. It is easy to set up the charger incorrectly for a specific type of battery, resulting damage the battery or even cause accident.
The revolutionary SCAN TO GO provides a solution to this problem by allowing the user to assign a QR Code which contains all the relevant data for the battery for charging or discharging. The user can create a unique QR Code by using “SkyCharger” apps. Print it and paste it on the battery.
Using your smart phone and launch “SkyCharger” app. Since all the essential information is stored in the QR Code. All you need to do is press the Scan button, and the charge or discharge process will start automatically.
POWER DISTRIBUTION
Q200 supports power distribution in AC mode. For example, Channel B is 79W, then Channel D will be 21W, but total power will remain 100W. Channel A and C works the same way.
Li-HV Mode
Q200 supports power distribution in AC mode. For example, Channel B is 79W, then Channel D will be 21W, but total power will remain 100W. Channel A and C works the same way.
Voltage Calibration
During the manufacturing process every Q200 production unit gets tested and calibrated after highest factory standards. Ambitious users who trust their own expensive equipment more or who prefer their personal fluke to serve as reference have the possibility to adjust the Q200 factory calibration by a few counts.
Features:
SkyRC Q200 employs an individual-cell-voltage balancer. It isn't necessary to connect an external balancer for balance charging.
 Automatic Charging Current Limit
Capacity Limit
Temperature Threshold
Processing Time Limit
The charger can store up to 10 different charge/discharge profiles in each channel, few clicks can activate them, which saves you repeating the dull settings.
 The charger can read individual cell voltage and the total voltage of the battery pack.
 The charger can test individual cell's internal resistance and the total internal resistance of the battery pack.
 The PC software enriches operating experience, like viewing realtime graphs of voltage, amperage, capacity and temperature.
The Bluetooth 4.0 connectivity allows the user to remote control and monitor the Q200 comfortably through an app on a portable device such as smartphone, iPad, or iPhone. The iOS app can be downloaded from iTunes Store, the Android app from Google Play Store. Operation of the app is self-explanatory and the same on iOS and on Android. Explicit pairing is not required; after download and installation just activate Bluetooth on your mobile device and launch the app. Q200 and your device will establish Bluetooth connection automatically.

Specifications:

 Net Weight         1335g
 Input Voltage         AC100-240V / DC 11-18V
 Charge Circuit Power         DC Input: CH A/CH B: 100W CH C/CH D: 50W
 AC Input: CH A+CH C=100W CH B+CH D=100W;
CH A/CH B: 50-100W   CH C/CH D: 0-50W
 Discharge Circuit Power         4 x 10W
 Charger Current Range         CH A/CH B 0.1-10A
CH C/CH D 0.1-5A
 Discharge Current Range         0.1-2A x 4
 Current Drian for Balancing Port         Max 200mA/cell
 Trickle Charging Current         50mA-300mA & OFF
 LiPo/LiFe/Lilon/LiHV Battery Cell Count         1-6S
 NiMH/NiCd Battery Cell Count         1-15S
 Pb Battery Voltage         2-20V





CLICK HERE TO SEE SUITABLE CHARGING LEADS

CLICK HERE TO SEE OTHER BATTERY CHARGERS



3 Month Warranty

SKU PS1188
Barcode # 6930460005892
Brand SkyRC
Shipping Weight 1.8100kg
Shipping Width 0.210m
Shipping Height 0.050m
Shipping Length 0.280m
Shipping Cubic 0.002940000m3
Unit Of Measure ea
