Robot Arm 4DOF Aluminium Mechanical Claw Arduino Project Kit
Bluetooth or Wired Joystick Control Robot Arm

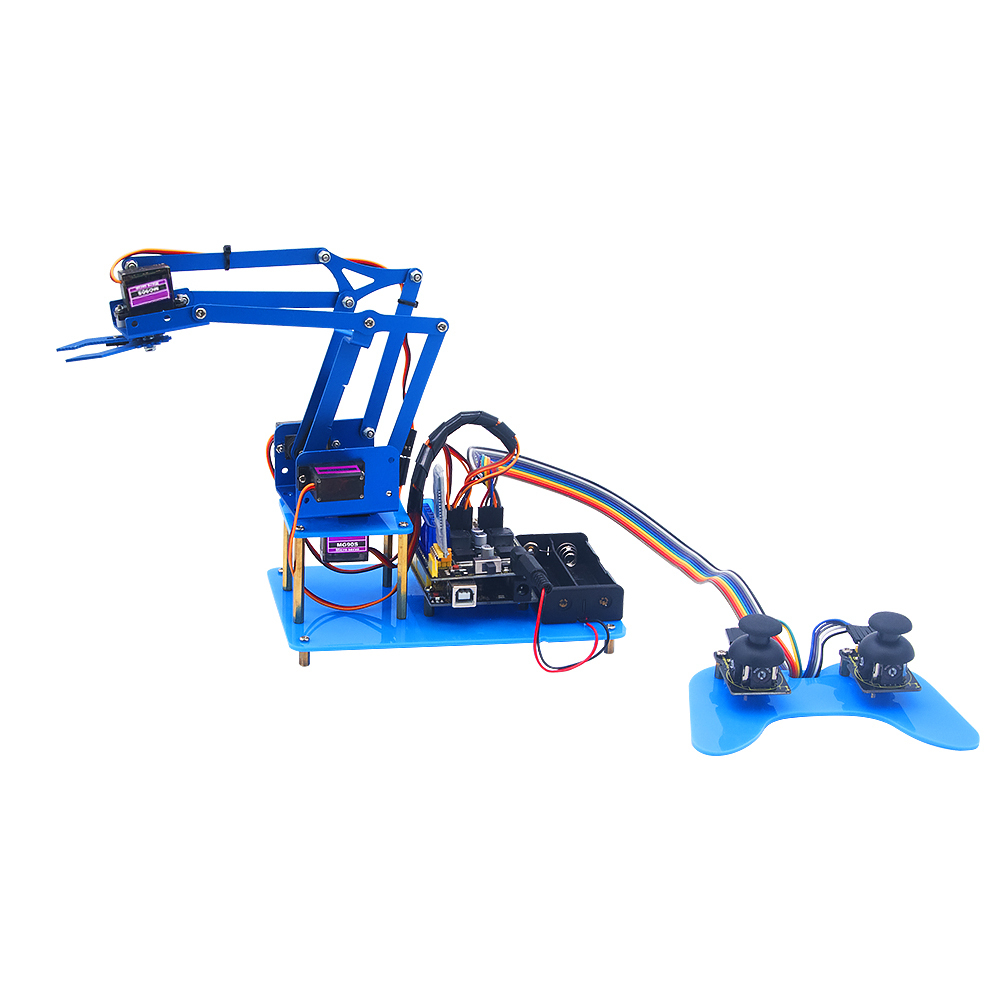

This Aluminium Robot Arm kit is anew improved version of our 4 DOF Robot Arm Kit. It has a stronger aluminium arm frame and is supplied with a wired joystick controller. It also has a HM-10 Bluetooth module for smartphone control.
It is based on the Uno Platform and offers 4 Degree of Freedom. This very simple and easy to build kit is the perfect Arduino Project for Beginners and is a great learning platform to get into Robotics and Engineering.

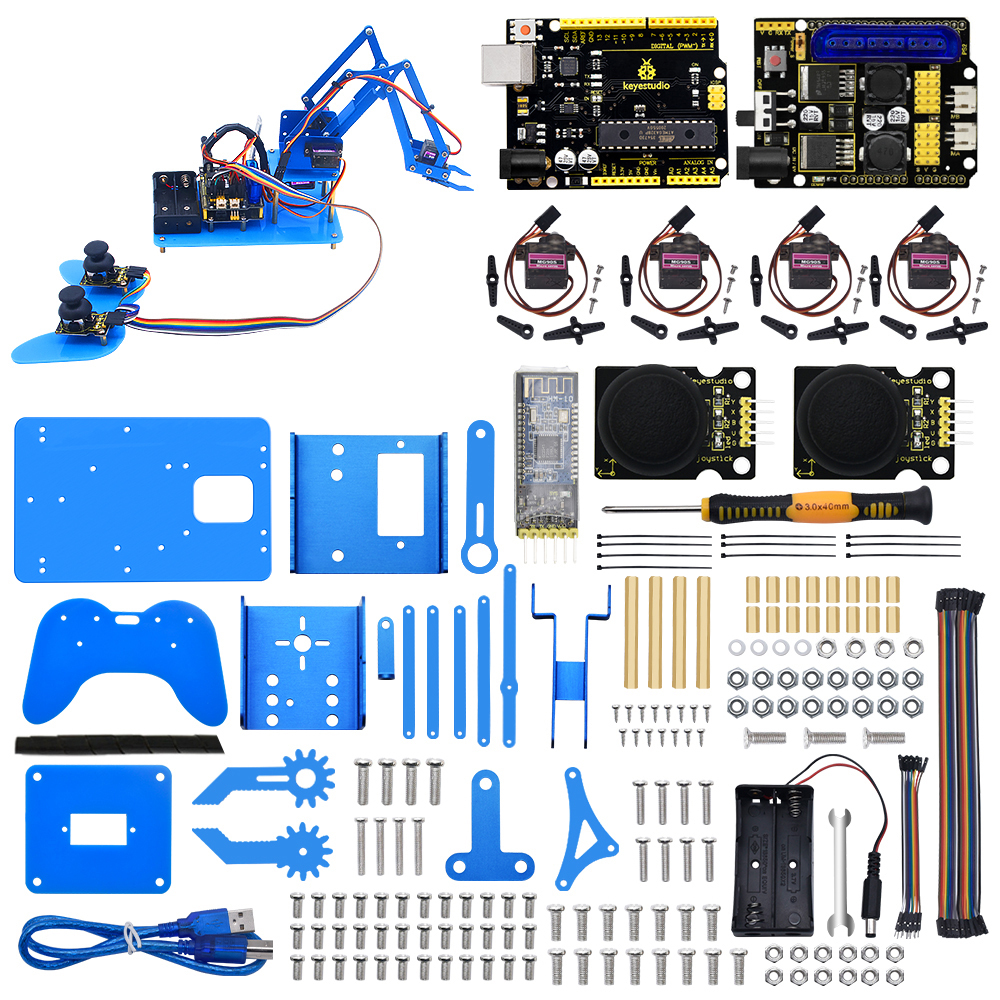

The Robot Arm comes flat pack for assembly and requires very minimal soldering to get it up and running. The kit
contains four serial bus servos and one digital servo.
The main function is to perform movements similar to the front, rear, left and right, and up and down handling of industrial robots.
Be able to imitate movements of human's arm and hand, the robotic arm can be programmed to grab and move objects or use tools automatically.
Start getting this one and enjoy the flight.
The shield comes with a PS2 Joypad connector which help you control robotic arm easily. The PS2 Joypad( PS2 receiver）is not included in kit. You need to purchase it online.
Mobile phone Bluetooth control. Exquisite interface, easy operation;
Have HM-10 Bluetooth module, which is a master-slave integrated machine. When as the master, it can actively send commands to the slave; when as a slave, it can only receive the command from the master. At the same time, the HM-10 Bluetooth module supports the Bluetooth 4.0 and Android /IOS system.
Press down the key Z1 to memorize different postures, at most 10 postures in the code. If need to memorize more postures, you can set it in the code. When memorizing successfully, press down the key Z2 of left Joystick to make the robot arm carry out several postures stored successively.
This kit required 2 x 18650 batteries.
