QuicRun WP12BL45 G2 Brushless ESC 45A

Brushless ESC Upgrade for RCs

---

Take your 1/12 & 1/14th scale short course truck or monster truck to the next level. Specifically designed for entre-level users, inheriting HOBBYWINGS exceptional quality. Easy to operate with no complex setup required for seamless operation.



Specifications

Type

• Scale: 1/12^th 1/14^th
• Brushed/Brushless: Brushless
• Sensored/Sensorless: Sensorless
• Waterproof: Waterproof

Specifications

• Cont./Peak Current: 45A/200A
• Input Voltage: 2-3S
• BEC Output: 6V/7.4V,4A

Wires & Connectors

• Input Wires: Black-14AWG-110mm*1,Red-14AWG-110mm*1
• Output Wires: Black-14AWG-85mm*3
• Input Connectors :XT60
• Output Connectors: 3.5MM Gold (female)

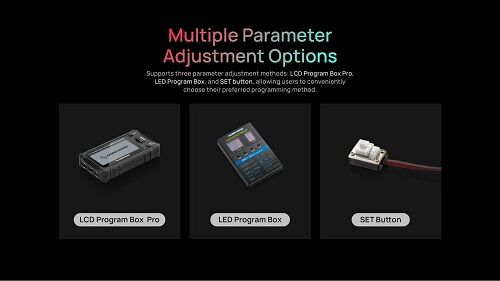

ESC Programing via

• SET Button on ESC: Supported
• LED Program Box: Supported
• LCD G2 Program Box: Supported
• LCD PRO: Supported
• OTA Programmer: Not supported

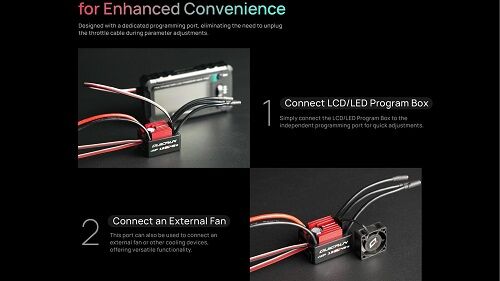

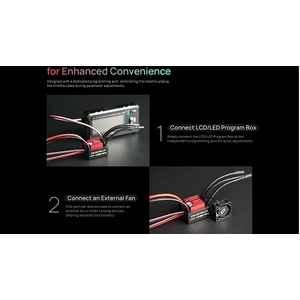

• Program Port: Independent program port

Data Recording

• Extreme value: Not supported
• Real-time Data: Not supported
• Historical data (Graph): Not supported

Firmware

• Firmware Upgrade: Not Supported

Size & Weight

• Size: 39.2*29.2*25.6mm
• Weight: 57g( Included wires & connectors)

Applications

• Motors: Sensorless / Sensored Brushless Motor (only in sensorless mode)
• Vehicles: 1/12^th、1/14^th On-Road & Off-Road
• KV Rating/T Count: QUICRUN 2840/2850 G2

⚠️ Important Usage Notes

Before use, carefully read the instruction manual. Improper setup or misuse can result in damage to your ESC and vehicle. Make sure:

• All solder joints are clean and secure—use a high-quality soldering station.

• You operate within specified limits (voltage, motor KV, temp).

• The battery is disconnected after each run to prevent deep discharge and damage.

While this ESC includes multiple layers of protection, safe and responsible use is essential for long-term performance.
