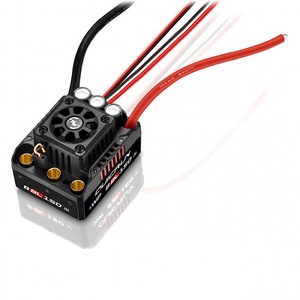

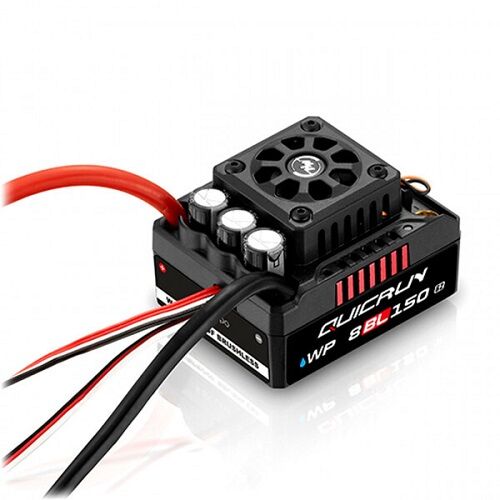

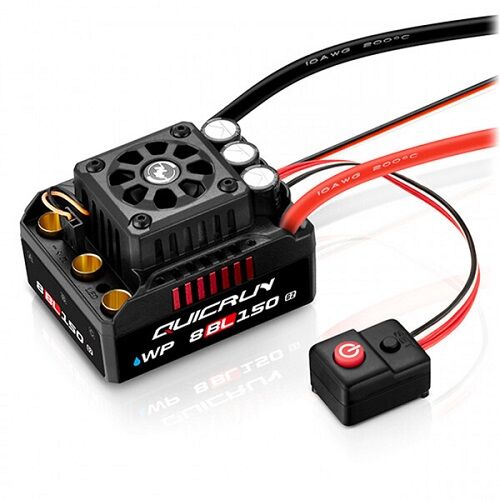

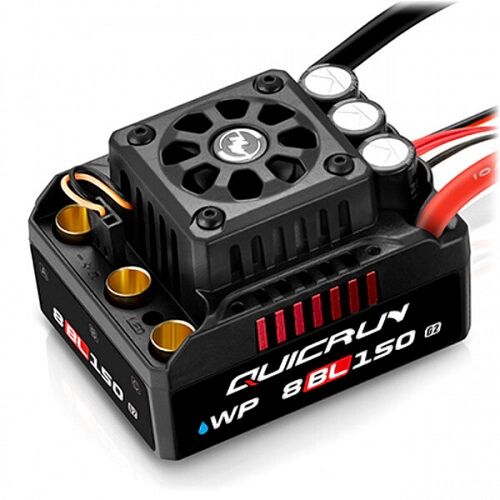

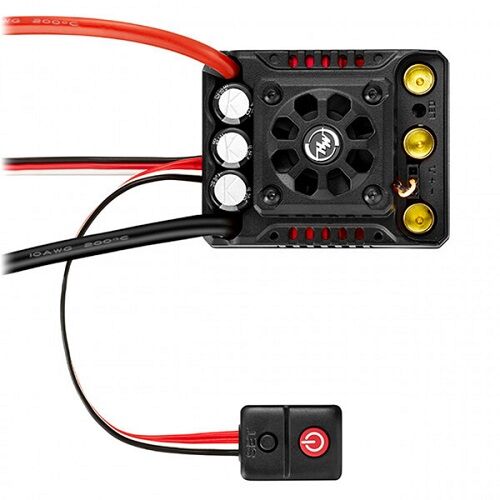

QUICRUN-WP-8BL150 Brushless ESC

Brushless ESC Upgrade for RCs

---

Next-Gen Power, Smarter Performance for 1/8 Scale RC Builds

The QuicRun WP-8BL150 G2 isn’t just an upgrade—it’s a leap forward in smart performance and efficiency for serious 1/8 scale RC enthusiasts. Designed for bashers, racers, and builders who push their setups hard, this second-generation ESC combines intelligent temperature control, a significantly upgraded BEC, and IP67-rated durability for confidence on any terrain, in any weather.

---

Upgraded BEC – Power for Modern High-Voltage Servos

One of the standout upgrades in the G2 model is its high-performance BEC:

• Switchable voltage: 6V or 7.4V

• Continuous current: 6A

• Peak output: 12A

This ensures reliable operation even when paired with today's high-draw, high-voltage servos, eliminating the need for an external BEC.

---

Smart Efficiency with Intelligent Freewheeling

Thanks to intelligent freewheeling technology, the G2 runs cooler and more efficiently than its predecessor—especially under partial load or low-speed operation. This results in:

• Reduced heat buildup

• Improved ESC longevity

• Stable performance in a wide range of driving conditions

---

Advanced Heat Dissipation & Capacitor Protection

The internal power board is equipped with a patented copper heat conduction rail that rapidly transfers thermal energy to a CNC-machined aluminum housing. Combined with a high-performance fan, the cooling system ensures safe operating temperatures even under extreme loads.

Additionally, the onboard 2040μF capacitor array is protected with built-in overheat protection, preventing damage during high-current bursts or prolonged stress.

---

Tuning Made Easy

• 9 throttle profiles ranging from smooth to aggressive let you tailor the power curve to suit your terrain or driving style

• Proportional braking with adjustable maximum brake force and auto-brake settings

• Independent programming port – no need to disconnect the receiver for tuning

---

Built-In Protection Features

• Low voltage cutoff (LiPo/NiMH)

• Thermal protection for ESC and capacitors

• Signal loss protection

• BEC overload safeguard

---

IP67 Waterproof & Dustproof

Built for true all-terrain action, the WP-8BL150 G2 is fully sealed to IP67 standards, ensuring reliability in mud, snow, sand, or rain.



Type:	Brushless sensorless
Current (continuous/short):	150A/950A
Number of cells:	3-6S LiPo
BEC:	6V/7.4V with 6A (switch mode)
Waterproof:	Yes (IP67)
Exit:	6.5mm gold (socket)
Programming:	- LCD programming box G2 - LED programming card - programming interface
Dimensions:	60x48x40.4mm
Weight:	169.5g
Mission:	1/8 truck, monster truck
