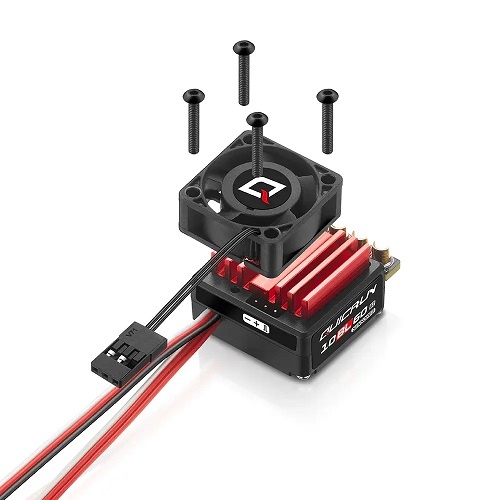

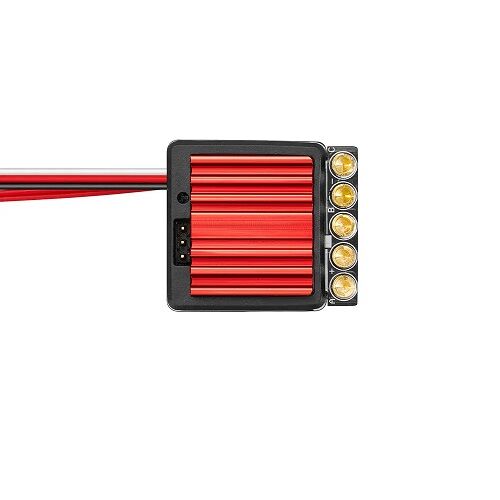

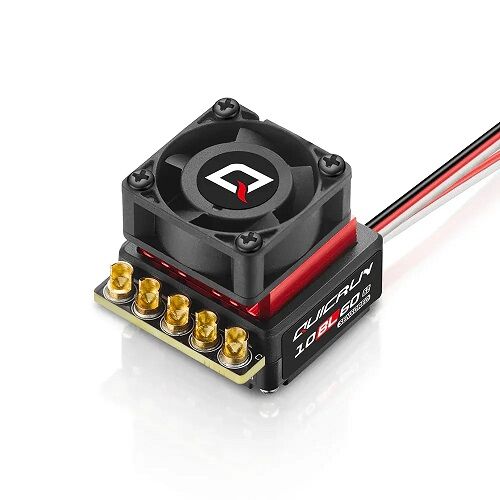

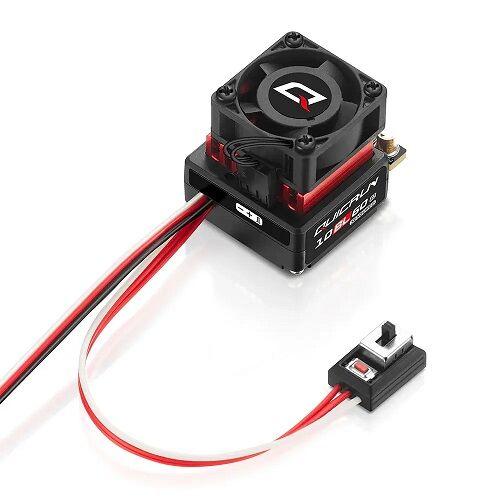

QUICRUN 10BL60 Sensored G2

Brushless ESC Upgrade for RCs

Engineered for entry-level and intermediate RC builders, this ESC delivers plug-and-play ease without sacrificing performance. Whether you’re just starting your hobby journey or dialing in a competitive setup, the G2 60A ESC offers a powerful, no-fuss experience with reliable control and advanced tuning options when you need them.

• Specifications:
  • Scale: 1/10th
  • Brushed/Brushless: Brushless
  • Sensored/Sensorless: Sensored
  • Waterproof: NO

  Relevant Parameters:
  • Cont./Peak Current: 60A/200A
  • Input Voltage: 2S Lipo
  • BEC BEC Output: Switch Mode 6V/7.4V @4A

  Wires & Connectors:
  • Input Wires: Black--14AWG-175mm*1 Red--14AWG-175mm*1
  • Output Wires: Blue-14AWG-175mm*1, Yellow-14AWG-175mm*1, Orange-14AWG-175mm*1
  • Input Connectors: No
  • Output Connectors: No

  ESC Programing via:
  • SET Button on ESC: Supported
  • LED Program Box: Supported
  • LCD G2 Program Box: Supported
  • LCD PRO: Supported
  • OTA Programmer: Not Supported
  • Program Port: Shared with Fan port

  Data Recording:
  • Extreme value: Not Supported
  • Real-time Data: Not Supported
  • Historical data (Graph): Not Supported
  • Firmware Upgrade: Not Supported

  Size & Weight:
  • Size: 35.0*31*30.8mm
  • Weight: 66.5g (Included wires & connectors)

  Applications:
  • Motors: Sensored/Sensorless Brushless motor
  • Vehicles: 1/10th Touring, Buggy, Drift, 1/12th and 1/14th Vehicles
  • KV Rating/T Count: QUICRUN 3650 SD G2
• Package total weight: 130.00 grams (incl. packaging)
• Package size: 9.00 x 12.50 x 7.00cm
• Factory description: Hobbywing QUICRUN 10BL60-SENSORED G2 Brushless ESC

⚠️ Important Usage Notes

Before use, carefully read the instruction manual. Improper setup or misuse can result in damage to your ESC and vehicle. Make sure:

• All solder joints are clean and secure—use a high-quality soldering station.

• You operate within specified limits (voltage, motor KV, temp).

• The battery is disconnected after each run to prevent deep discharge and damage.

While this ESC includes multiple layers of protection, safe and responsible use is essential for long-term performance.
