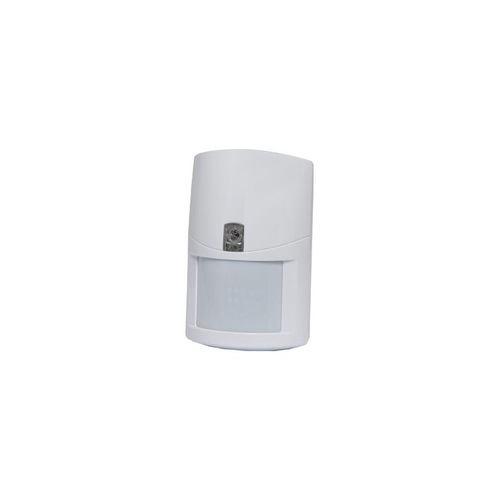

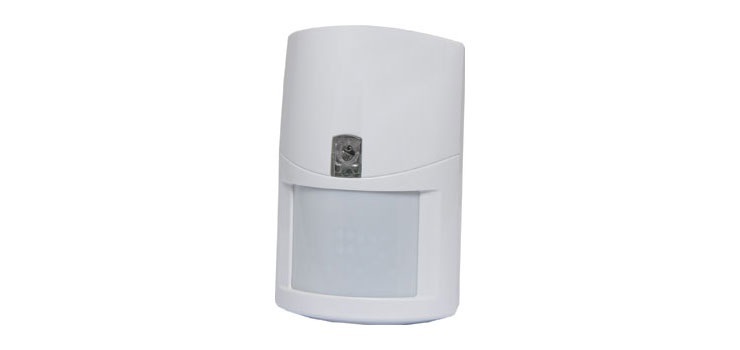

PIR Lux Wireless

Alarm Accessories for Home Security!

Say goodbye to unnecessary cables with this wireless PIR Lux ideal to be mounted on ceilings and walls for motion detection within a 15mx15m coverage.

With the added feature of a night light a motion-activated cone of light will help you find your way around at night.

The night-light remains lit as long as it detects motion and stays on for an extra 10 seconds after motion has stopped.

FEATURES:

• 15m x 15m wide angle coverage
• Look down 'Creep Zone'
• White LED motion activated night-light
• Adjustable Pulse Count
• Adjustable Range
• High R.F. and E.S.D. immunity
• High white light immunity
• SAWR stabilised radio transmitter
• Capsule design with sealed electronics
• Front cover tamper protection
• Long life Lithium batteries supplied
• Low battery warning signal
• Hourly Supervision radio signals
• Includes wall mounting bracket
• Optional ceiling bracket available

SPECIFICATIONS:

• Dimensions: 112(h) x 72(w) x 48(d) mm
• Mounting Height: 2.1m – 2.4m
• Coverage: Up to 15m x 15m @ 90°
• Detector Zones: 20 dual element zones
• Pulse Count: Selectable 1–2 or 3–4
• Range: Selectable High/Low. 15m max./12m max.
• Sensor: Dual element pyroelectric
• Alarm Indication: Blue alarm LED
• Night Light: White LED Light with adjustable threshold, Dark/Dim Light
• Alarm Period: 5 seconds
• Operating Voltage: 3V DC
• Battery: 2 x CR123A Lithium
• Quiescent Current: < 14μA
• Radio Frequency: 304MHz
• Transmit Power: 100μW

NOTE:

• Requires matching wireless receiver on the alarm panel to operate
• Product contains a button battery
• If swallowed, a lithium button battery can cause severe or fatal injuries within two hours.
• Keep batteries out of reach of children.
• If you suspect your child has swallowed or inserted a button battery, immediately call the 24 hour poisons information centre on 13 11 26 (within Australia) and seek medical attention.
