MAX6675 Temperature Sensor with K Type Thermocouple for Arduino Projects

A dd an accurate Temperature sensor to your arduino

SKU: TA0396


$12.95
RRP $29.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $11.66 ea
Buy 11 to 20: Pay $10.49 ea
Buy 21 to 100: Pay $9.44 ea




Calculate Shipping

MAX6675 Temperature Sensor with K Type Thermocouple for Arduino Projects

Add an accurate Temperature sensor to your Arduino

This  MAX6675 Thermocouple Temperature Module is a digital converter that has a range of 0°C up to 1024°C  with the supplied K-Type thermocouple.

Simple SPI serial output temperature.
Chip cold junction compensation.
High impedance differential inputs.
Thermocouple break detection.
2000V of ESD signal.

Specification:
Temperature range: -20 ° C -  1024° C.
Temperature resolution: 0.25 ° C.
Wide operating voltage range: 3. 0 ~ 5. 5V
Operating current: 50mA.
Operating temperature range: -20 ° C~ 85 ℃.
Module interface: GND VCC SCK CS SO
Supply voltage: 3 ~ 5V DC
Module size: 15mm * 25mm

Package includes:

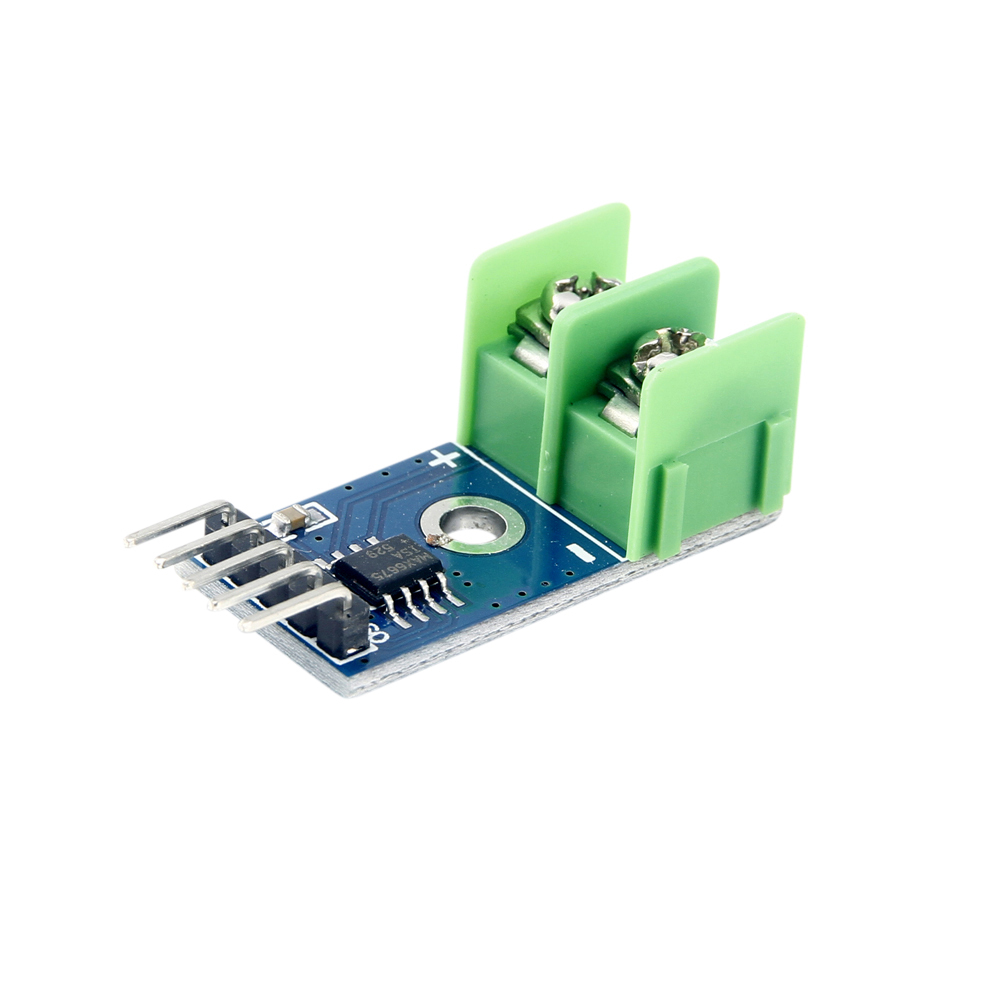

1 x MAX6675 Module
1 x Thermocouple

Wiring:
GND =  Connect to system ground.  This ground needs to be in common with the MCU.
VCC =   Connect to 3.0 – 5.5V.  Typically connected to MCU operating power.
SCK =   Serial Clock Input.  Connect to any digital pin on MCU.
CS =      Chip Select.  Connect to any digital pin on MCU.
SO  =     Serial Data Output.  Connect to any digital pin on MCU.

Code
/*MAX 6675 Thermocouple Module Test

Basic code for reading the MAX6675 chip via SPI interface
Requires installation of 'max6675.h' library
*/
#include "max6675.h"

int const SO_PIN = 8;   // Can use any digital pins for these assignments
int const CS_PIN = 9;
int const SCK_PIN = 10;

MAX6675 ktc(SCK_PIN, CS_PIN, SO_PIN);  // Create an instance of MAX6675 control
//===============================================================================
//  Initialization
//===============================================================================
void setup() {
  Serial.begin(9600);  // Set comm speed for debug window messages
  delay(1000);        // give the MAX6675 a little time to settle
}
//===============================================================================
//  Main
//===============================================================================
void loop() {
  // Read and print the values from the module in both degrees C and F
   Serial.print("Deg C = ");
   Serial.print(ktc.readCelsius());
   Serial.print("t Deg F = ");
   Serial.println(ktc.readFahrenheit());

   delay(1000);
}
