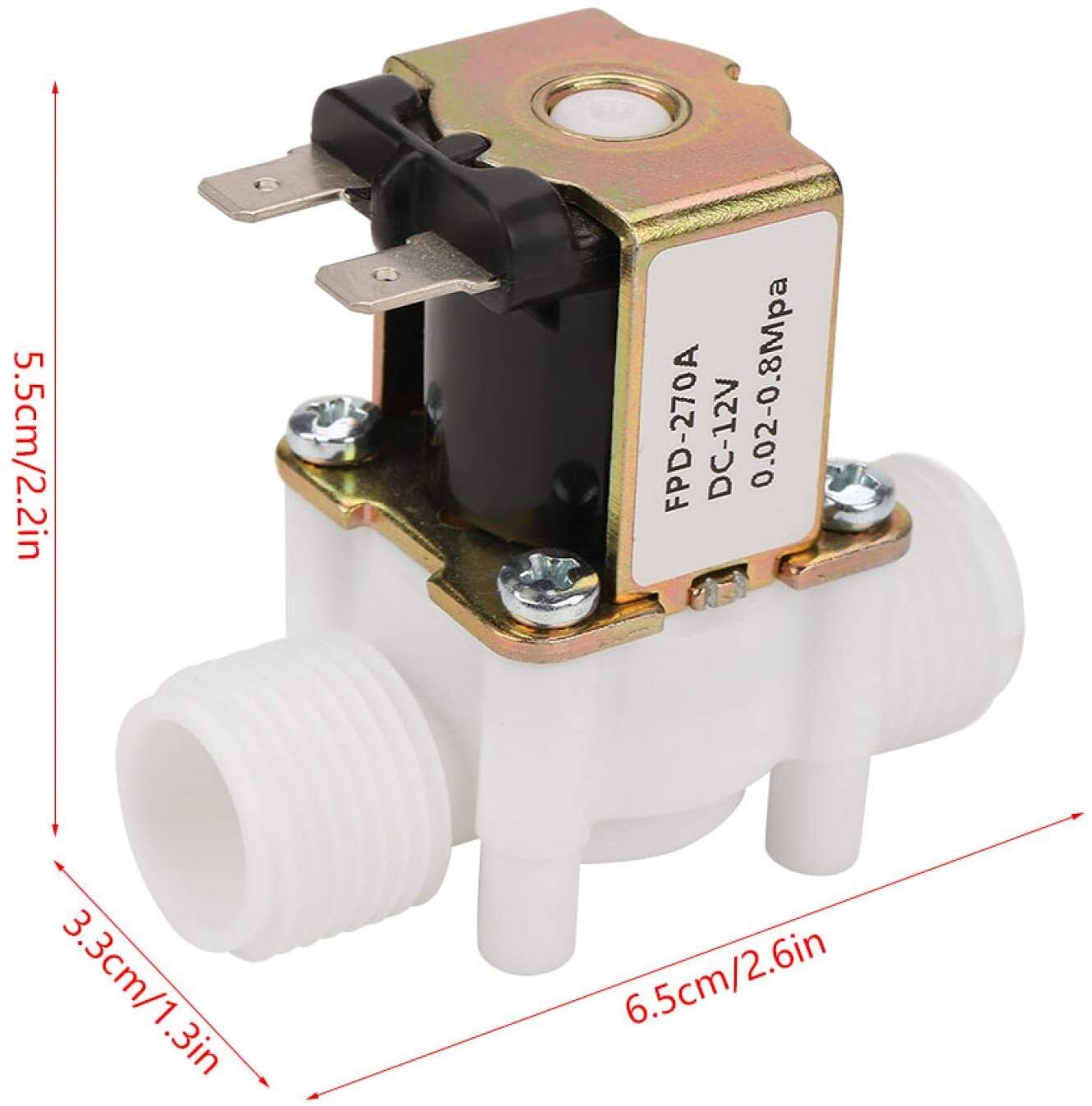

12V DC 3/4" Water Solenoid Valve - Normally Closed

Great for water irrigation Arduino projects

This is 12V DC Electric Water Solenoid Valve that is great for water irrigation, plant watering and other water based Arduino projects.

Normally Closed
Working conditions Working voltage: DC12V
Working pressure: 0.02~0.8 Mpa

Basic performance
1. Flow performance: 0.5-15 L/min
2. Starting performance: 0.02~0.8MPa rated voltage can start at 100%;
3. Water pressure resistance performance: 5 minutes under 2MPa pressure without leakage or damage
4. Insulation resistance: Under DC500V voltage, the insulation resistance is greater than 100MΩ
5. Insulation grade: F grade
6. Durability: Under rated voltage, rated frequency, and normal temperature, one cycle is energized for 5S and power-off for 5S, and the water pressure is 0.02~0.8Mpa for a total of 50,000 cycles. After the test, the valve can work normally.
7. Salt spray resistance test performance: No corrosion within 48 hours.

Water inlet size 20mm / 3/4 inch pipe diameter

Outlet size 20mm / 3/4 inch pipe diameter


Specifications:
  • Voltage: 12V DC.
  • Valve type: diaphragm (Operated by Servo).
  • Mode of operation: Normally closed.
  • Fluid temperature: 1-100 ℃.
  • Size: 8.5cm x 6cm x 4.3cm.
  • 1/2" Nominal NPS
  • Working Pressure: 0.02 Mpa - 0.8 Mpa
  • Working Temperature: 1 ℃ - 75 ℃
  • Response time (open): ≤ 0.15 sec
  • Response time (close): ≤ 0.3 sec
  • Actuating voltage: 12VDC (but we found it would work down to 6V)
  • Actuating life: ≥ 50 million cycles
  • Weight: 4.3 oz
  • Rated Power: 5W

Flow characteristic (Water Pressure / FLOW):

  • 0.8MPa /  <25L/min
  • 0.3MPa / >10L/min
  • 0.1MPa / 5L/min
  • 0.02MPa / >3L/min
SKU TA0347
Barcode #
Brand iduino
Shipping Weight 0.1800kg
Shipping Width 0.200m
Shipping Height 0.040m
Shipping Length 0.200m
Shipping Cubic 0.001600000m3
Unit Of Measure ea
