HDMI Extender Over Cat 6 with Infra-red Repeater

HDMI Extender over Cat 6 up to 50 metres

The HDMI Extender over Single Cat5/6 extends 1080p high definition video and audio signals and IR, at a distance of up to 164ft/50m over a single 6 cable. It has EDID copy from the receivers display. With only one cost effective Cat6 cable, high definition sources with HDMI outputs can be connected to high definition displays with HDMI inputs over long distances. Deep color video, DTS-HD or Dolby True HD audio is supported and compatible with the extender.

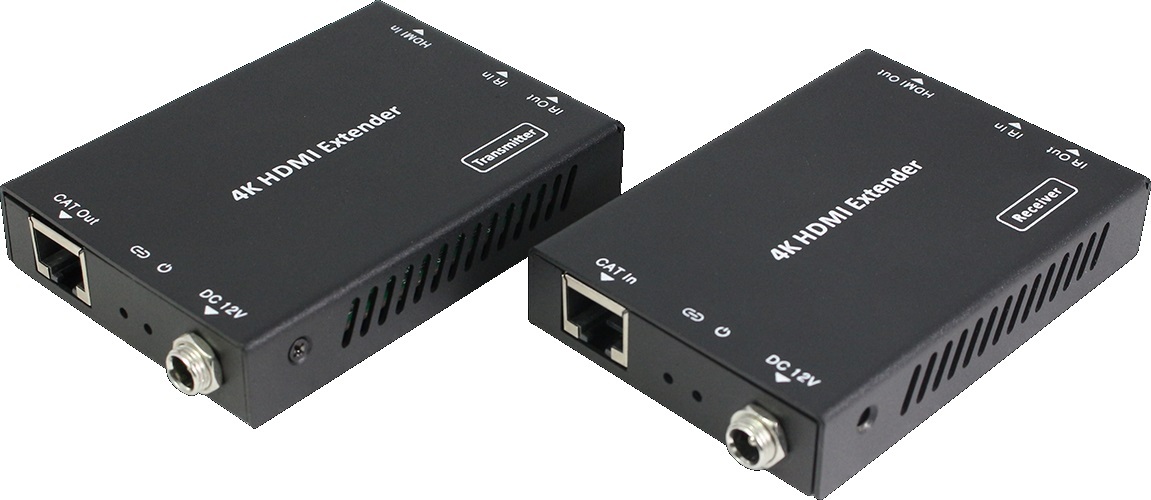

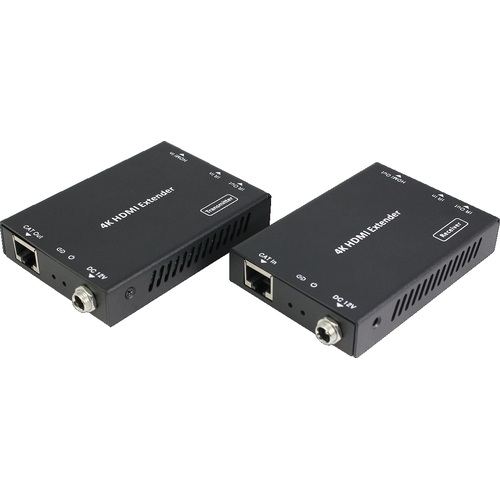

The extender includes two units: transmitting unit and receiving unit. The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one cost effective Cat6 cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR and serial control signals. The extender offers the most convenient solution for HDMI extension over a single Cat6 with long distance capability, and is the perfect solution for any application.

Features:


• Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat6 cable.

• Support copy EDID from receiver display.

• Transmission Range:

     Extends 1080P@60Hz up to 196ft/60m over a single Cat6 cable.

• Works with HDMI and HDCP compliant devices.

• Support power over cable function(Transmitter or Receiver).

• Compact design for an easy and flexible installation.



Technical Specification:HDMI Compliance    HDMI 1.4
HDCP Compliance    HDCP 2.2
Video Bandwidth    10.2 Gbps
Video Resolutions    1080p @ 60Hz
Color Depth    8-bit
HDMI Audio Formats
    (Pass-through)
       HDMI Audio Formats
 (Pass-through) LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+,   Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

ESD Protection     Human body model — ±8kV (air-gap discharge) & ±4kV (contact   discharge)
Connections

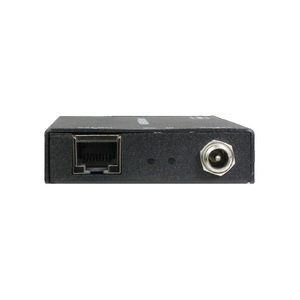

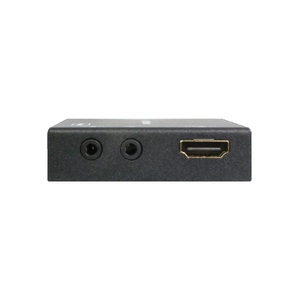

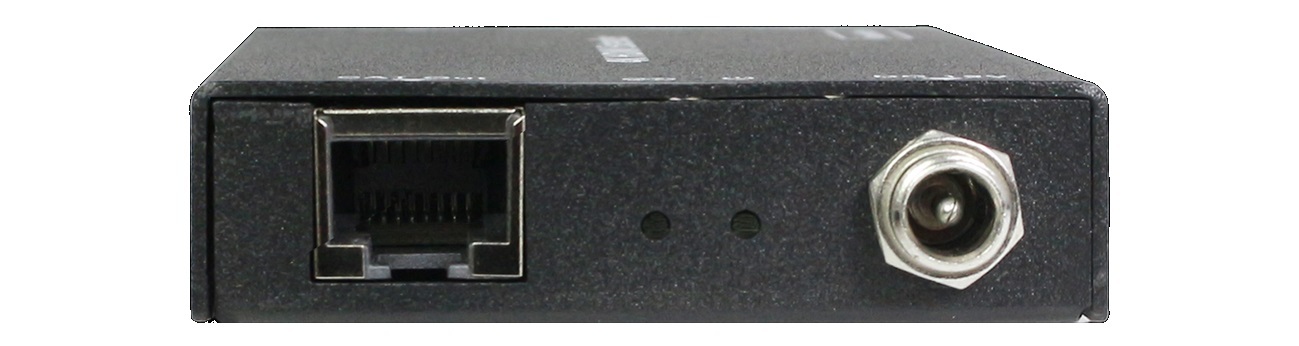

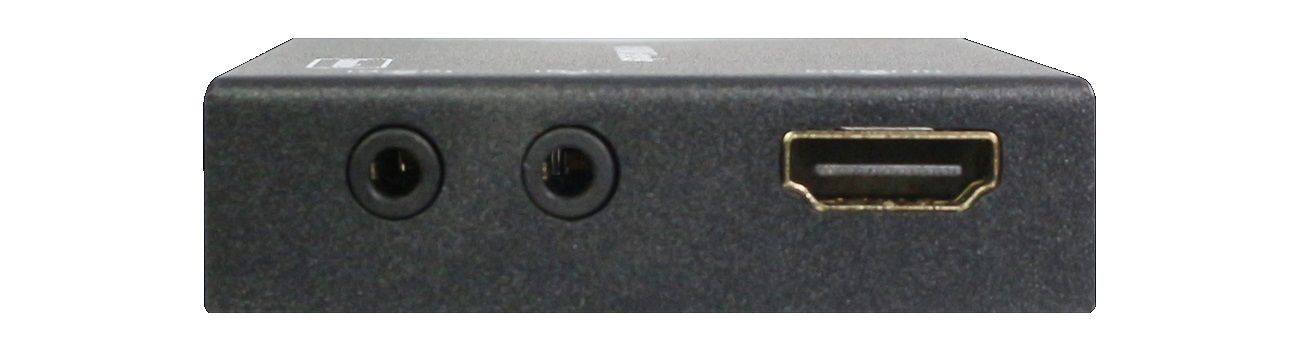

Transmitter    Inputs:  1x HDMI Type A [19-pin female]
Outputs: 1x RJ45, 2x3.5mm mini jack

Receiver    Inputs:  1x RJ45, 2x3.5mm mini jack
Outputs: 1x HDMI Type A [19-pin female]

Mechanical
Housing     Metal
Color    Black
Dimensions    TX: 88mm [W]   x61mm [D] x17mm [H]
RX: 88mm [W] x61mm [D] x17mm [H]

Weight    TX: 144g  RX: 144g
Power Supply    DC 12V/1A Adaptor (US/EU standards, CE/FCC/UL certified)
Power Consumption    TX: 1.0W
RX: 1.5W

Operation Temperature    32 - 104°F / 0 - 40°C
Storage temperature
-4 - 140°F / -20 - 60°C
Relative   Humidity    20 - 90% RH (no   condensation)
