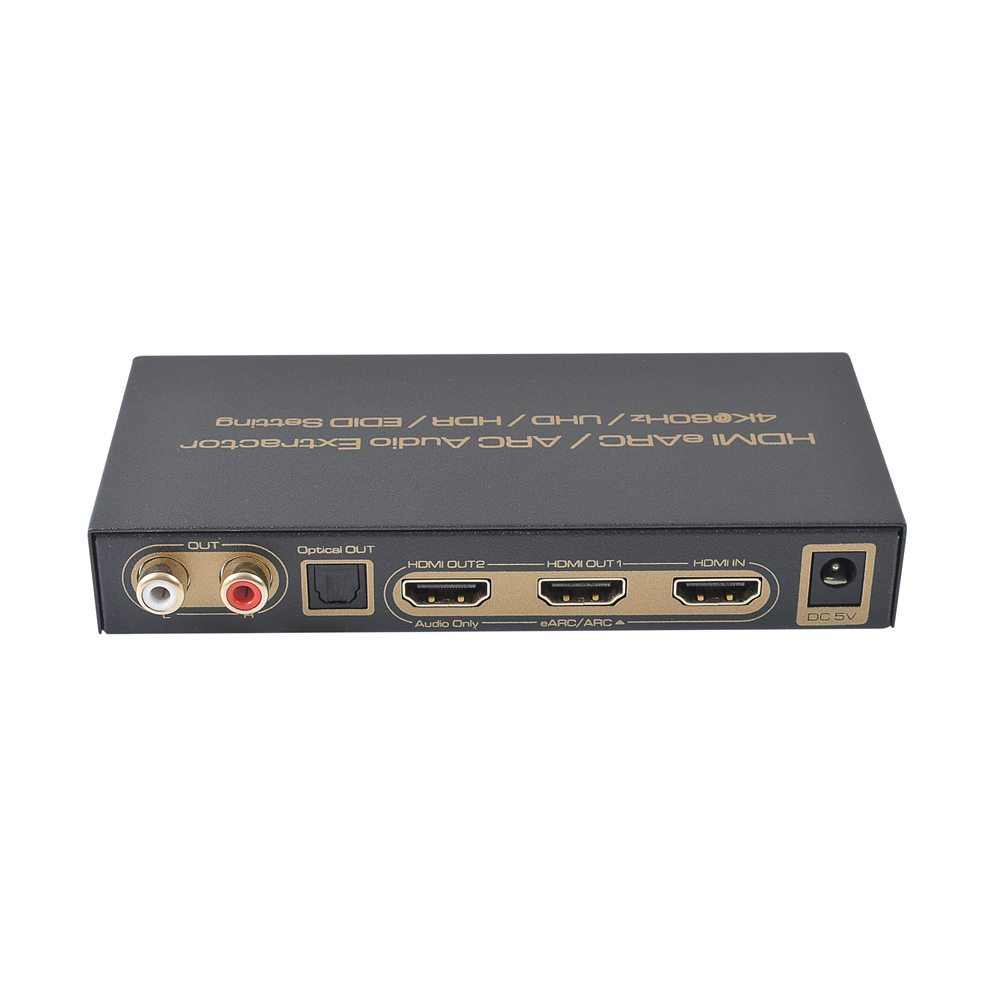

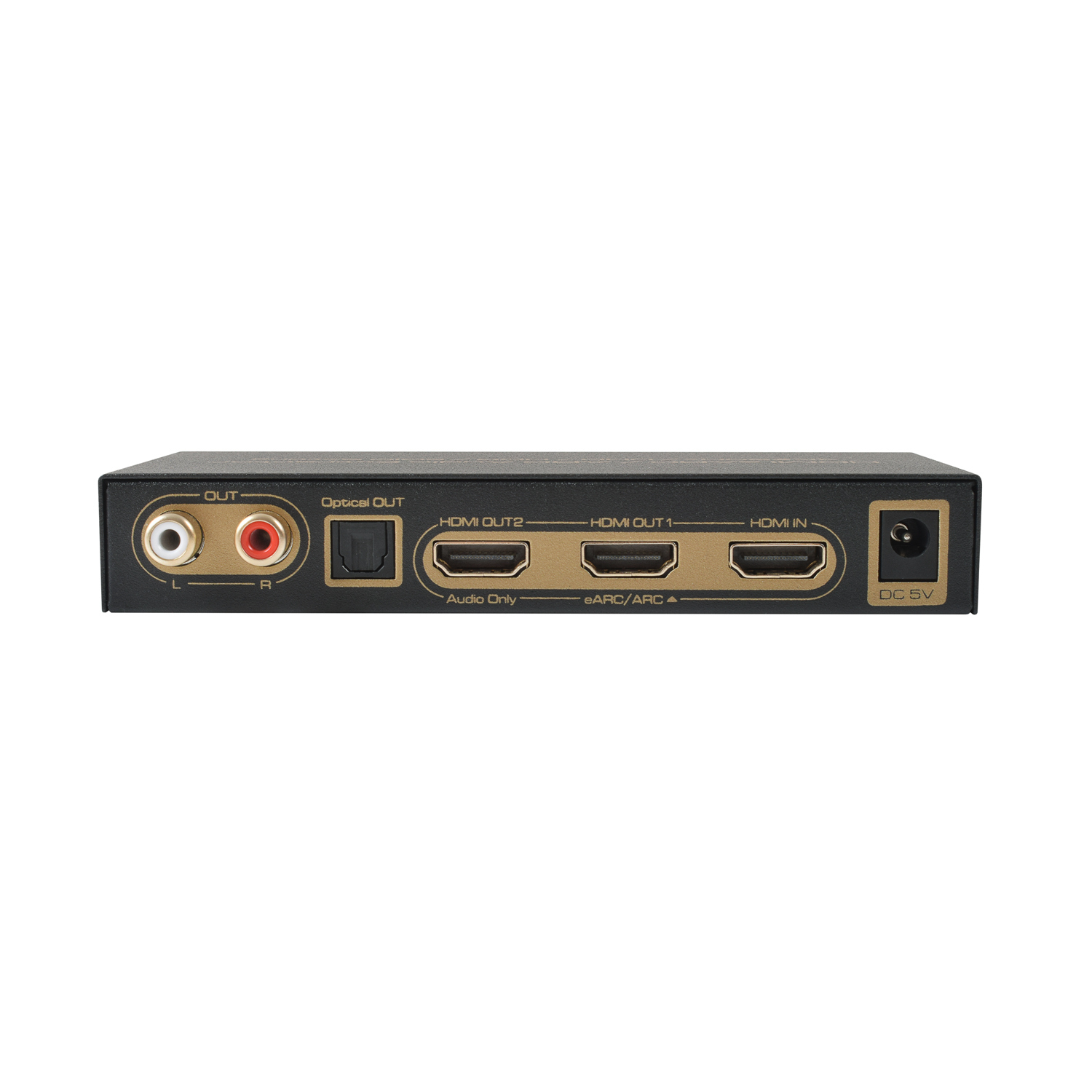

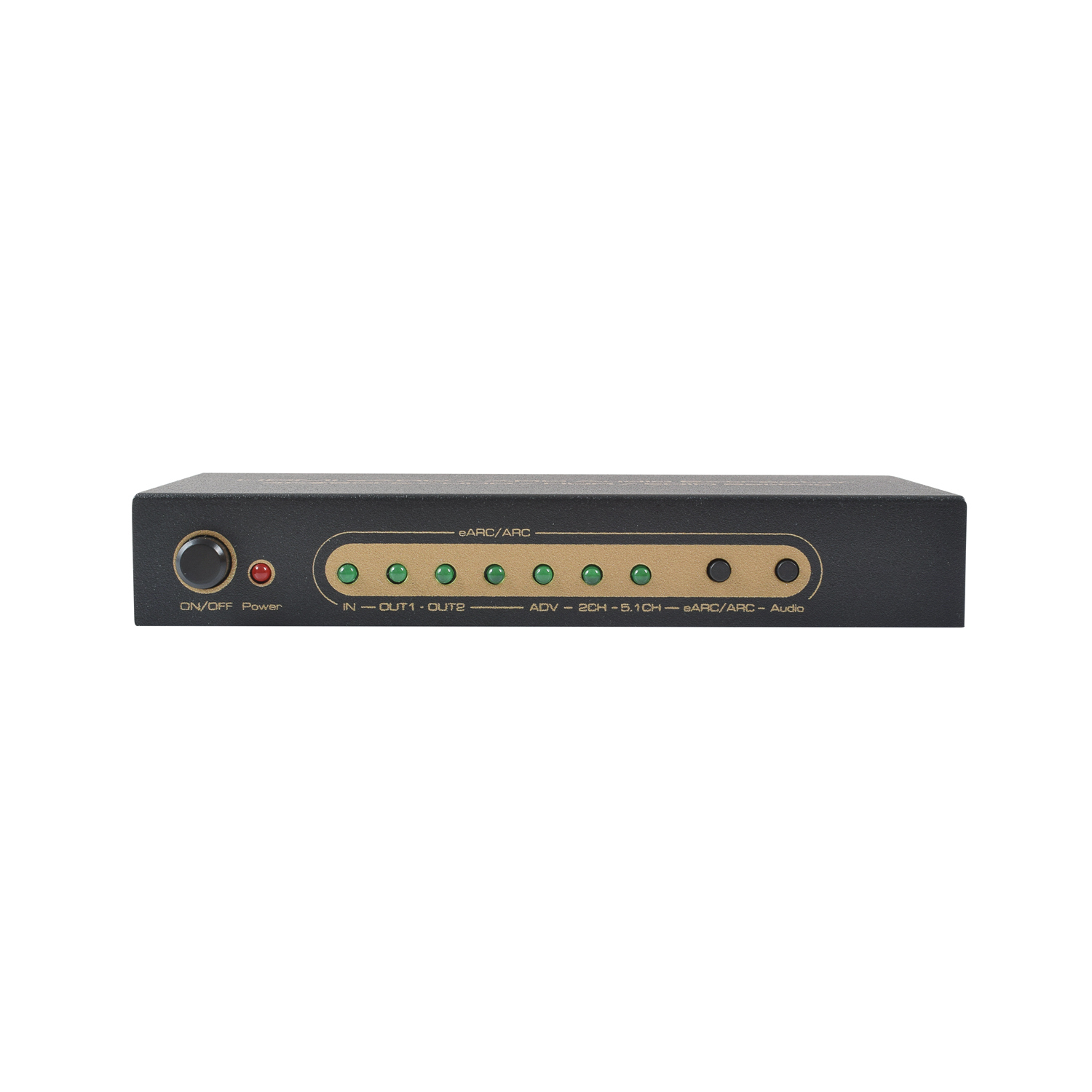

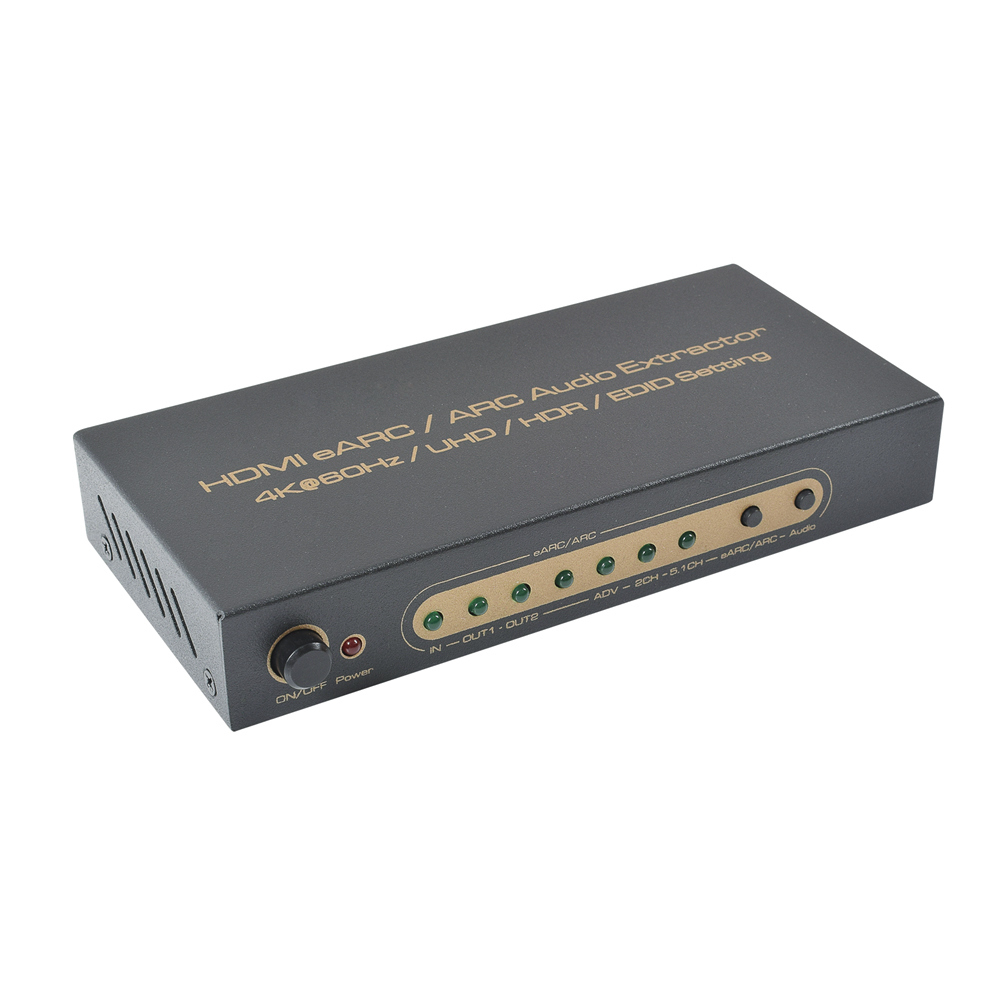

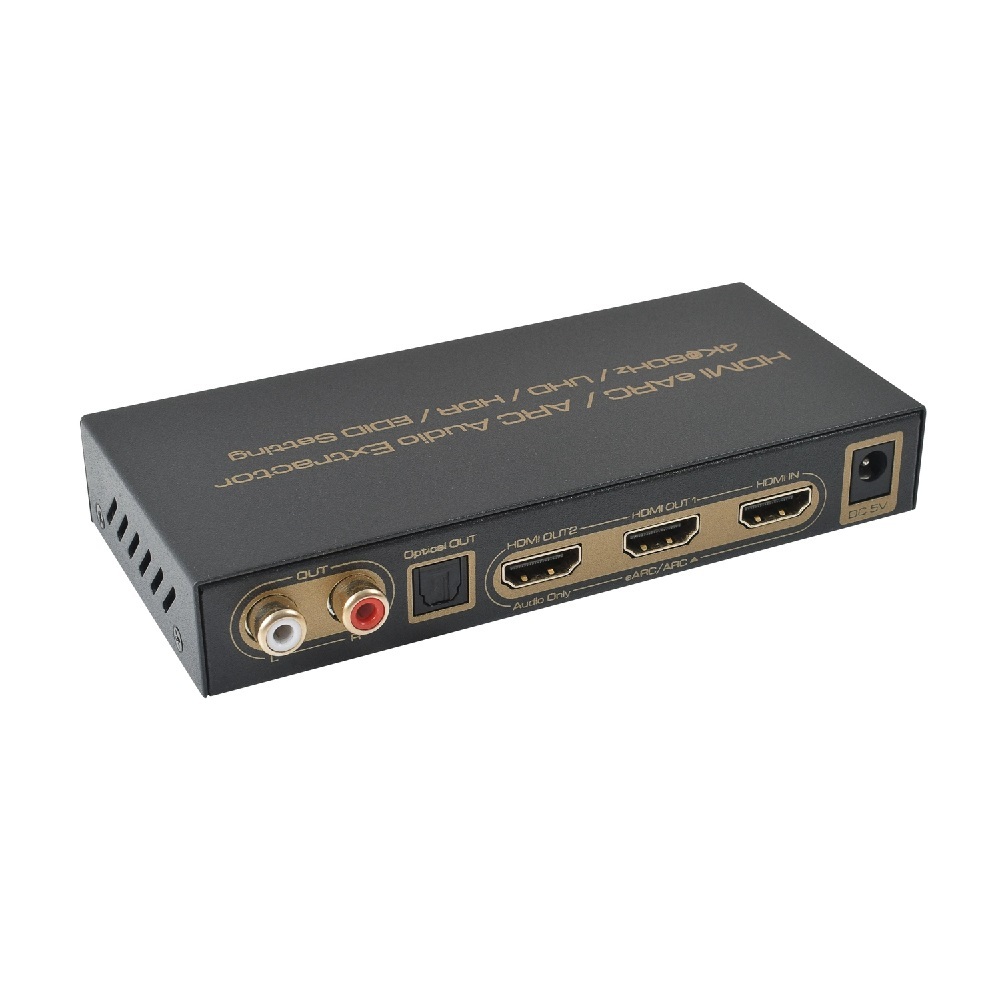

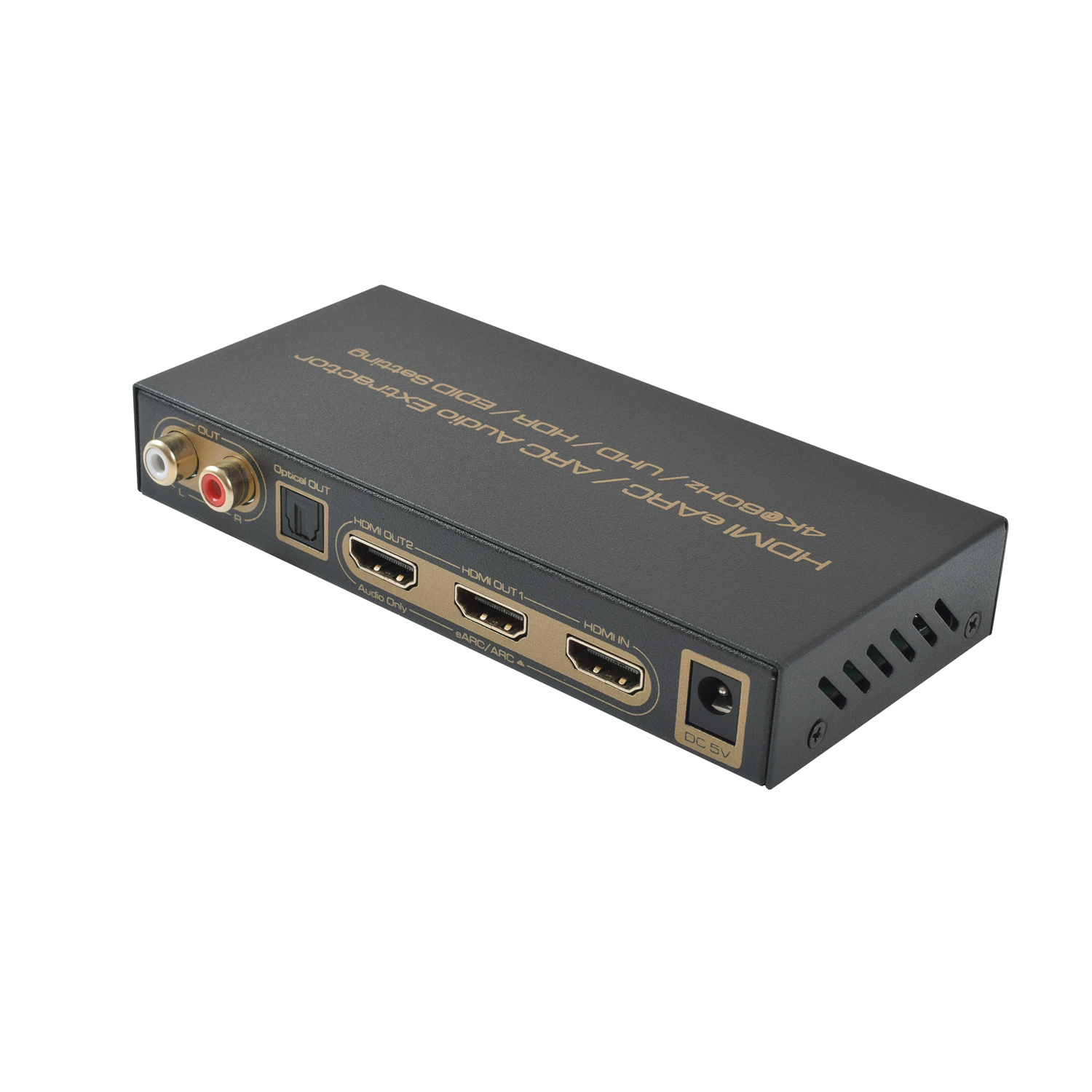

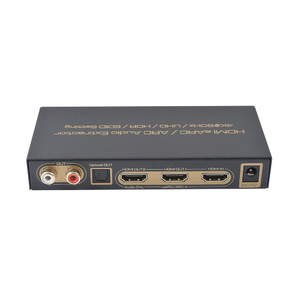

HDMI eARC / ARC Audio Extractor with HDR and Audio EDID

HDMI Audio Splitter featuring eARC &  Audio EDID Setting

A HDMI audio splitter featuring the new eARC feature, ARC and HDR. The audio extractor so you are able to connect an amplifier / receiver via the HDMI only output; digital toslink or analogue line level RCA outputs. Supports ARC, HDR, UHD, HLG, Dolby Atmos and Dolby Vision. It has an EDID / Down scaler functionality so it is able to match the displays resolution; e.g. both 4K or mixed 4K and 1080p.


Product    HDMI eARC/ARC Audio Extractor
Input channel    HDMI port x1
Output channel    HDMI port x2、RCA port x2、Optical port x1
eARC features    Support Optical、L/R、HDMI OUT2 output
ARC features    Support Optical、L/R、HDMI OUT2 output
Video format    HDR、UHD、HLG、Dolby Vision
Resolution format    480P/720P/1080P/4K@30Hz/4K@60Hz
Deep color    8/10/12Bit@480P/720P/1080P 8Bit@2160P
HDMI In/Out Supported Audio Format    Dolby HD/DTS HD / Dolby Atmos / Dolby AC3 / DTS / LPCM
Digital audio output supported audio format    LPCM2.0/DTS/DOLBY-AC3……
HDMI Input cable length    2160P/AWG 26 ≤3m
1080P/AWG 26 ≤10m
HDMI Output cable length    2160P/AWG 26 ≤3m
1080P/AWG 26 ≤10m
DAC sample frequency range    32~192 KHz
HDMI transmission bandwidth    25~600MHz
HDMI transmission rate    0.75~18Gbps
Power adapter specification    Input: AC 100~240V Output: DC 5V/1A
Max working current    600mA
Working temperature range    0 ~ +40℃
Working humidity range    5 to 85%RH(No Condensation)
Storage temperature    -15 to 55℃
Storage humidity    5 ~95%RH(No Condensation)
Size    139x64.5x22.3 (mm)
Weight    225g



12 Month Warranty

SKU AA6316
Barcode # 9351634026821
Brand Aus Electronics Direct
Shipping Weight 0.7400kg
Shipping Width 0.170m
Shipping Height 0.070m
Shipping Length 0.250m
Shipping Cubic 0.002975000m3
Unit Of Measure ea
