HDMI 2.0 18GBPS Extender Over Cat 5E/6 with Infra-red Extender

HDMI 2.0 Extender over Cat 5 and Cat 6

SKU: AA6250

RRP $399.00
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $189.05 ea
Buy 11 to 20: Pay $170.14 ea
Buy 21 to 100: Pay $153.13 ea

Calculate Shipping

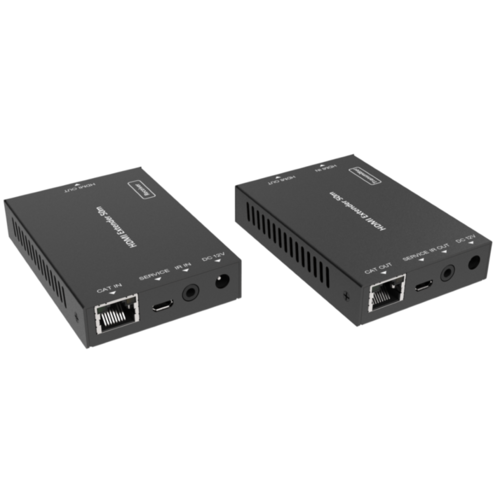

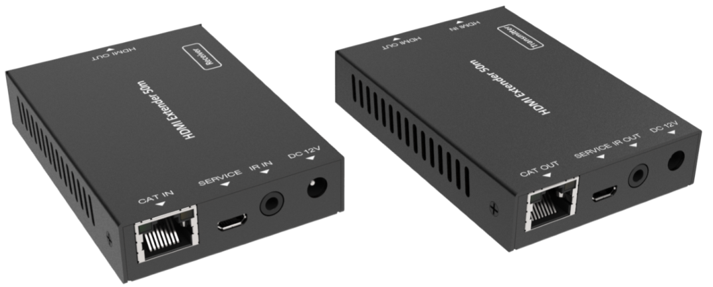

HDMI 2.0 18GBPS Extender Over Cat 5E/6 with Infra-red Extender

Send 4K UHD HDMI 2.0 with HDCP 2.2 up to 50m

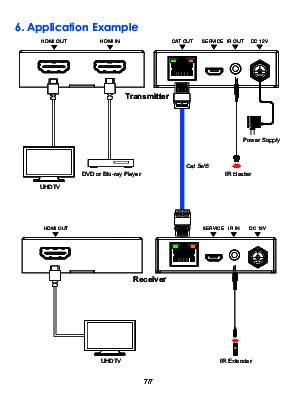

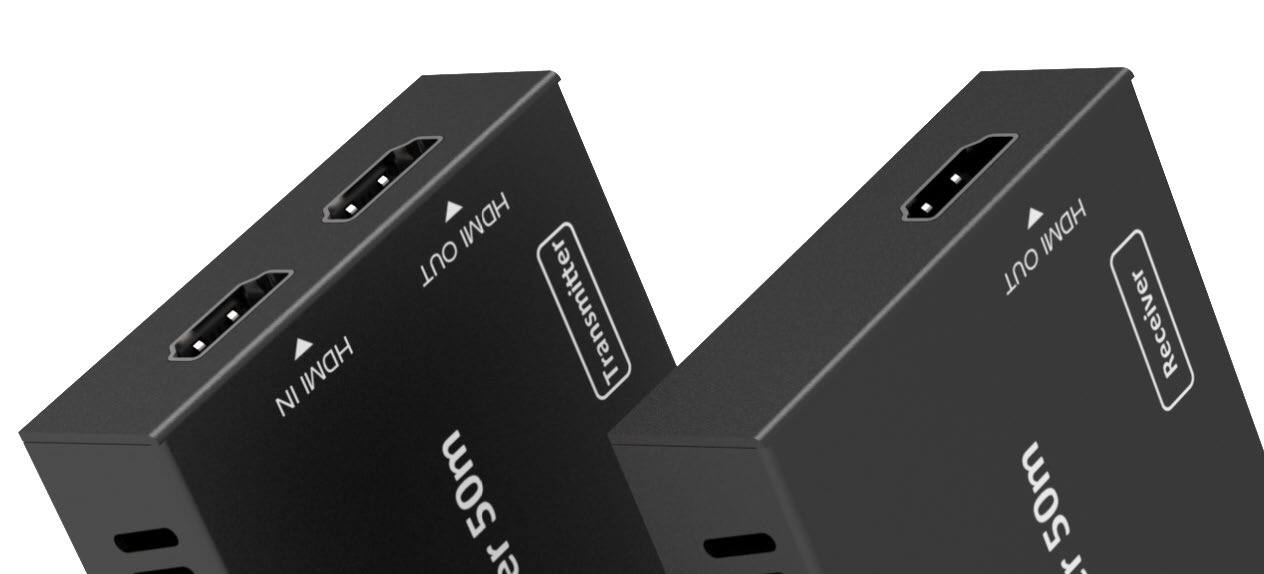

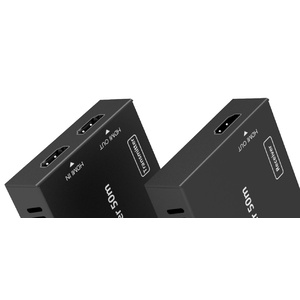

This 18Gbps HDMI 2.0 Extender send 4K @ 60Hz HDR signal via Cat5e/Cat6 ethernet cables. It is also HDCP2.2. compliant and supports Transfer Bidirectional Infrared control signal/RS232 signal/Ethernet together with the HDMI signal. It has a very HDMI Loop Out so that it can be utilised without the use of a HDMI splitter.

Perfect for new 4K video sources such as IQ4, Playstation 4 Pro or Xbox S One and other devices that require 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4 / YCBCR 4:2:2 specifications.


  • HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant

  • Video resolutions up to 4K2K@50/60Hz (YUV444)

  • 10bits HDR (High Dynamic Range) pass through

  • Supports HDMI High Bit Rate(HBR) audio pass through

  • Supports HDR

  • Supports Power Over Cable (PoC) function

  • Automatic EDID function


HDMI Compliance:  HDMI 2.0b

HDCP Compliance: HDCP 2.2 and HDCP 1.4

Video Bandwidth: 18 Gbps

Video Resolutions: 4K2K @ 50/60Hz (YUV4:4:4), 4K2K @ 30Hz, 1080P @ 120Hz, and 1080P 3D @ 60Hz

Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2


 Package Contents

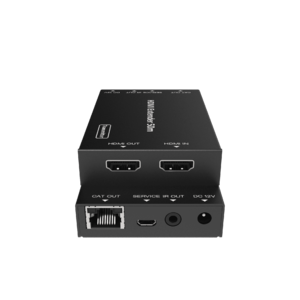

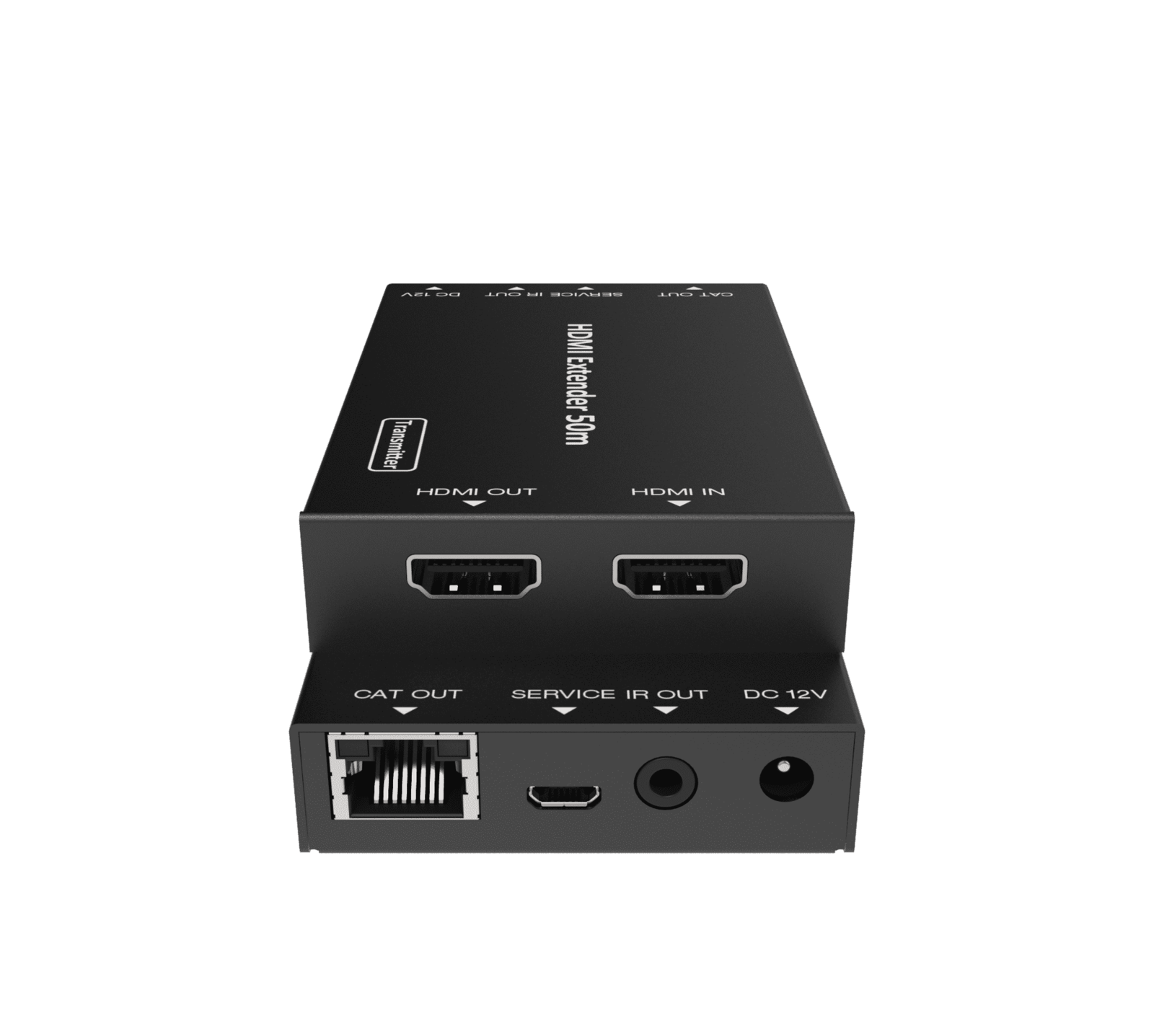

① 1× HDMI 18Gbps Extender (Transmitter)

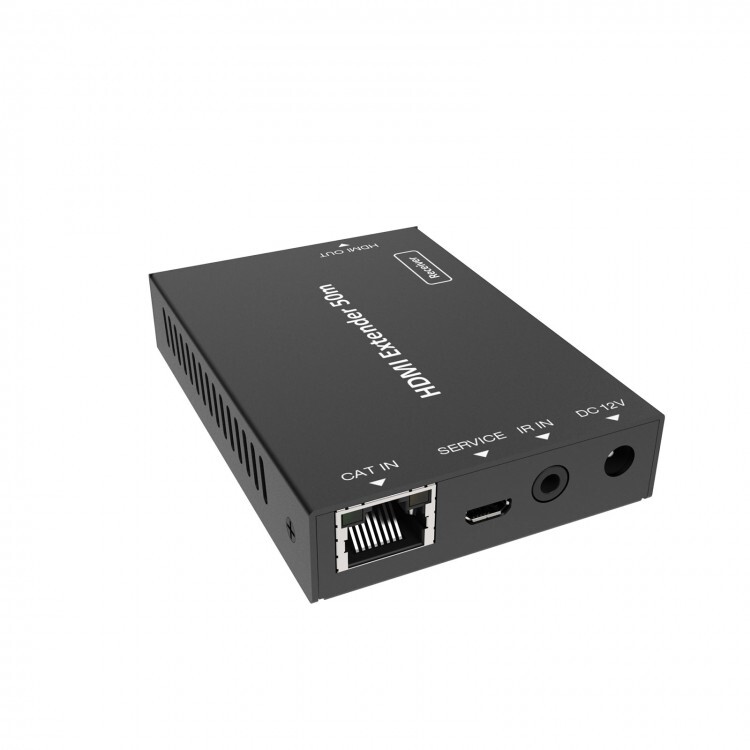

② 1× HDMI 18Gbps Extender ( Receiver)
③ 1× IR Blaster cable (1.5 meters)
④ 1× 20~60KHz IR Receiver cable (1.5 meters)
⑤ 1× 12V/1A Locking Power adapter
⑥ 4× Mounting Ears
⑦ 1× User Manual


12 Month Warranty

SKU AA6250
Barcode # 9351634016235
Brand Playvision
Shipping Weight 1.2600kg
Shipping Width 0.260m
Shipping Height 0.080m
Shipping Length 0.360m
Shipping Cubic 0.007488000m3
Unit Of Measure ea
Assembled Length 0.250m
Assembled Height 0.010m
Assembled Width 0.200m
