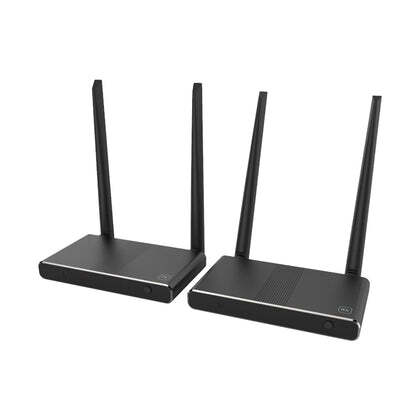

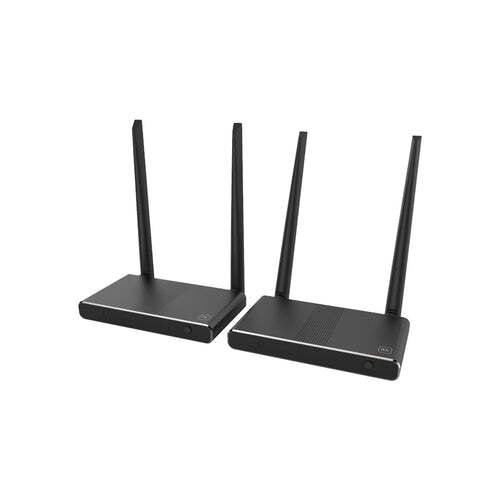

HDMI 1080p Wireless AV Sender with USB & Infra-red Control

Transmit HD video with USB and IR extender control

This full features HDMI Wireless Audio and Video sender will transmit AV signals up to 30m in range direct lline of sight.The Transmitter unit has a HDMI pass through, that means that you do not need a HDMI splitter from the source end to be able to use your main display and the transmitter together. It also have 2 x USB A ports for keyboard and mouse connectivity.

This wireless system sends full 1080p AV with low latency (below 50msec) to provide crystal clear HD videos. It also incorporates a wide-band infra-red controller (20khz - 60khz) to suit a wide variety of devices. This allows control of the source from the receiver end.

Features:



• Digital 2.4G & 5GHz dual frequency wireless A/V transmission

• HDMI 1.4b (6.75Gbps), HDCP 1.4 and DVI compliant

• Full HD 1080p transmits up to 30 meters wirelessly in open space

• Extends infrared remote to control source device from display side

• USB HID transmission from display to source

• Simple Plug and Play, no software installation required



Specifications:

HDMI Compliance    HDMI 1.4b
HDCP Compliance    HDCP 1.4
Video Bandwidth    6.75 Gbps
Video Resolutions    up to 1080P@50/60Hz
Color Space    RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth    8-bit
HDMI Audio Formats    LPCM 2CH
Wireless Standard    802.11a/b/g/n
Modulation Method    BPSK/QPSK/16-QAM/64-QAM
Wireless Band    2.4GHz, 5GHz ISM Band
Operation Range    Up to 100 meters in open space
IR Frequency    20KHz - 60KHz
ESD Protection     Human   body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Transmitter    Inputs:     1x HDMI Type A [19-pin female]
Outputs:  1x HDMI Type A [19-pin   female]
                1x USB [ Mini USB   Type ]
                1x IR Out [3.5mm   Stereo Mini-jack]
Receiver    Inputs:     2x USB [USB Type A]
                1x IR In [3.5mm Stereo   Mini-jack]
Outputs:  1x HDMI Type A [19-pin female]
Mechanical
Housing     Aluminum   Enclosure
Color    Black
Dimensions    142mm [W] x 80mm [D] x 19mm [H]
Weight    TX:   270g RX: 260g
Power Supply    Input:   AC100 - 240V 50/60Hz
Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption    3W   (Max)
Operation Temperature    32   - 104°F / 0 - 40°C
Storage temperature    -4   - 140°F / -20 - 60°C'
Relative Humidity    20   - 90% RH (no condensation)
