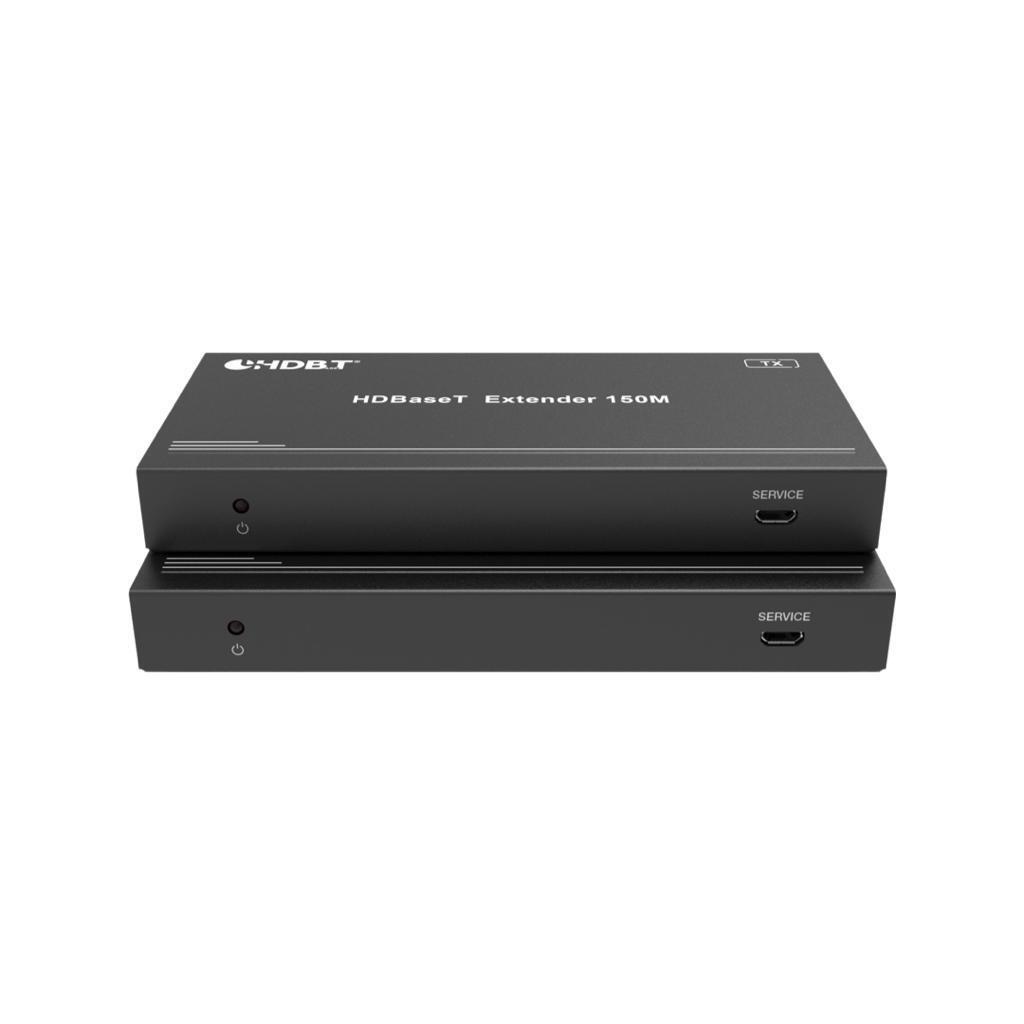

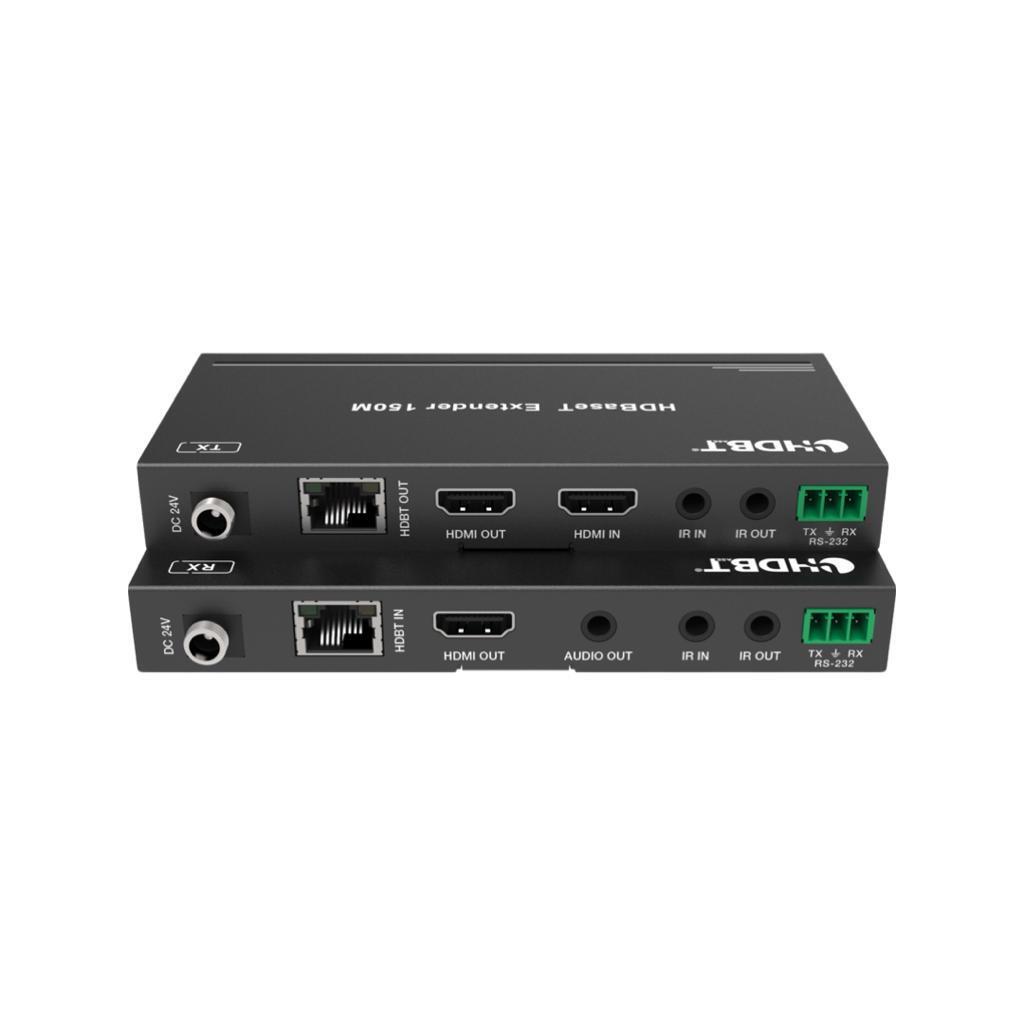

HDBaseT HDMI 2.0 18GBPS 150m Extender Over Cat 5E/6 with Bi-directional Infra-red Repeater

150m HDBaseT HDMI 2.0 Extender over Cat 5 and Cat 6

This 18Gbps HDMI 2.0 Extender utilising HDBaseT protocol via Cat5e/Cat6 ethernet cables. It is also HDCP2.2. compliant and supports Transfer Bidirectional Infrared control signal/RS232 signal/Ethernet together with the HDMI signal.

Perfect for new 4K video sources such as IQ4, Playstation 4 Pro or Xbox S One and other devices that require 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4 / YCBCR 4:2:2 specifications.

Features

• HDMI 2.0b (18Gbps), HDCP 2.2 and DVI 1.0 compliant

• Video resolutions up to 4K2K@50/60Hz (YUV444)

• 10bits HOR (High Dynamic Range) pass through

• Supports HDMI High Bit Rate(HBR) audio pass through

• Supports CEC bypass

• Optical audio supports LPCM 2CH, Dobly Digital 2/5.1 CH, DTS 2/5.1 CH

• High bit rate audio transmission via HDMI Product Features

• The maximum transmission distance is 150 meters using cat6/6a network cable

• Support POC (Power over Cable) function

• Two - way broadband infrared control signal transmission

• Rs-232 control signal transmission through

• The receiving end supports audio stripping output
