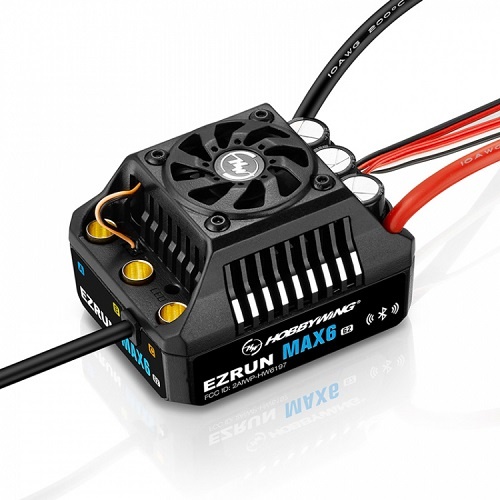

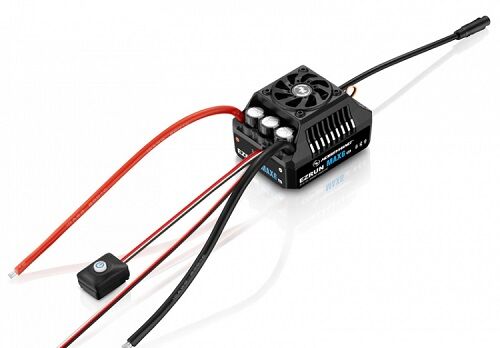

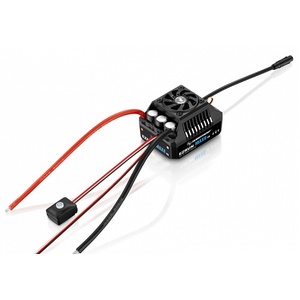

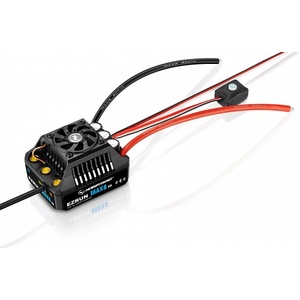

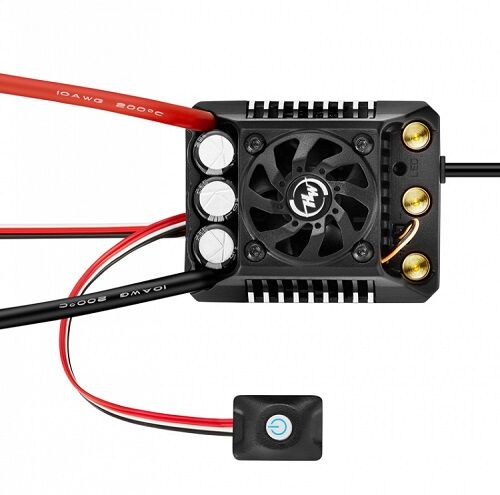

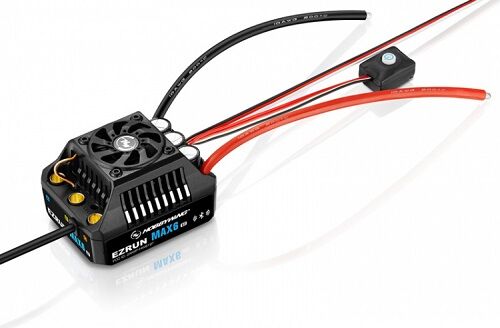

EZRUN MAX6 G2 200A Speed Control

Brushless ESC Upgrade for RCs

---

From the Inside Out – Fully Upgraded

Sensored 8S ESC for Extreme Performance

The Hobbywing EzRun Max6 G2 is a next-gen 1/6 scale ESC designed for high-powered 6S–8S RC builds. Now equipped with advanced waterproof sensored technology and support for sensorless operation, it delivers up to 200A of current with precision and control across the entire RPM range.

Whether you're launching off the line, blazing through high-speed passes, or crawling with pinpoint accuracy, the Max6 G2 provides unmatched power, responsiveness, and smooth throttle delivery.

---

Key Features

IP67-Rated Waterproof Sensor Interface

• Sealed sensor port design enhances waterproofing and dustproofing.

• Built to handle harsh environments: mud, snow, water, sediment, and ice.

High-Performance Switch-Mode BEC

• Continuous output: 8A | Peak output: 25A

• Adjustable voltage: 6.0V / 7.4V / 8.4V

• Fully compatible with today's most demanding high-voltage servos.

Turbo Timing Support

• Supports up to 24° Turbo Timing, unlocking ~20% more RPM.

• Optimized for use with EzRun 4990SD / 5690SD G2 motors.

Note: Turbo timing only available with compatible Hobbywing G2 motors.

Integrated Bluetooth Module (in switch)

• Configure, update firmware, and monitor performance via HW Link V2 app.

• No external programming devices needed.

• Supports real-time telemetry: RPM, throttle, voltage, temperature, and current.

Data Logging + Graphing

• Built-in data recorder with up to 10 minutes of runtime data.

• Analyze performance metrics directly from your smartphone.

Effective Bluetooth range: approx. 5 meters.

Smart Cooling System

• Intelligent fan control engages only when thermal thresholds are met.

• Reduces dust intrusion and prolongs fan life.

---

Intelligent Freewheeling Technology

• Higher drive efficiency

• Lower heat output

• Cooler operating temps compared to the previous generation

Under high loads, MAX6 G2 temps are comparable to the MAX5.

This advanced algorithm reduces switching losses, delivering more usable power and improving system reliability across longer runs.

---

All-Terrain, All-Weather Ready

• IP67 waterproof and dustproof rating

• Ready for mud, sand, water, ice, and snow

• Keeps performing in harsh, real-world RC environments

Note: IP67 rating is not permanent. Avoid long-term submersion or wear-related degradation may occur.

---

Built-In Anti-Spark Circuit

• Protects your high-voltage battery plugs from arcing during connection

• Ensures safer plug-ins with 6S–8S setups

---

Perfect Pairing with EzRun 4990/5690 G2 Motors

• Unlock full performance and protection features with Hobbywing G2 motors

• Software-based motor overheat protection

Note: Non-G2 motors do not support temperature monitoring or overheat protection.

---

Whether you're bashing, racing, or crawling at extreme voltages, the Max6 G2 delivers the technology, power, and reliability that serious 1/6 scale RC enthusiasts demand.



Specifications

• Type: 1/7-1/6 scale, Brushless, Sensored IP67 ESC
• Cont./Peak Current: 200A/1200A
• Input Voltage: 3-8S Lipo
• BEC Output: Switch-mode 6V/7.4V/8.4V @8A
• Input Wires: 10AWG-200MM
• Input Connectors: No
• Output connectors: 6.5mm Connectors (Female)
• Size: 70x56x45.5mm
• Weight: 245g
• Fan Size: 35x35x10mm
• Fan Input voltage: 5-8.4V
• Fan Input Connector: Powered by BEC

ESC Programing via:

• SET Button on ESC: Not Supported
• LED Program Box: Not Supported
• LCD G2 Program Box: Not Supported
• OTA Programmer: Not Supported
• Program Port: Built-in Bluetooth
• Firmware Upgrade: Supported

Data Recording:

• Extreme value: Supported
• Real-time Data: Supported
• Historical data (Graph): Supported

Applications:

• Motors: EzRun 4990SD/5690SD G2
• Vehicles: 1/6 & 1/7 On-road, Trucks, Monster Trucks
• Vehicle examples: Losi 1/6 Super Baja Rey, Traxxas XRT, Traxxas X-MAXX, ARRMA 1/7 Limitless, ARRMA 1/7 Fireteam, ARRMA 1/7 Mojave, Cen 1/7 Reeper, HPI Baja 5B
