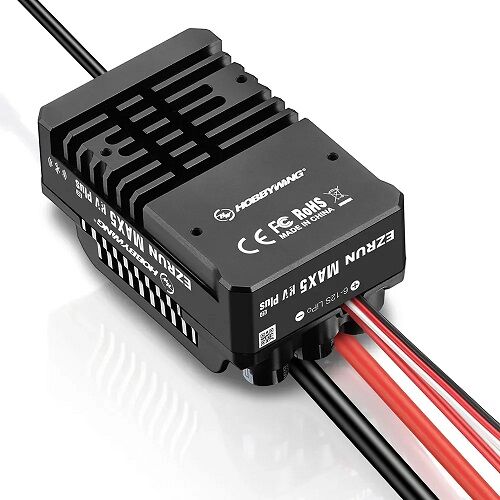

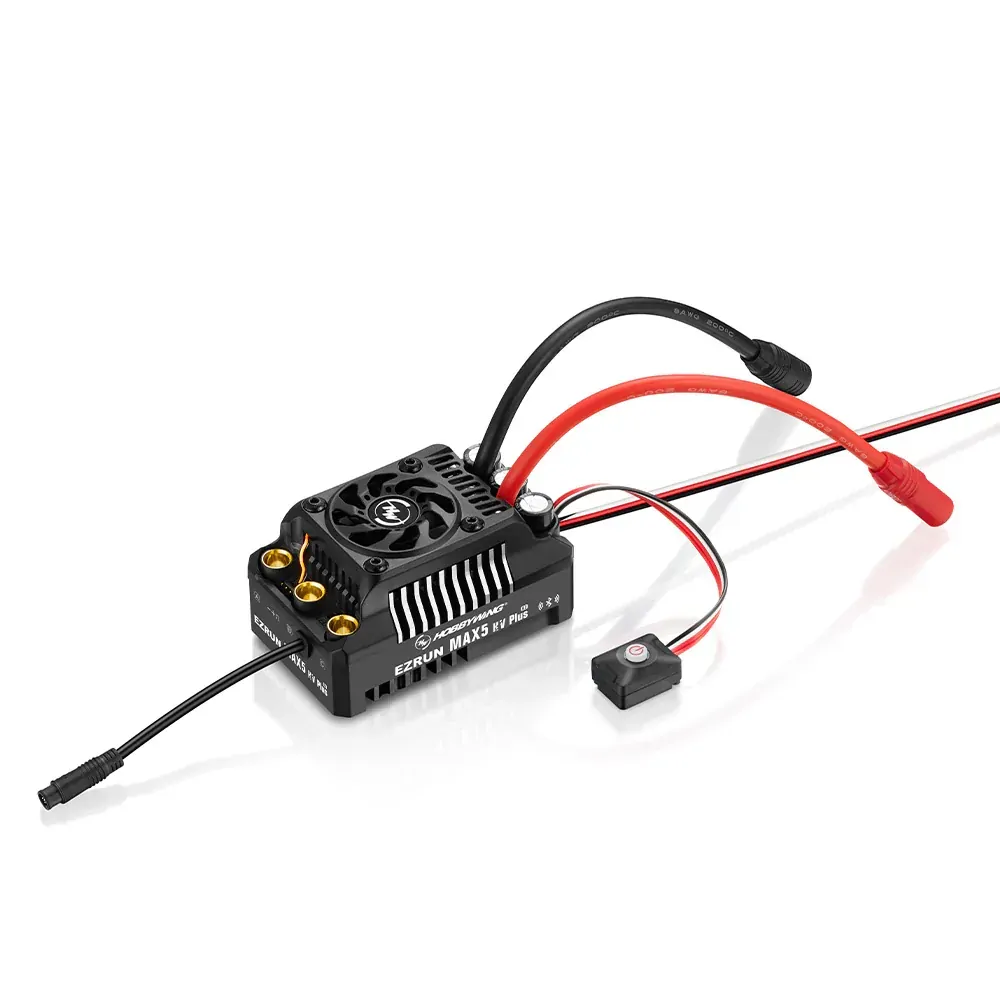

EZRUN MAX5 HV Plus G2 330A Speed Control

Brushless ESC Upgrade for RCs

The ESC features an innovative waterproof sensored interface, significantly improving protection against water and dust ingress. Whether you're running through sediment, snow, ice, or standing water, the system is designed to maintain performance and reliability in the harshest environments.

At its core is a high-output switch-mode BEC, supporting adjustable output voltages of 6.0V, 7.4V, and 8.4V—perfect for powering a wide range of high-voltage, high-torque servos used in today's demanding setups.

For racers looking to push the limits, the ESC supports Turbo Timing configurations, unlocking increased RPM and responsiveness when paired with compatible sensored motors—ideal for high-speed bashing or competitive racing.

A standout feature is the integrated Bluetooth module, built directly into the power switch. This allows for wireless configuration, data monitoring, and firmware upgrades via the HW LINK mobile app—no separate programmer required, making tuning and updates more accessible than ever.

Additional features include:

• Real-time data logging: Track key performance metrics on the go via the app

• Firmware upgrade support: Stay current with the latest ESC enhancements and optimizations

Whether you're tuning for the track or pushing limits off-road, this ESC delivers next-gen control, durability, and convenience—all in one compact powerhouse.

Specifications

Scale: 1/5th, 1/7th, 1/8th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: Waterproof

Specifications
Cont./Peak Current: 330A/2000A
Input Voltage: 6-12S Lipo
BEC Output: 6V/7.4V/8.4V adjustable, cont. current 8A (Switch regulator mode)

Wires & Connectors
Input Wires: Red-8AWG-200MM*1、Black-8AWG-200MM*1
Output Wires: No
Input Connectors: AS150-F plug - red shell, AS150-M plug - black shell
Output Connectors: 8.0MM Gold female plug

Esc Programming Via
SET Button on ESC: Not Supported
LED Program Box: Not Supported
LCD Program Box: Not Supported
OTA Programmer: Not Supported
Programming Port: Built-in Bluetooth

Firmware
Firmware Upgrade: Supported

Size & Weight
Size: 94.5*59.4*51.6mm
Weight: 450g(Including wires and plug)

Applications
Motors: Sensored Brushless motors & Sensorless Brushless motors
Vehicles: 1/8^th, 1/7^th and other model cars for extreme speed applications, 1/5^th trucks/monsters trucks for violent applications
