EZRUN 3652SD 3300KV BLACK G3 Sensored Brushless Motor
Power, Control & Durability for 1/10 short course trucks
SKU: TM0096

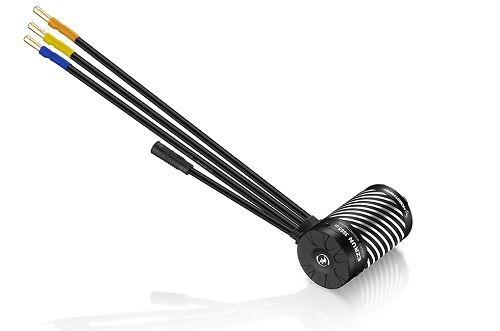

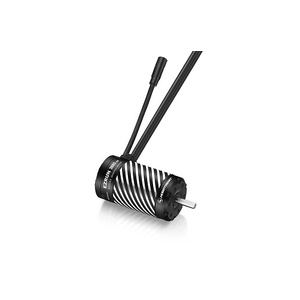

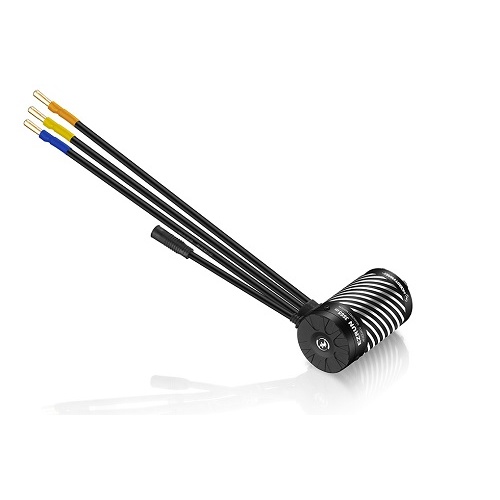

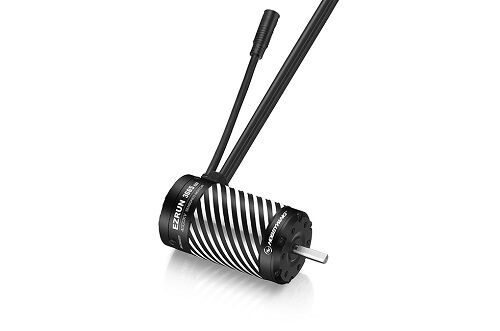

EZRUN 3652SD 3300KV BLACK G3 Sensored Brushless Motor
The EzRun SD G3 series (3652/3665) is the latest generation of sensored brushless motors from Hobbywing, engineered for high-performance 1/10 scale RC cars, trucks, and buggies. Featuring an upgraded sensored design, improved efficiency, and robust materials, this motor delivers powerful acceleration, smoother throttle control, and longer-lasting reliability.
Key Features
-
Upgraded Sensored System
Equipped with a new waterproof sensored cable interface and improved sensing technology, the G3 motor provides accurate rotor positioning and zero cogging torque. When paired with the EzRun MAX10 G2 ESC, the system ensures:-
100% sensored operation
-
Real-time motor temperature protection
-
Linear throttle response with maximum precision
-
-
Improved Efficiency & Power Output
-
+3% higher efficiency than the previous G2 motors
-
+5% more maximum output power for faster speeds and stronger torque
-
Runs cooler under the same load conditions, protecting performance during long sessions
-
-
Durable, High-Quality Materials
Every component is carefully chosen and approved by Hobbywing’s engineering team, ensuring exceptional durability and consistent performance:-
CNC aluminum casing for strength and cooling
-
High-quality precision bearings for smooth rotation
-
Ultra-thin silicon steel sheets to reduce eddy current loss
-
High-temp copper windings rated for 200°C
-
Explosion-proof rotor design
-
High-tolerance alloy output shaft for maximum durability
-
-
Modular Detachable Structure
Designed for easy disassembly and maintenance, the G3 motor makes cleaning and servicing simple, extending the motor’s life and maintaining peak efficiency. -
All-Weather Protection – IP67 Rating
Built to handle the toughest track conditions, the EzRun G3 features Hobbywing’s IP67 waterproof and dustproof system. The motor can run confidently in mud, sand, snow, and even through water, without compromising performance or damaging internal components. -
Smooth, Reliable Operation
With low cogging torque, stable power delivery, and high output efficiency, drivers enjoy excellent throttle control for technical maneuvers such as power wheelies, straight-line acceleration, and controlled jumps.
Applications
-
Scale: 1/10 RC cars, trucks, and buggies
-
Suitable for: Off-road, on-road, and all-weather RC driving
-
Best performance when paired with EzRun MAX10 G2 ESC
3 Month Warranty
Specifications
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 4
Relevant Parameters
KV Rating: 3300KV
LiPo Cells: 2-3S
No-load Current (A): ≤3.9A
Size & Weight
O.D.(mm): 37
Length (mm): 53
Shaft Diameter (mm): 3.175(0.125in)
Weight: 228g
Front & Rear Bearing: D13*D5*T4 | D11*D5*T5
Connectors: 4.0(male)
Other Parameters
ESC & Vehicles: 1/10th On-road/Off-road Short Course Truck(Light-duty)
SKU | TM0096 |
Barcode # | 9351634090228 |
Brand | Hobbywing |
Shipping Weight | 0.3000kg |
Shipping Width | 0.060m |
Shipping Height | 0.060m |
Shipping Length | 0.100m |
Shipping Cubic | 0.000360000m3 |
Unit Of Measure | ea |
Assembled Length | 0.060m |
Assembled Height | 0.045m |
Assembled Width | 0.045m |
