BMP180 Barometric/Temperature and Altitude Sensor Module for Arduino Projects

Temperature and Barometric Sensor Module

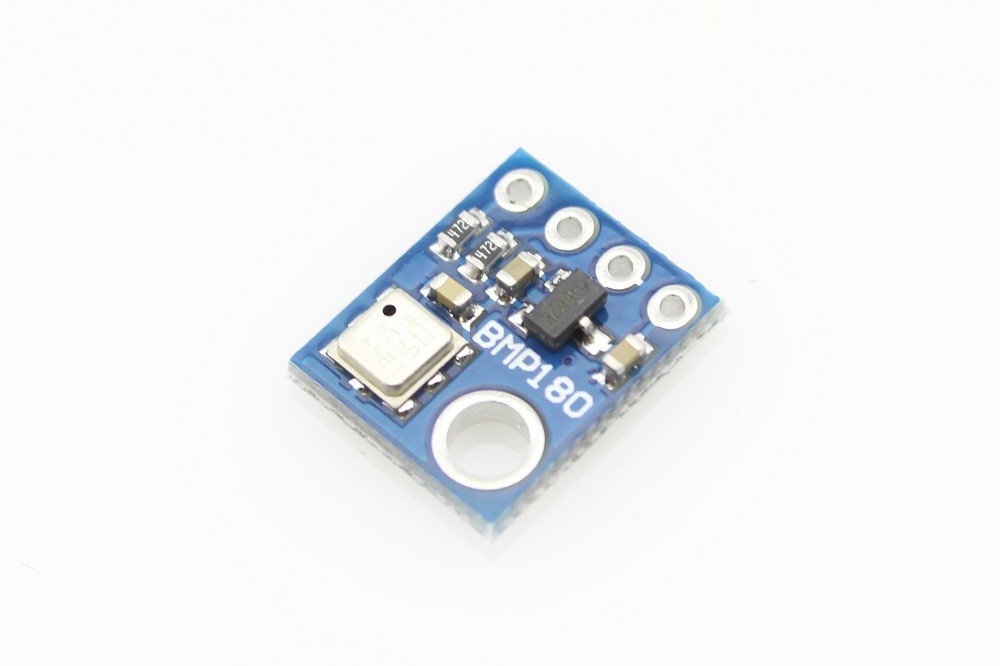

This precision sensor from Bosch is the best low-cost sensing solution for measuring barometric pressure and temperature. As pressure changes with altitude you can also use it as an altimeter! The sensor is soldered onto a PCB with a 3.3V regulator, I2C level shifter and pull-up resistors on the I2C pins. The BMP180 is the next-generation of sensors from Bosch, and replaces the BMP085. The good news is that it is completely identical to the BMP085 in terms of firmware/software/interfacing - you can use any example code/libraries for BMP085 as a drop-in replacement.

Specification

• Pressure sensing range: 300-1100 hPa (9000m to -500m above sea level);
• Up to 0.03hPa / 0.25m resolution;
• -40 to +85°C operational range, +-2°C temperature accuracy

Please download above PDF for wiring instructions and sample code
