97mm 12V DC Ball Bearing Cooling Fan Blower

Cooling Fans and Accessories

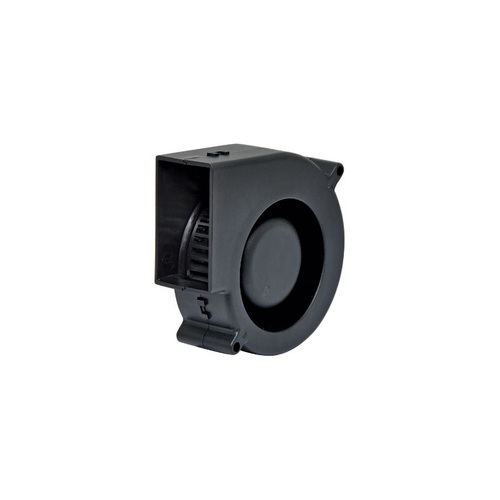

A 12V DC 97mm Sunon Ball Bearing Cooling Fan with thermoplastic frame

Designed for long-life and minimal noise operation.

Sunon® fans are manufactured to a very high standard and hold CSA and UL listings.



SPECIFICATIONS:

Mechnical Characteristics

• Motor Design: 2 phases, 4 poles brushless DC motor
• Bearing System: Precision ball bearing system
• Frame Material: Thermoplastic PBT of UL94V-0
• Blade Material: Thermoplastic PBT of UL94V-0
• Direction of Rotation: Single direction exhaust
• Mounting Holes: 2x 4.5mm holes
• Weight: 185g
• Dimensions: 97 x 94 x 33mm

Electrical Characteristics

• Rated Voltage: 12V DC
• Rated Current: 600mA
• Rated Power: 7.2W
• Operating Voltage Range: 6~12V DC
• Starting Voltage: 6V DC (25°C Power On/Off)
• Operating Temperature: -10°C ~ +70°C
• Storage Temperature: -40°C ~ +70°C

Performance Characteristics

• Rated Speed: 3600 RPM ±10%
• Air Flow: 30.5 CFM
• Static Pressure: 0.92 Inch-H2O
• Noise Level: 55.8dB(A)
• Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
• Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
• Protection: Automatic restart, polarity protection
