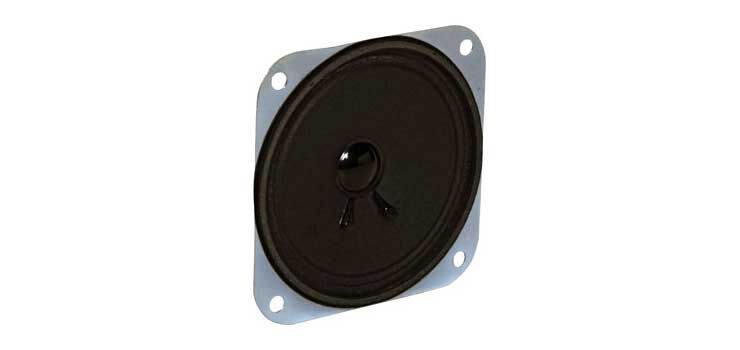

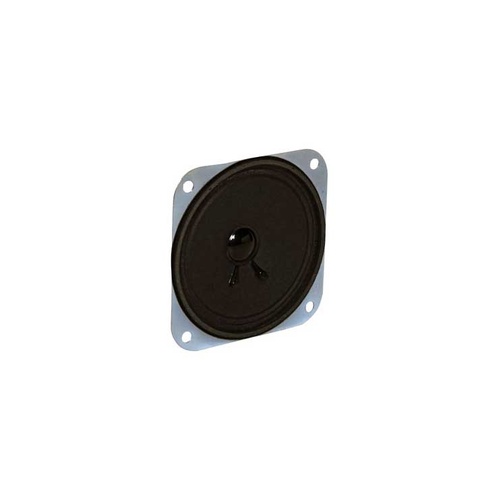

87mm 4W 4/8 Ohm Paper Cone Speaker

Great as a replacement car speaker

4 watt max. 4Ω and 8Ω taps. Great as a replacement car speaker. Diagonal mounting hole centres at 100mm. Overall Depth: 32mm.

Specifications

• Nominal Impedance 8 ± 1.2 ohms At 500Hz
• V.C Resistance 7.6 ± 0.53 ohms
• Resonance Frequency 200±40Hz
• Power Handling (Rated Power) 3 Watts (IEC STD)
• MAX .Power 4 Watts
• Sensitivity 85±3dB At 200/400/600/800/1000 Hz 1W/1M
• Frequency Range Fo-20 KHz deviation -10db
• Nominal Impedance 8 ± 1.2 ohms At 500Hz
• V.C Resistance 7.6 ± 0.53 ohms
• Resonance Frequency 200±40Hz
• Power Handling (Rated Power) 3 Watts (IEC STD)
• MAX .Power 4 Watts
• Sensitivity 85±3dB At 200/400/600/800/1000 Hz 1W/1M
• Frequency Range Fo-20 KHz deviation -10dbMagnet: Ø45mm x Ø22mm x 8mm Ferrite
• Operating Temperature: -20ºC to +60ºC
• Housing: Metal
• Diaphragm Material: Paper
• Weight: 145g

  *Specifications are subject to change without notice.
