1.5" 4 Ohm 5WRMS Full Range Paper Cone Speaker Driver

Great as a replacement Audio speaker

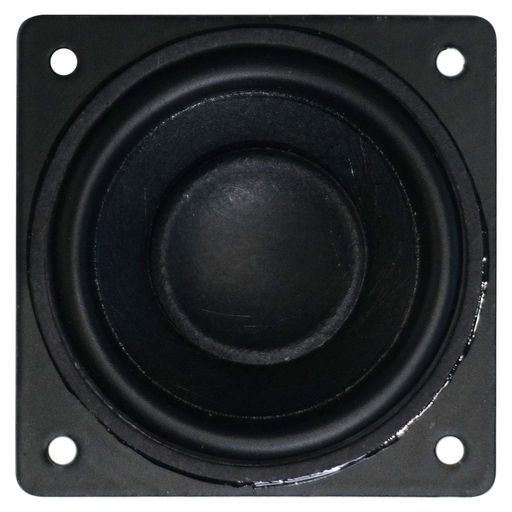

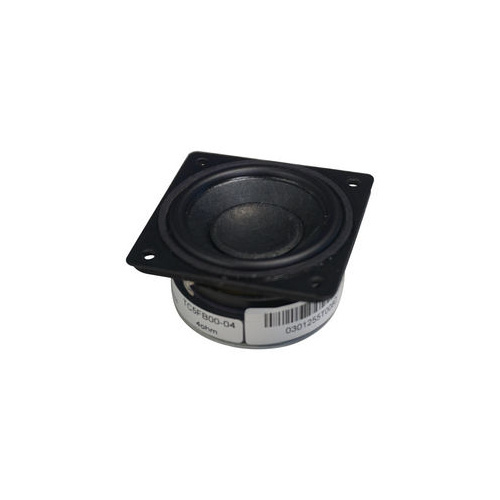

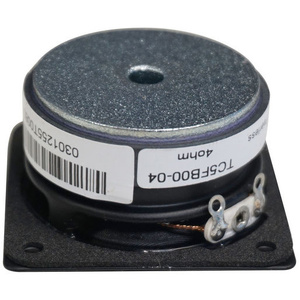

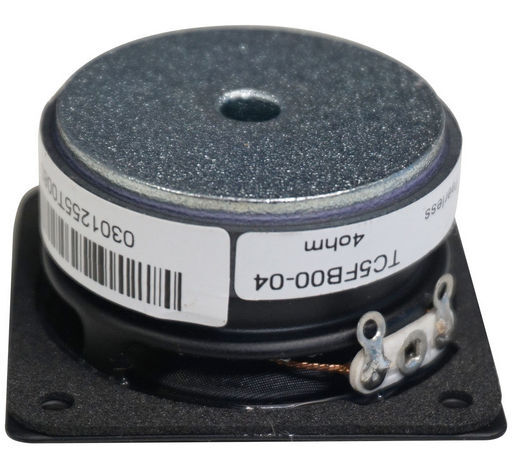

The Peerless TC5FB00-04 is a compact 1½" full-range driver featuring a lightweight paper cone and ferrite magnet, engineered for solid acoustic performance in space-constrained designs. Its square frame with a round diaphragm allows for snug integration into tight enclosures, making it ideal for slim sound bars, portable Bluetooth speakers, desktop monitors, and other embedded audio applications.

Features:

• Compact size, just 40.5 x 40.5mm, ideal for tight enclosures.
• Full range output covers 180 Hz to 20000 Hz.
• Lightweight paper cone, with PU surround.
• Reliable ferrite magnet for natural sound reproduction.

Specifications:

Cms    0.870mm/N
Coil    16.3mmØ
Depth    19.8mm
Diam.    46mmØ
Fs    250Hz
Hole    36.5mmØ
Hole Cutout    36.5mmØ
Impedance    4Ω Re 3.2Ω
Impedance (Ohm)    4 ohm
Inch    1.5
Le    0.056mH
Manufacturer    Peerless
Mms    0.471g
Power    5Wrms
Power (RMS)    0-50 Watt
Price Type    each
Prms    5W
Qes    2.43
Qms    4.64
Qts    1.6
QTY    1
Re    3.2Ω
Sd    7.55cm²
Sens.    78.3dB
Series    Peerless Full Range
Size    1.5'
Type    Full Range
Vas    0.07L
Width    40.5mm
Zn    4Ω
