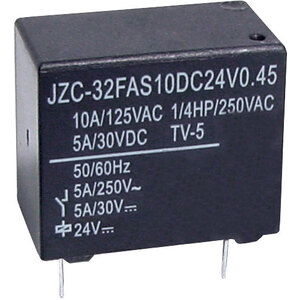

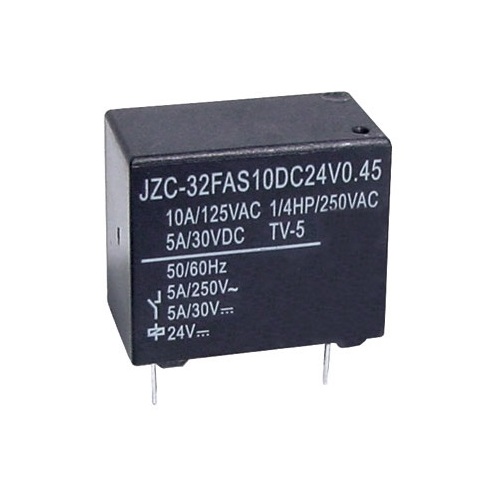

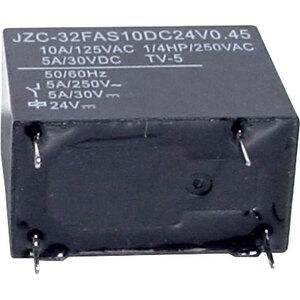

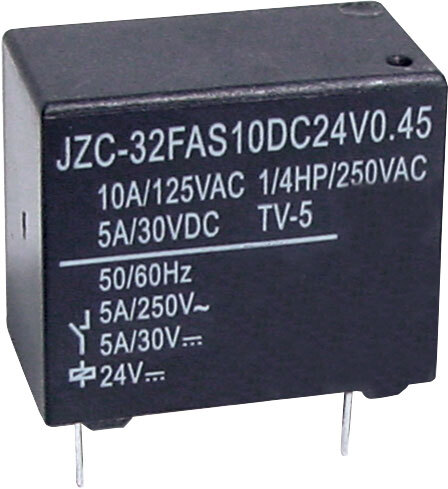

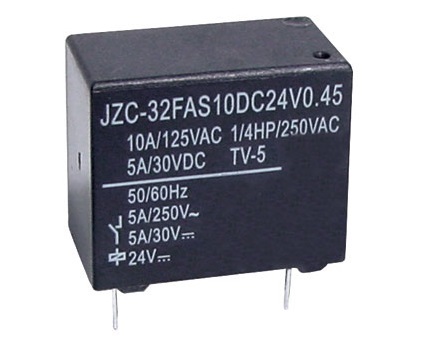

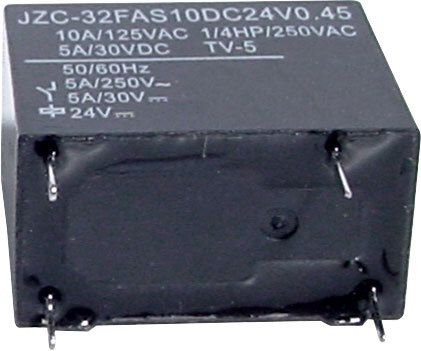

7.5A 24VDC SPST PCB Mount Relay

24V Relay

SKU: ER0034

Sold Out

Buy In Bulk & Save!
Buy 4 to 10: Pay $3.18
Buy 11 to 20: Pay $3.02
Buy 21 to 100: Pay $2.87

Calculate Shipping

7.5A 24VDC SPST PCB Mount Relay

24V Relay

Non-Sealed type, suitable for flow soldering.

  • Max switching voltage: 277V AC, 30V DC
  • Max switching current: 10A
  • Max VA (Watts): 1250VA (150W)
  • Contact material: Silver Alloy
  • Coil resistance: 1280Ω
  • Max coil power: 200mw
  • Insulation resistance: >100MΩ @ 500V DC
  • Dielectric strength (for 1 min):
  • 1000V AC between open contacts
  • 2500V AC between coil & contact
  • Electrical life: 100,000 operations
  • Mechanical life: 10 million operations
  • Dimensions: 10W x 19L x 15H mm

    *Specifications are subject to change without notice

SKU ER0034
Barcode # 9351634054299
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
