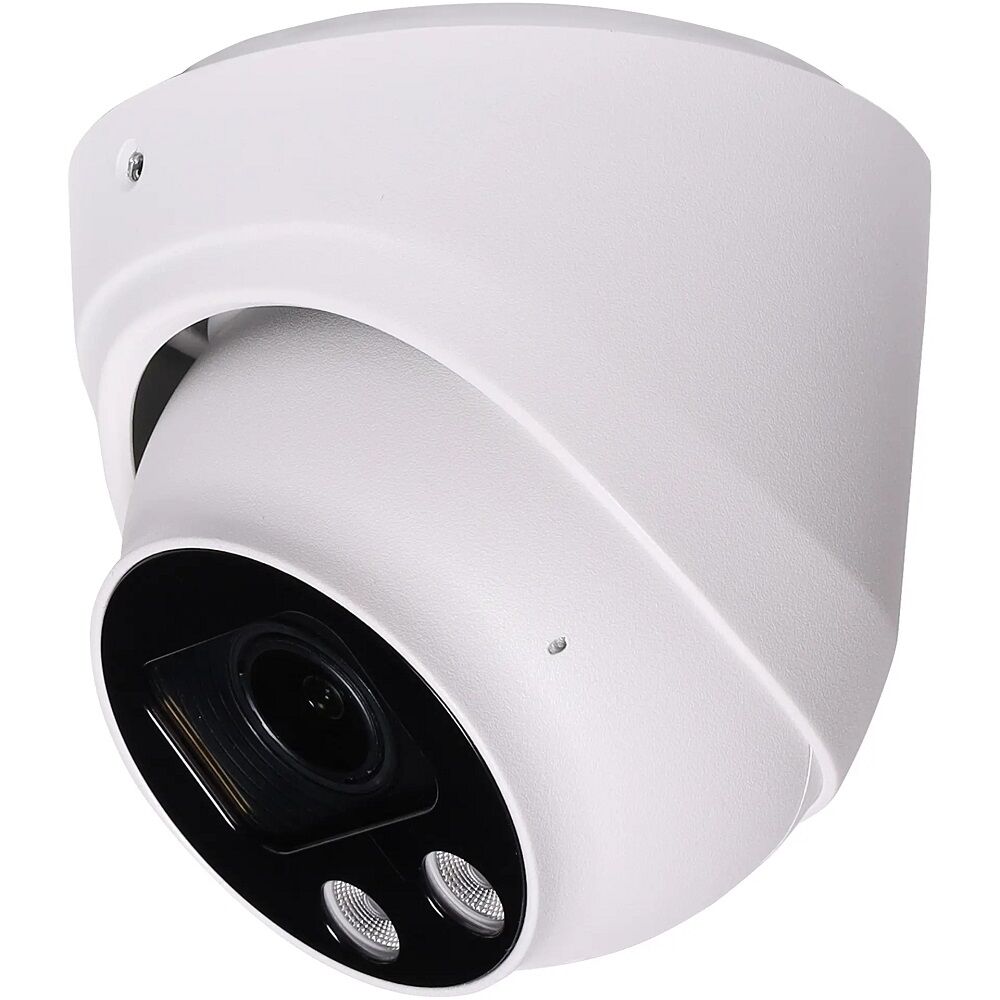

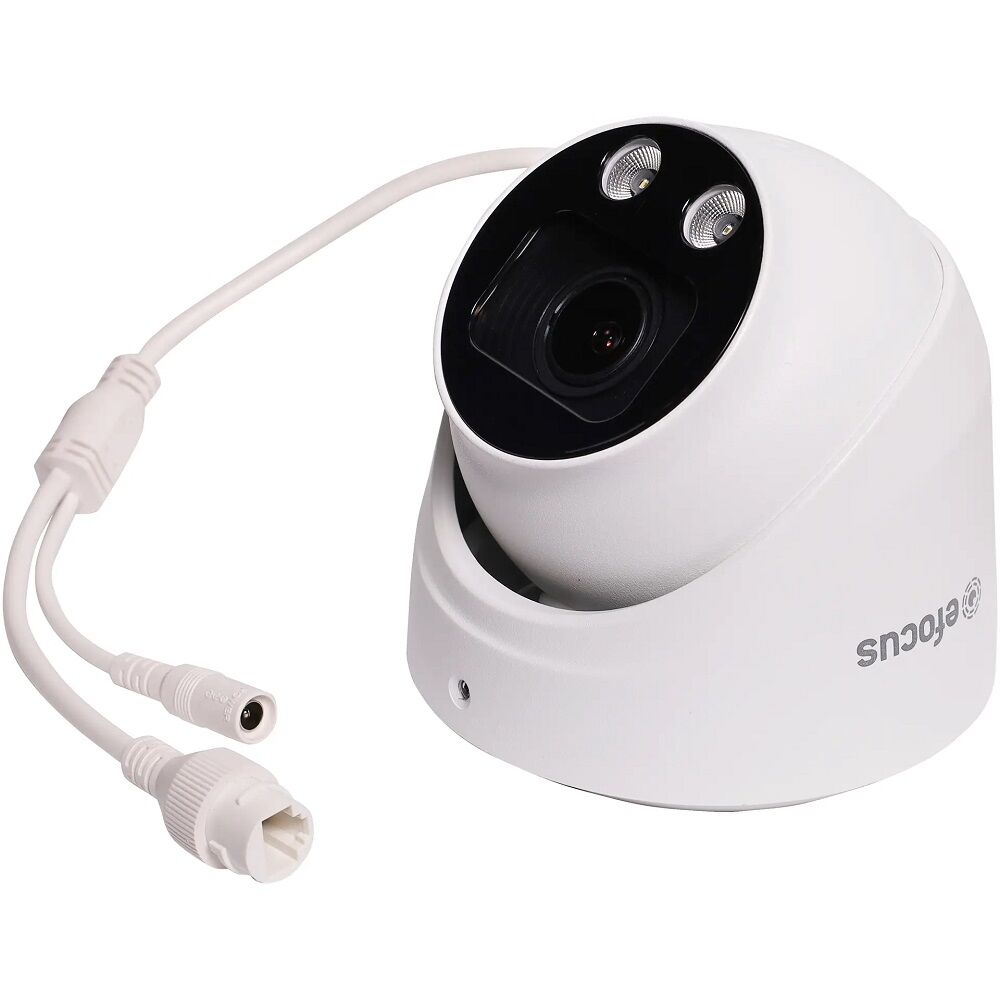

5MP Dome IP POE Camera

Hhigh resolution 5 megapixel IP dome camera

A high resolution 5 megapixel IP dome camera featuring a 1/2.7"Progressive Scan CMOS Sensor. Ideal for providing additional detail to footage/monitoring when needed. Offering a clear 2880x1620 image at 30fps for integration with HD network video recorders. Supports ONVIF protocol for integration with most NVRs. Includes AI human detection features such as face, intrusion, line cross, loiter, people gathering and motion detection.



Features

• High quality imaging with 2MP resolution
• 1/2.7"Progressive Scan CMOS Sensor
• Support H.264/H.265/MJPEG Compression
• Infrared Distance：40m
• Support WDR
• Housing: Metal, IP67



Specifications:

Camera Module

Image Sensor: 1/2.7" Progressive Scan CMOS Sensor

Resolution: 5MP

Effective Pixels: 2968(H)*1674(V)

Compression:  H.264/H.265/MJPEG

Audio Compression: G711A/U,AAC

TV System: PAL/NTSC

Electronic Shutter Time: Auto: 1/3-1/100000Sec

Minimun Illumination: Colour: 0.01 Lux@(F1.6, AGC ON), B/W: 0 Lux with IR

S/N Ratio: 60dB

Scanning System: Progressive

Video Output: Network

Reset Button: Optional



Lens

Focal Length & FOV: 2.8 mm, horizontal FOV 109°, vertical FOV 58°, diagonal FOV 129° 4 mm, horizontal FOV 91°, vertical FOV 47°, diagonal FOV 109°

Lens Type: Fixed focal lens, 2.8mm

Focus Control: Fixed

Aperture: F1.6

Pixels: 5MP



Night Vision

Supplement Light: 2PCS

Supplement Light Distance: 40M

Supplement Light Status: Auto Control

Supplement Light Power: On Smart, Manual & Timed mode



Ethernet

Ethernet: RJ-45 (10/100Base-T)

Protocol: TCP/IP, IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, RTCP, PPPoE, NTP, SMTP, UDP, SNMP, Qos, 802.1x

ONVIF: Support ONVIF 24.12(Profile S/T/G/M)

P2P: YES

POE: Internal, Support IEEE 802.3af

Video Delay: 300ms (Within the Lan)

Main Stream 1: 2880*1620@30fps

Main Stream 2: 2560*1440@30fps

Main Stream 3: 1920*1080@30fps 1280*720@30fps

Sub Stream 1: 1280*720@30fps

Sub Stream 2: 720*480@30fps

Sub Stream 3: 352*288@30fps

IE Browser: Microsoft Edge, IE11, Google Chrome, Firefox, Mac Safari

Smart Phone: iPhone, Android



AI Function

Intelligent Analysis: Intrusion Detetion(based on human and Vehicle Detection), Motion Detection(supports the detection based on human movement)



Camera Features

Day/Night: Colour/ B&W (IR-CUT)

Image Config: Saturation/Brightness/Contrast/Sharpness, Mirror, 3D NR, White Balance, Anti Flicker, Video Tampering, HLC, Distortion

Defog Mode: Support

ROI: Support

BLC: Support

WDR: DWDR

Motion Detection: Support (support enable the detection based on human and Vehicle movement)

Privacy Masking: 3 Rectangular Zone

Recording Mode: NVR/CMS/Web

Languages: Chinese Simplified, Chinese Traditional, English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian, Czech



Interface

Audio: Default: Without Option: Built in Mic Option: Audio In Option: Audio I/O

SD Card Slot: Default: Without Option: External SD card slot (Max 512GB)



General

Housing: Metal, IP67

Anti-cut Bracket: NO

IR Cut Filter: YES

Operation Temperature: -30℃ ~ +60℃ RH95% Max

Storage Temperature: -30℃ ~ +60℃ RH95% Max

Power Source: DC12V±10%, 700mA

Dimension:￠96 x 91(H) mm

Weight: 461 g
