5MP Analogue IR Dome Camera with Varifocal lens

HD Camera w/ selectable video output AHD/TVI/CVI/CVBS

SKU: SR2554

RRP $199.00
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $113.05 ea
Buy 11 to 20: Pay $107.38 ea
Buy 21 to 100: Pay $96.66 ea

Calculate Shipping

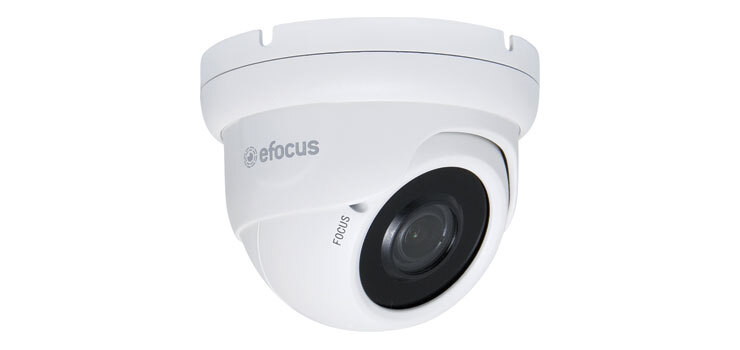

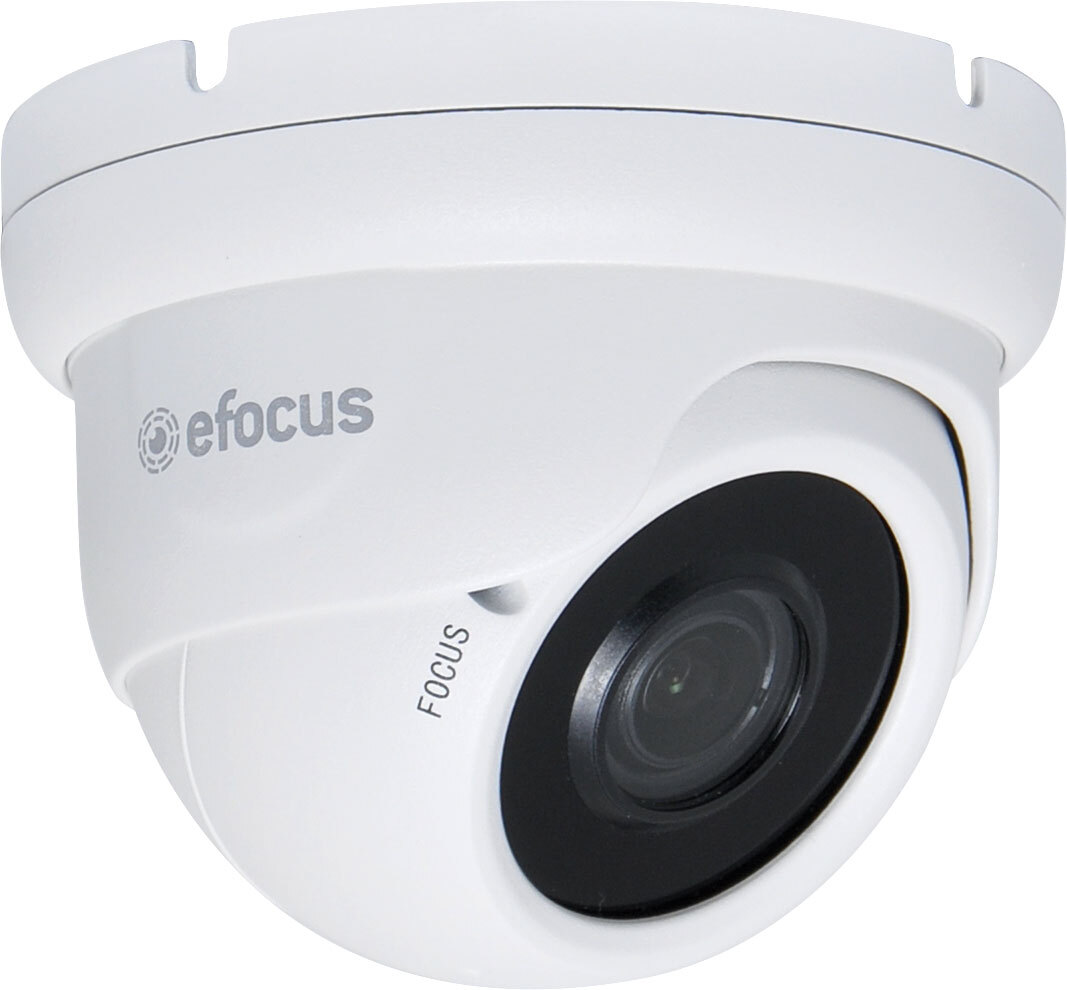

5MP Analogue IR Dome Camera with Varifocal lens

HD Camera w/ selectable video output AHD/TVI/CVI/CVBS

This surface mount dome camera housed in vandal resistant aluminium housing with infra red illumination for night time viewing. High resolution Sony sensor produces clear crisp video signal. Lens has an adjustable focal length (2.8-12mm). Specifically designed for installation in applications where damage resistance is paramount eg bus or train stations, carparks etc. Operating temperature down to -10°C for cool room use.

The 1080P function of this camera is only compatible with 1080P AHD DVRs. Video output is selectable between AHD/TVI/CVI/CVBS via the cable toggle control.


  • Video Output Mode: AHD/TVI: 5M@20fps/12.5fps, 4M@30fps, 2M@30fps; CVI: 4M@30fps, 2M@30fps


  • Camera

  • Image Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS sensor

  • Image Resolution: 5M:2592*1944 4M:2560*1440 2M:1920*1080

  • TV System: PAL/NTSC

  • Electronic Shutter: AUTO

  • Scanning System: Progressive Scan


  • Lens

  • Focal Length: 2.8-12mm

  • Focus Control: Manual

  • Lens Type: Varifocal


  • Night Vision

  • IR Cut Filter: YES

  • Infrared LED: 14μ x 24PCS

  • Infrared Distance: 30M

  • IR Status: AGC Auto Control


  • Camera Features

  • Day/Night: Yes

  • OSD Menu: Yes


  • UTC: Yes

  • Noise Reduction: DNR

  • White Balance: Auto/Manual

  • Gain Control: Auto


  • General

  • Housing: Metal IP67

  • Bracket: No

  • Operation Temperature: -10℃ ~ +60℃ RH95% Max

  • Storage Temperature: -20℃ ~ +60℃ RH95% Max

  • Power Source: DC12V±10%, 750mA

  • Dimensions: ¢119 x 98(H) mm

  • Weight: 800g

    *Specifications are subject to change without notice.

SKU SR2554
Barcode # 9351634063987
Shipping Weight 0.5000kg
Shipping Width 0.250m
Shipping Height 0.150m
Shipping Length 0.200m
Shipping Cubic 0.007500000m3
Unit Of Measure ea
