4K HDMI 2.0 HDBaseT Extender via CAT6 Wall Plate

4K HDMI HDBaseT Extender with Wall Plate Receiver

This 4K60 HDBaseT wall plate provides the latest connectivity for HDMI signals over long distances up to 40m (4K @ 60Hz) or 70m (1080p) using standard Ca6/6a/7 UTP cabling. Perfect for boardrooms, conference venues, classrooms where long distances between source and display are common. The use of HDBaseT technology ensures optimum signal integrity without losses while providing the latest audio & video feature support (such as HDR10+, Dolby Atmos, DTSX, HD Master Audio and more). It also supports two-way IR and RS-232. Plus power over ethernet (PoE) makes installation simple. The wallplate is mated to a standard Australian electrical wallplate for simple installation. System includes 1 wallplate transmitter and 1 receiver. Includes power supply.

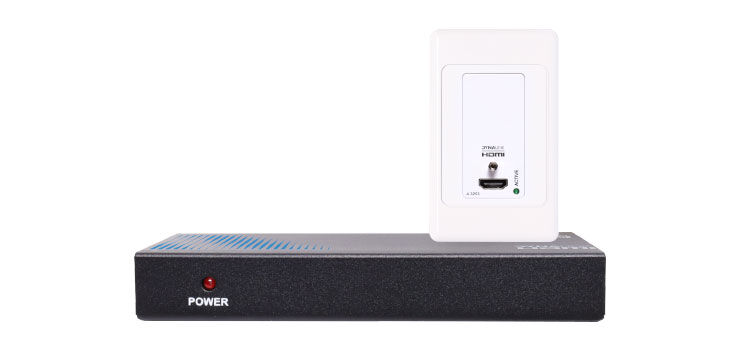

In the box:

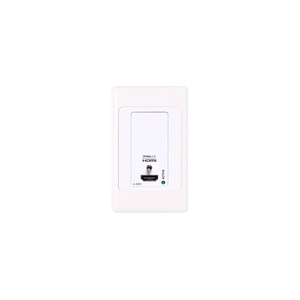

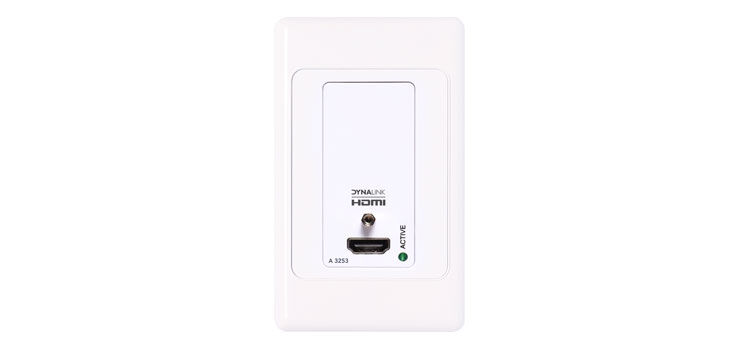

1 x Transmitter wallplate.

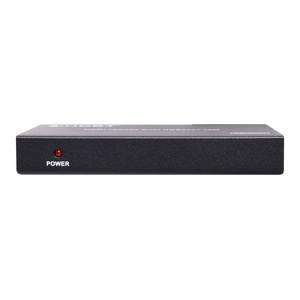

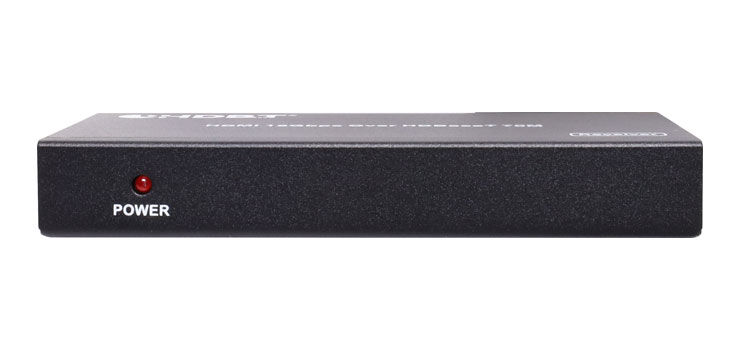

1 x Receiver unit.
1 x 24V DC power supply.
1 x User manual.


Features

• Compliant with HDMI 2.0b and HDCP 2.2 specifications.
• HDMI input supports a maximum video bandwidth of 18Gpbs.
• Video resolution supports up to 4K@60Hz 4:4:4.
• Through a single CAT6/6a/7 network cable, HDBaseT output can extend the video signal by 40 meters (resolution of 4K@60Hz) or 70 meters (resolution of 1080P@60Hz).
• Supported HDMI audio formats include Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; LPCM 2/5.1/7.1CH.
• Fitted to a standard Australian wallplate.
• Support POC power supply (only one-way power supply from receiver to transmitter)
• Transfer Bidirectional Infrared control signal together with the HDMI signal.
• Transfer Bidirectional RS-232 control signal together with the HDMI signal.

Specifications

• Audio Visual
• HDMI: HDMI 2.0b
• HDCP: HDCP 1.4 and HDCP 2.2
• Video Bandwidth: 18Gbps
• Video Resolution: up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
• Color Space: RGB/YCbCr 4:4:4, YCbCr 4:2:2
• Color Depth: 10-bit, 12-bit
• HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
• Optical Audio Formats    LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
•
• Transmitter Connections
• Inputs: 1x HDMI, 1x Infra-red (terminal block),  1x RS-232 (terminal block)
• Outputs: 1x HDBaseT Out (RJ45), 1x Infra-red (terminal block),  1x RS-232 (terminal block)
•

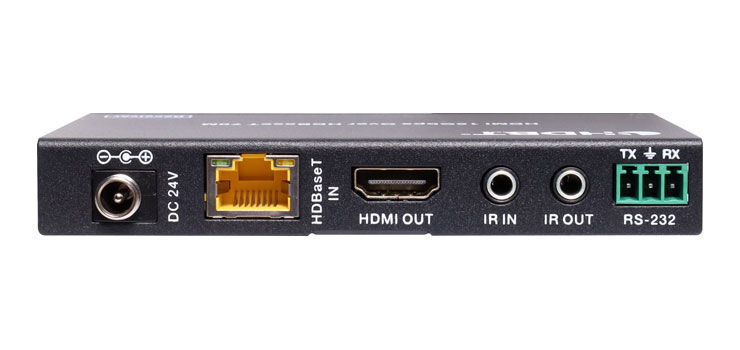

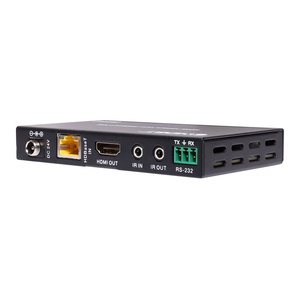

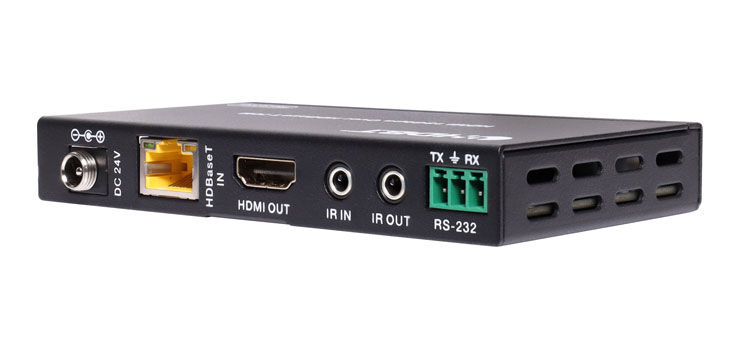

• Receiver Connections
• Inputs: 1x HDBaseT In (RJ45), 1 x Infra-red (3.5mm jack),  1x RS-232 (terminal block)
• Outputs: 1x HDMI, 1x Infra-red (3.5mm jack)
•
• General
• Housing:Plastic-Front Panel, Metal-Rear Case
• Wall Plate: Dimensions: 76W x 116H x 47Dmm 30mm
• Weight:  163g
• Power supply: POE power supply (only one-way power supply from receiver to transmitter)
• Power requirements: DC 24V/1A
• Power Consumption:  9W (Max)
• Operation Temperature:  0°C - 40°C

  *Specifications are subject to change without notice.
