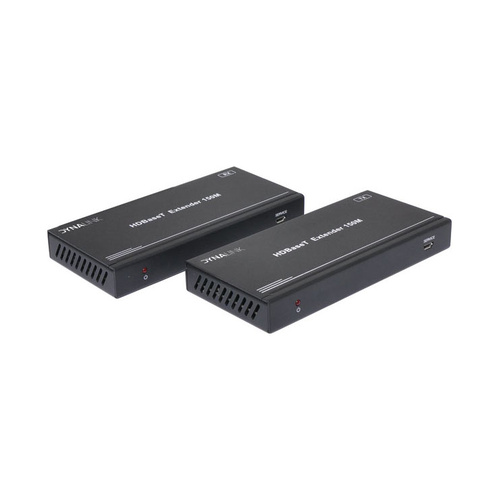

4K HDMI 2.0 HDBaseT Extender Transmitter and Receiver w/ IR Extender

4K HDMI HDBaseT Extender with Infra-red Extender

An 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 492ft / 150 meters between transmitter and receiver via a single CAT cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is available for output. It also supports de-embeded audio for L/R audio output and PoC function. In addition, the extender is equipped with two-way IR pass-through which allows for source and display control.

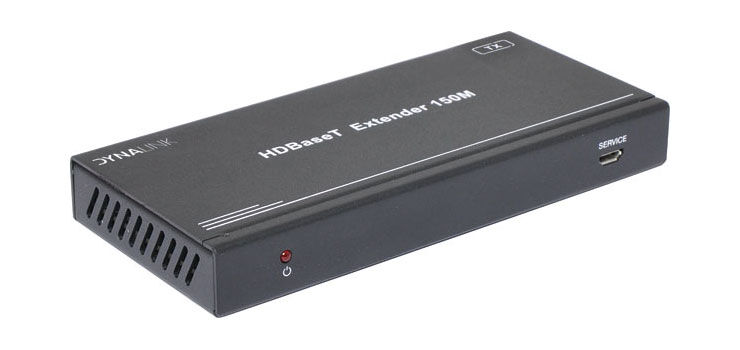

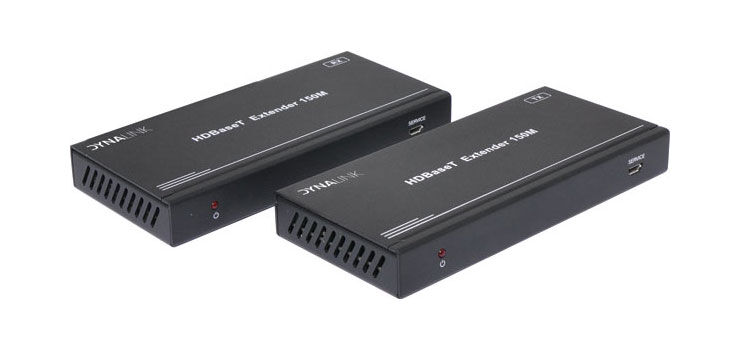

This HDMI extender includes two units: transmitter unit and receiver unit. The transmitter unit is responsible for capturing HDMI input signal and carrying the signal via one cost effective Cat5e/6 cable, and transmitting / emitting IR RS232 control signals. The receiver unit is responsible for receiving the HDMI signal and transmitting / emitting IR RS232 control signal. The extender offers the most convenient solution for HDMI extension via a single Cat5e/6 with long distance capability.

Package includes:
1 x 18Gbps HDMI over HDBaseT Extender (Transmitter)
1 x 18Gbps HDMI over HDBaseT Extender (Receiver)
1 x IR Blaster cable (1.5 meters)
1 x 20~60KHz IR Receiver cable (1.5 meters)
2 x 3-pin Phoenix connector
1 x 24V/1A Locking Power adapter
1 x User Manual


Features

• Compact design for easy and flexible installation
• HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant.
• Supports 18Gbps video bandwidth.
• Single Cat5e/6 cable transmission: 120m @ 4K2K, 150m @ 1080p.
• HDMI loop output on transmitter
• Analogue 3.5mm stereo output on receiver
• Bi-directional IR control (two targets and two emitters included)
• RS232 pass-through
• CEC pass-through
• HDR, HDR10+, Dolby Vision and HLG support
• Supports PoC (Power over Cable)

Specifications

• Technical
• HDCP Compliance: HDCP 2.2 / HDCP 1.4
• Video Bandwidth: 18Gbps
• Video Resolution: 4K2K 50/60Hz 4:4:4, 4K2K 50/60Hz 4:2:2, 4K2K 50/60Hz 4:2:0, 4K2K 30Hz 4:4:4, 1080p, 1080i, 720p, 720i, 480p, 480i, All HDMI 3D TV formats, All PC resolutions including 1920 x 1200
• Color Space: RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
• Color Depth: 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr, 4:2:2/4:2:0), 8-bit (4K60Hz 4:4:4)
• HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
• L/R Audio Formats: PCM 2.0
• ESD Protection: Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
•
• Connection

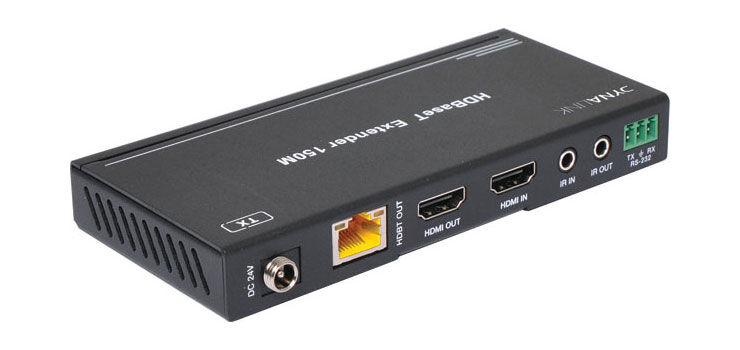

• Transmitter: Inputs: 1x HDMI Type A [19-pin female] Outputs: 1x HDMI Type A [19-pin female], 1x HDBT OUT [RJ45, 8-pin female] Control:, 1x IR IN [3.5mm Stereo Mini-jack], 1x IR OUT [3.5mm Stereo Mini-jack] , 1x RS232 [Phoenix jack], 1x SERVICE [Mini-USB, Update port]

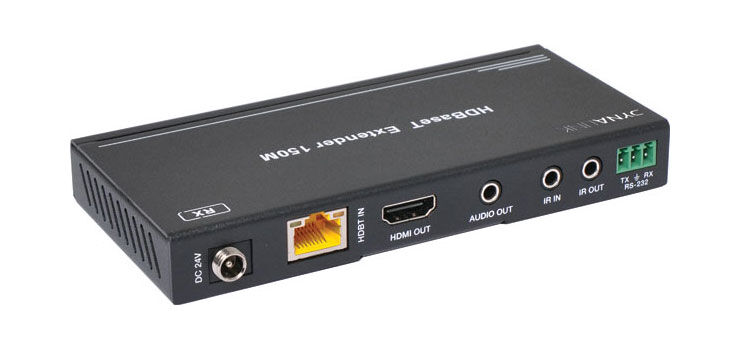

• Receiver: Inputs: 1x HDBT IN [RJ45, 8-pin female] Outputs: 1x HDMI Type A [19-pin female], 1x AUDIO OUT [3.5mm Stereo Mini-jack] Control: 1x IR IN [3.5mm Stereo Mini-jack], 1x IR OUT [3.5mm Stereo Mini-jack] , 1x RS232 [Phoenix jack], 1x SERVICE [Mini-USB, Update port]
•
• Mechanical
• Housing: Metal Enclosure
• Colour: Black
• Dimensions: Transmitter / Receiver:140mm [W] x 65mm [D] x 18mm [H]
• Weight: Transmitter: 160g, Receiver: 155g
• Power Supply: Input: AC 100 - 240V 50/60Hz, Output: DC 24V/1A (Locking connector)
• Power Consumption: 9.36 W
• Operating Temperature: 0 - 40°C
• Storage Temperature : -20 - 60°C
• Relative Humidity : 20 - 90% RH (no condensation)
•
• Resolution/Distance
• 4K2K: 120M
• 1080P: 150M

  *Specifications are subject to change without notice.
