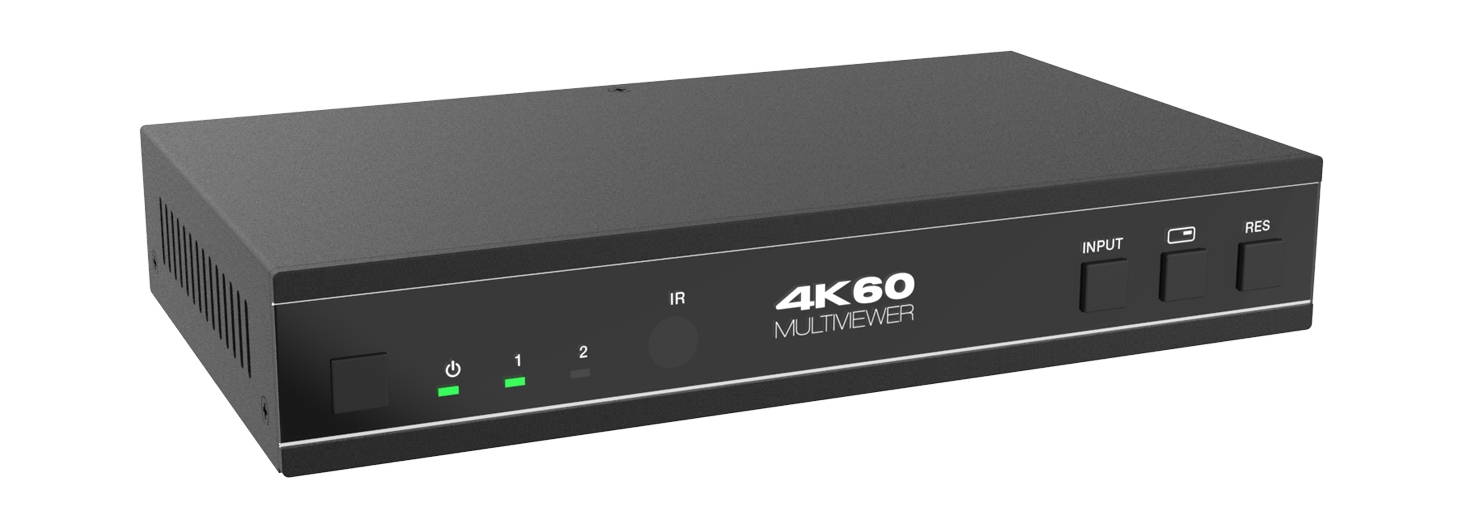

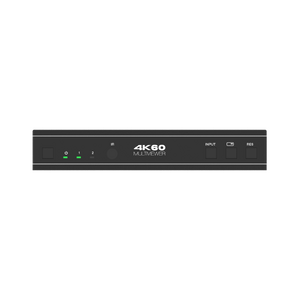

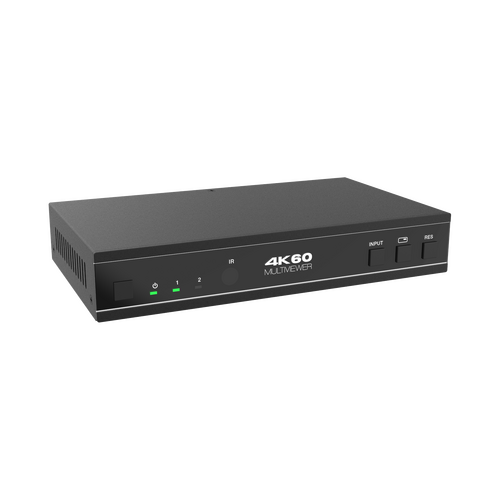

4K HDMI 2.0 2 Port Multiview Switcher
2 Input to 1 Output Seamless Multi-viewer Switch
SKU: AA6642
4K HDMI 2.0 2 Port Multiview Switcher
2 Input to 1 Output Seamless Multi-viewer Switch
This 4K60 2x1 Multiviewer Seamless UHD Video Switcher was developed for the purpose of supporting higher output resolution (4K@60) for multiple sources on a single screen. It can combine two video signals onto a single UHD or HD displayer. The user can manage each input, and create combinations of the two inputs on a single display, as well as adjust the position of either input.This product supports 4 display modes, within the mode range, users can freely switch 2-channel HD input signals. It can realize single screen display and multiview display on a single screen.This device supports full range of input video resolutions up to 4K@60 (RB) and audio RCA /Optical de-embedding supported for external audio distribution systems.This device can be controlled via front panel buttons, IR remote, OSD menu navigation, Controller software, RS-232 commands
☆ HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
☆ Support 18Gbps video bandwidth
☆ Input and output resolutions support up to 4K2K@60 4:4:4
☆ Support LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel
☆ Seamless switching between input channels and combined multiple images on single UHD monitor
☆ Up to 4 display modes: SINGLE, PIP, PBP (1), PBP (2)
☆ Audio de-embedding via analog and optical fiber audio ports
☆ Support volume control and independent audio selection
☆ Advanced EDID management

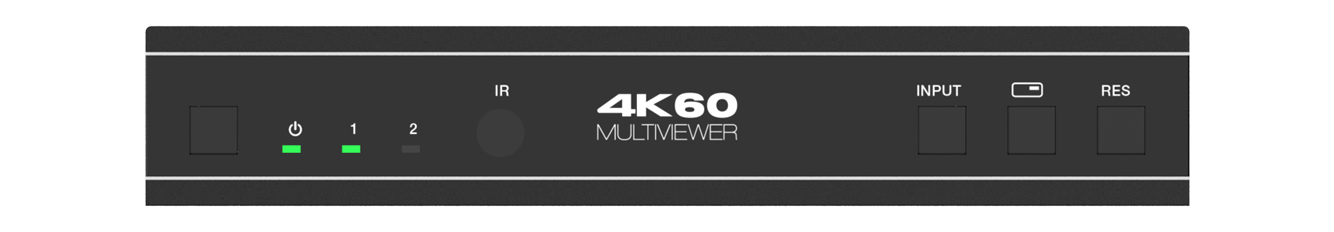

☆Control via front panel buttons, IR remote, OSD menu navigation, Controller software, RS-232 commands
☆ Compact design for easy and flexible installation
Specfications:
|
Technical |
|
|
HDMI Compliance |
HDMI 2.0b |
|
HDCP Compliance |
HDCP 2.2/1.x |
|
Video Bandwidth |
18Gbps |
|
Video Resolution |
Up to 4K2K@60 4:4:4 |
|
IR Level |
5Vp-p |
|
IR Frequency |
38KHz |
|
Color Depth |
8bit |
|
Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
|
Audio Formats |
HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res Analog audio [3.5mm L/R]: PCM2.0; SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0. Note: It does not support HBR audio. |
|
ESD Protection |
Human body model—±8kV (Air-gap discharge) &±4kV (Contact discharge) |
|

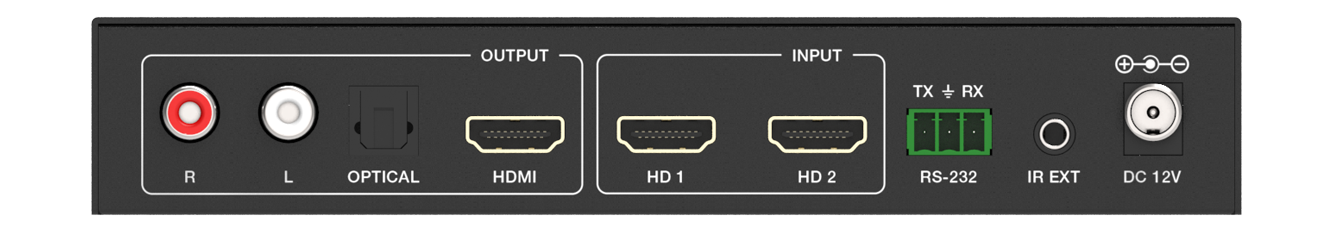

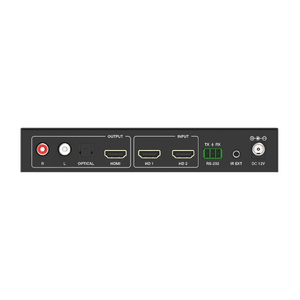

Connections |
|
|
Input ports |
2x HDMI IN [Type A, 19-pin female] |
|
Output ports |
1x HDMI OUT [Type A, 19-pin female] 1x L/R OUTPUT [RCA] 1x OPTICAL OUTPUT [S/PDIF] |
|
Control ports |
1x RS-232 [3pin-3.81mm phoenix connector] 1x IR EXT [3.5mm Stereo Mini-jack] |
|
Mechanical |
|
|
Housing |
Metal Enclosure |
|
Color |
Black |
|
Dimensions |
175mm [W] x 100mm [D] x 30mm [H] |
|
Weight |
497g |
|
Power Supply |
Input: AC 100 - 240V 50/60Hz Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified) |
|
Power Consumption |
4.56W (Max) |
|
Operation Temperature |
32°F - 104°F / 0°C - 40°C |
|
Storage temperature |
-4°F - 140°F / -20°C - 60°C |
|
Relative Humidity |
20 - 90% RH (no condensation) |
| SKU | AA6642 |
| Barcode # | |
| Brand | Aus Electronics Direct |
| Shipping Weight | 0.4000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.050m |
| Shipping Length | 0.150m |
| Shipping Cubic | 0.001500000m3 |
| Unit Of Measure | ea |
