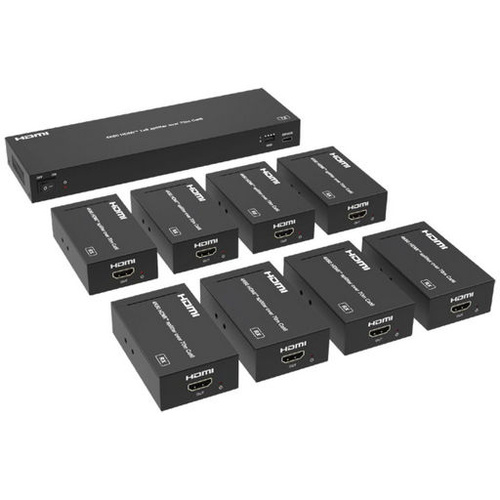

4K 18GBPS HDMI 2.0 8 Way Splitter Extender via CAT6

8 Way HDMI CAT 6 Extender

4K HDMI over CAT6 Splitter Extender Kit PtM, 1x Transmitter to 8x Receivers, Range up to 60M (4K)

WITH ONE WAY PoC / ADVANCED EDID MANAGEMENT

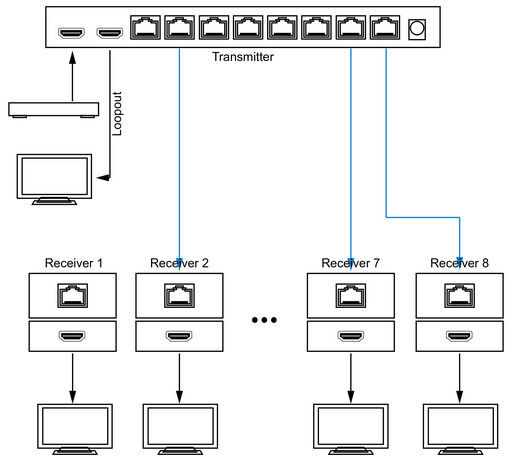

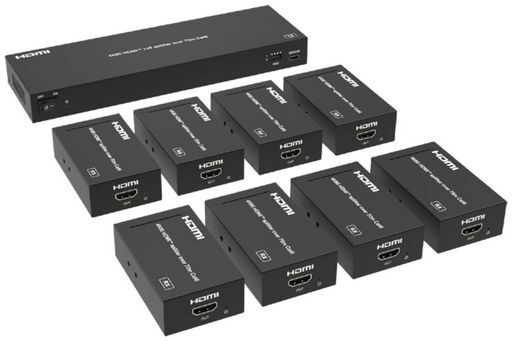

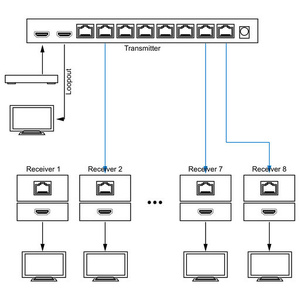

The 18Gbps HDMI 1x8 Splitter Extender kit includes one transmitter and eight receivers, allowing a single HDMI source to be sent to eight displays at up to 4K@60Hz (4:4:4). HDMI signals extend up to 60m at 4K@60Hz or 70m at 4K@30Hz over a single CAT6 cable. The transmitter provides a local HDMI loop output for on-site monitoring. The system supports PoC for easier installation and features advanced EDID management for optimal device compatibility.




• Includes one HDMI transmitter and 8 receivers.
• HDMI 2.0b and HDCP 2.2 compliant.
• HDMI local loop out on the transmitter.
• Support 18Gbps video bandwidth.
• Support HDR, HDR10+, HLG, Dolby Vision.
• Up to 7.1CH HD audio pass-through.
• Transmission distance up to 60m (4K@60) over a single Cat6 cable.
• Support one-way PoC function (only from transmitter to receiver).
• Advanced EDID management through a dip switch.
• Includes power supply.
• Dimensions: 235x70x25mm (Tx), 81x49x25mm (Rx).
