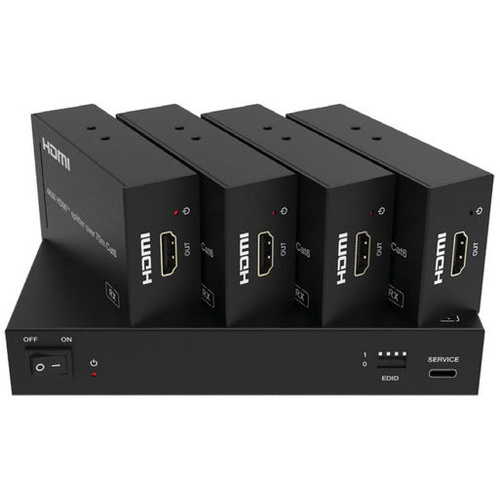

4K 18GBPS HDMI 2.0 4 Way Splitter Extender via CAT6

4K 18GBPS HDMI 2.0 4 Way Splitter Extender via CAT6

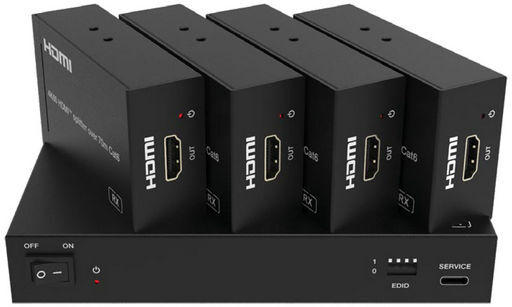

4K HDMI over CAT6 Splitter Extender Kit PtM, 1x Transmitter to 4x Receivers, Range up to 60M (4K)

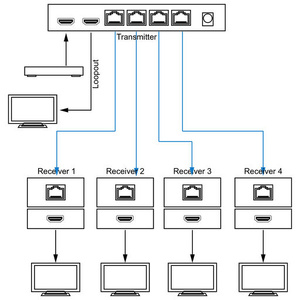

The 18Gbps HDMI 1x2 Splitter Extender kit includes one transmitter and four receivers, allowing a single HDMI source to be sent to four displays at up to 4K@60Hz (4:4:4). HDMI signals extend up to 60m at 4K@60Hz or 70m at 4K@30Hz over a single CAT6 cable. The transmitter provides a local HDMI loop output for on-site monitoring. The system supports PoC for easier installation and features advanced EDID management for optimal device compatibility.




• Includes one HDMI transmitter and 4 receivers.
• HDMI 2.0b and HDCP 2.2 compliant.
• HDMI local loop out on the transmitter.
• Support 18Gbps video bandwidth.
• Support HDR, HDR10+, HLG, Dolby Vision.
• Up to 7.1CH HD audio pass-through.
• Transmission distance up to 60m (4K@60) over a single Cat6 cable.
• Support one-way PoC function (only from transmitter to receiver).
• Advanced EDID management through a dip switch.
• Includes power supply.
• Dimensions: 150x70x25mm (Tx), 81x49x25mm (Rx).
