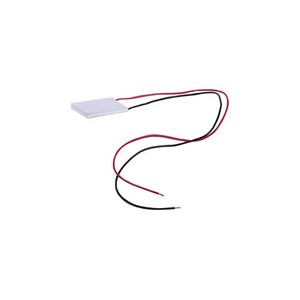

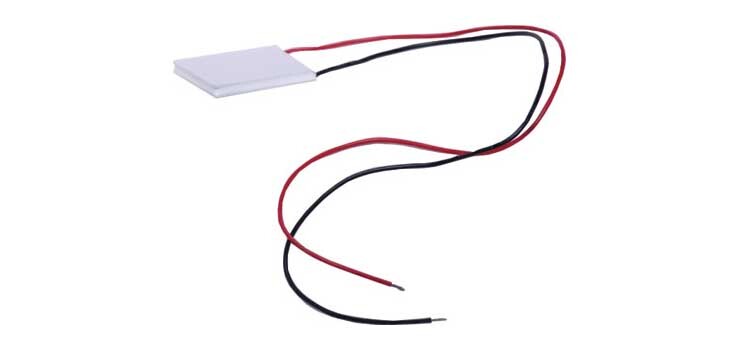

40mm 8A Thermoelectric Peltier Cooler Module

Peltier Module for cooling and heating applications

Uses the Peltier effect to transfer heat. Essentially creating a ‘cold side’ and a ‘hot side’ on the device. Applications include biomedical instruments, consumer products like thermoelectric cooling water coolers, thermoelectric refrigerator, industrial equipment, laboratory and scientific instruments etc 320mm flyleads. Note: Must be used with appropriate heatsinking to prevent the peltier device from failing.

Specifications:

• Temperature differential (Tmax): 65-68°C

• Input voltage (Vmax): 15.4V DC

• Input current @ 15.4V DC (Imax): 8A

• Max cooling power (Qmax): 68W

• Size (mm): 40 x 40 x 4.0
