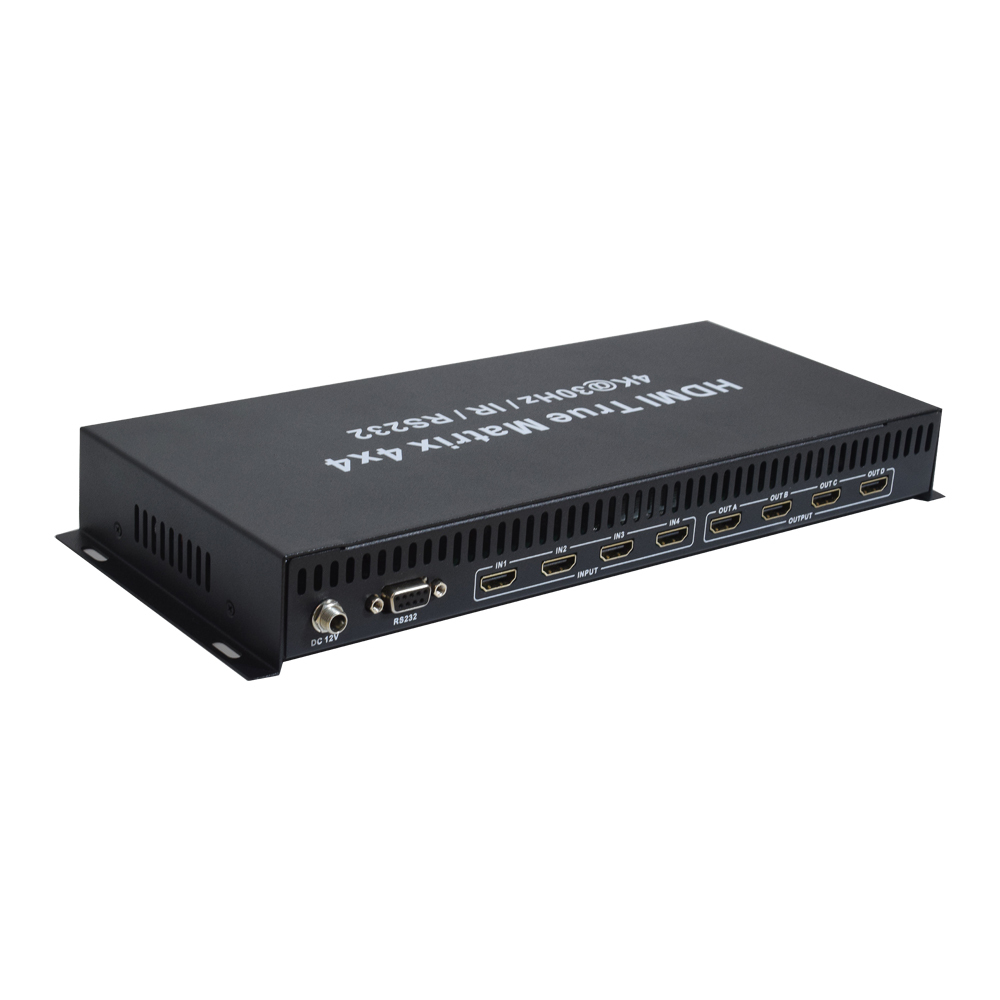

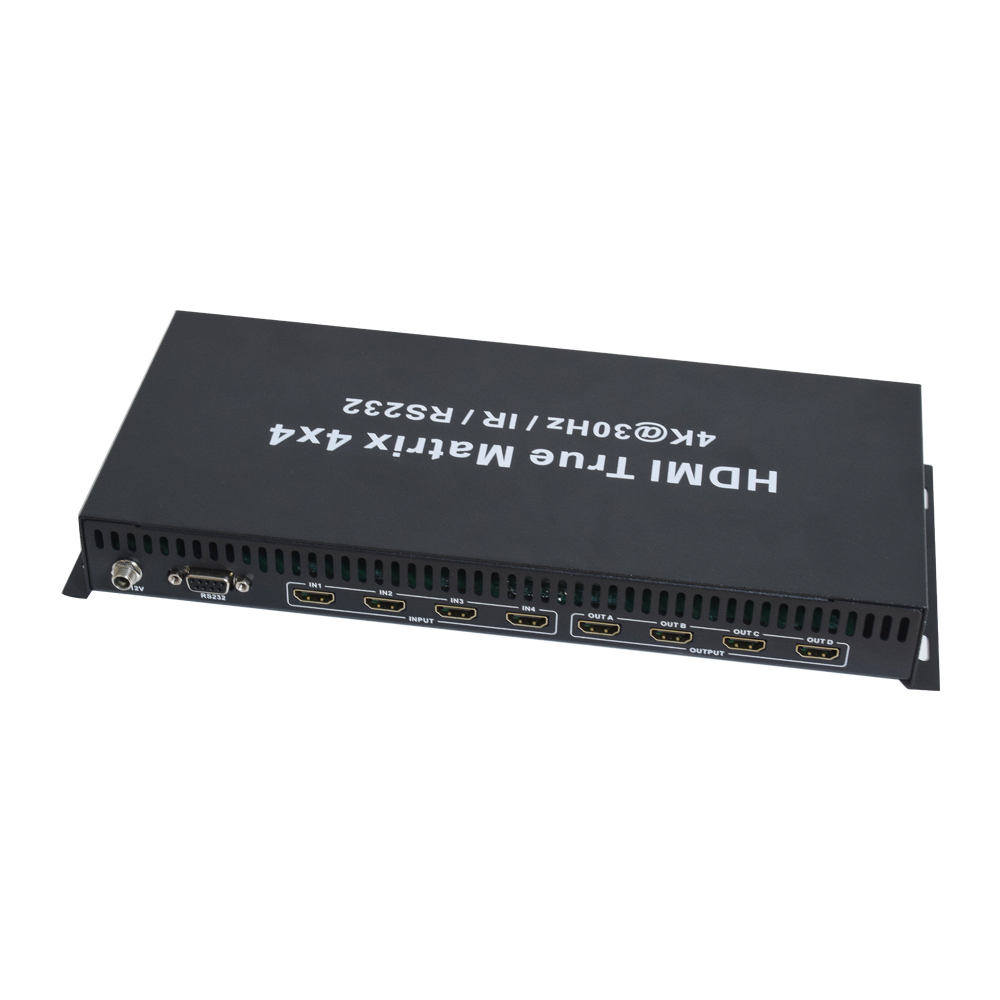

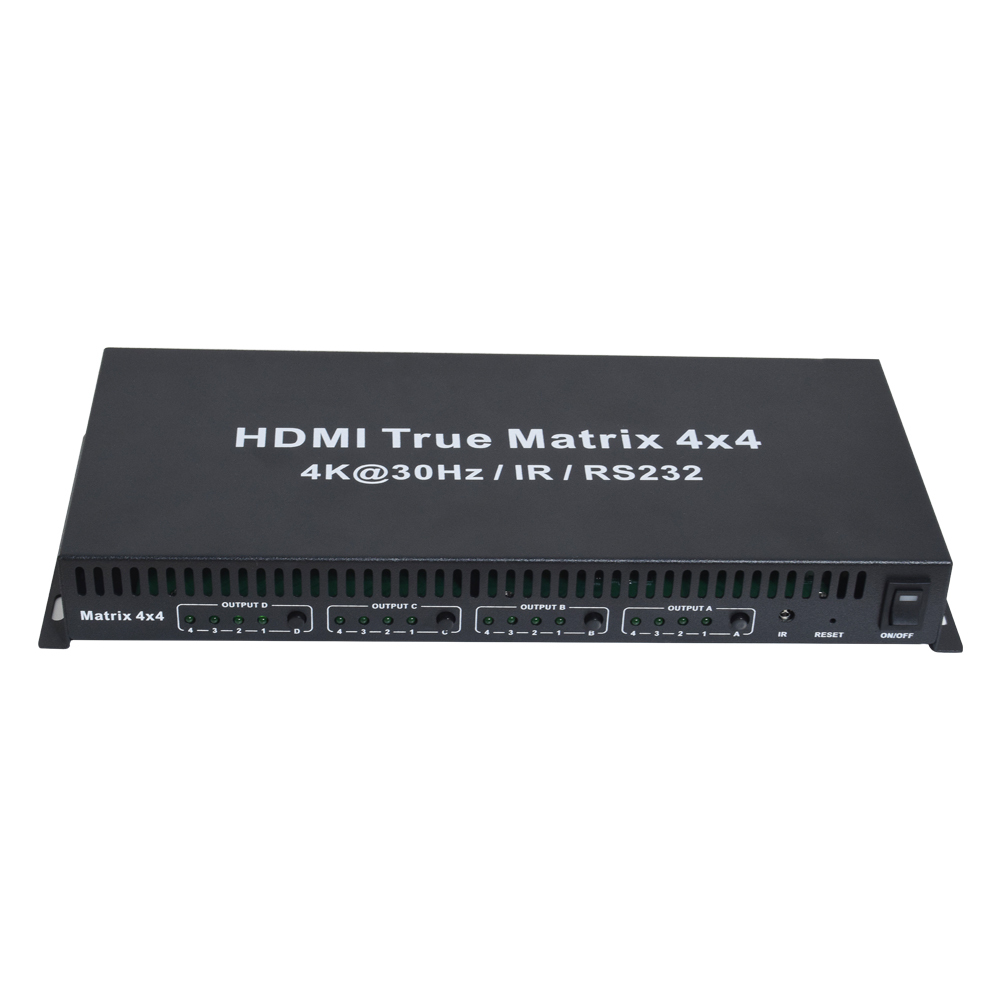

4 Input 4 Output 4K HDMI Matrix True Switcher/Splitter

4K @ 30Hz 4 x 4 Matrix with RS232 control

A high-performance HDMI 4K @ 30Hz Matrix Switcher and Splitter with four HDMI inputs & four outputs. It allows any HDMI input/source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be displayed to any of the four LCD/TV simultaneously. It supports 4K×2K, 3D, Deep Colour and 10.2Gbps bandwidth.

Features:

• Four Input HD Source signals switch and distribute to four HD Displays

• Support 12 Bit Deep Color

• Support Blue-Ray DVD 24/50/60fs / HD-DVD / xvYCC

• Support Audio Format:DTS-HD / Dolby-trueHD / LPCM7.1 / DTS/Dolby-AC3 /DSD

• Support Signal Retiming

• HDMI 1.4 Version

• HDMI Input Cable length can be up to 10m and HDMI Output Cable length up to 10 when transmitting 1080P signal by using standard AWG24 HDMI Cable;

• HDMI Input Cable length can be up to 5m and HDMI Output Cable  length up to 5m when transmit the 4Kx2Knal by using standard AWG24 HDMI Cable;

Contents:

• 1. Main Unit

  2. Power Adaptor

  3. Remote

  4. User Manual

  5. CD （RS232 Control Software）

  6. RS232 Serial Port Cable

Specifications:

Product: HDMI True Matrix 4X4
Input channel: HDMI port x4
Output channel: HDMI port x4
RS232 interface: RS232 port x1
RS232 serial communication support
Resolution format 480P/720P/1080P/4K@24Hz/4K@30Hz
Deep color 8/10/12Bit
HDMI audio output format LPCM2.0/DTS/DOLBY-AC3……
HDMI Input cable length
2160P/AWG 26 ≤5m
1080P/AWG 26 ≤10m
HDMI Output cable length
2160P/AWG 26 ≤5m
1080P/AWG 26 ≤10m
HDMI transmission bandwidth 25~340MHz
HDMI transmission rate 0.75~10.2Gbps
Power adapter specification Input: AC 100~240V Output: DC 12V/1.5A
Max working current 350mA
Working temperature range 0 ~ +40℃
Working humidity range 5 to 85%RH（No Condensation）
Storage temperature -15 to 55℃
Storage humidity 5 ~95%RH(No Condensation)
Size 324x137x40.05 (mm)
Weight 1090g
Accessories Manual, Power Adaptor, Remote
RS232 Serial Port Operation Way
RS-232 Set-up
Baud Rate: 115200 bps
Data Bits: 8 bits
Stop Bits: 1 bit
Parity: None
