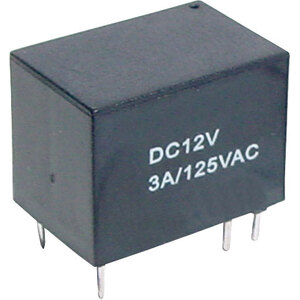

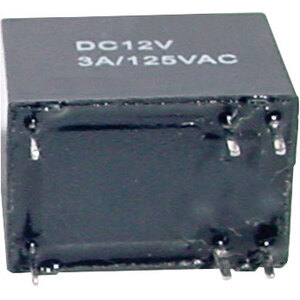

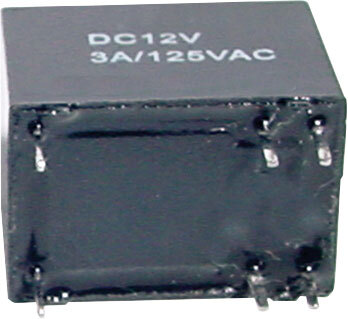

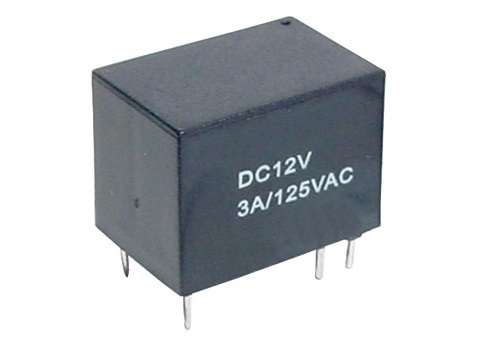

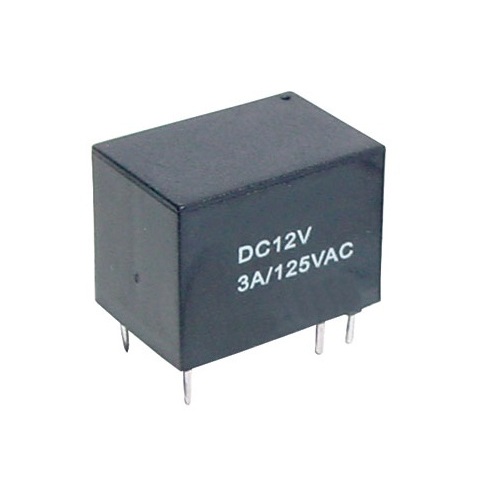

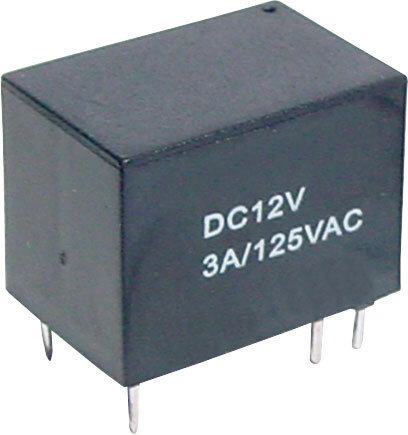

3A 12VDC SPDT PCB Mount Micro Relay

12V Micro Relay

SKU: ER0012

In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $3.80
Buy 11 to 20: Pay $3.61
Buy 21 to 100: Pay $3.42

Calculate Shipping

3A 12VDC SPDT PCB Mount Micro Relay

12V Micro Relay

3A SPDT micro relay. PCB mount style. 12V DC coil.
Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.

  • Max Switching Voltage: 220V AC, 60V DC
  • Max Switching Current: 3A
  • Max VA (Watts): 625VA (90W)
  • Contact Material: Silver Nickel
  • Coil Resistance: 400Ω
  • Max Coil Power: 200mw
  • Insulation Resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 500V AC between open contacts
  • 500V AC between coil & contact
  • Electrical Life:100,000 operations 3A 24V
  • Mechanical Life: 10 million operations
  • Dimensions:˜16W x 10L x 11H mm

    *Specifications are subject to change without notice
