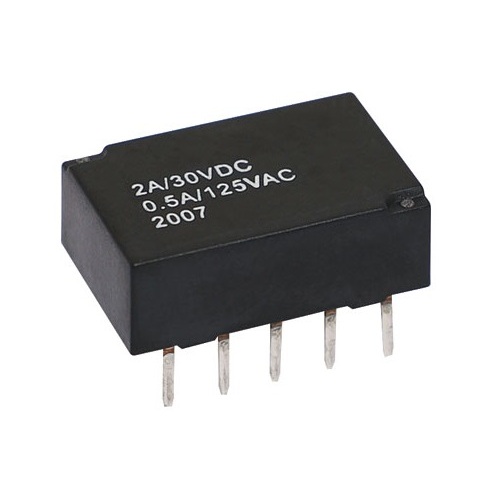

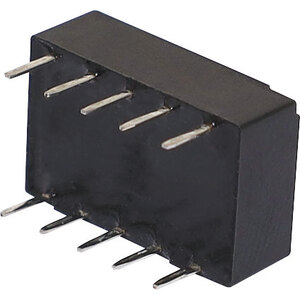

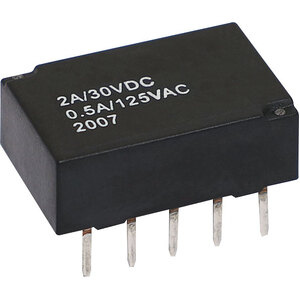

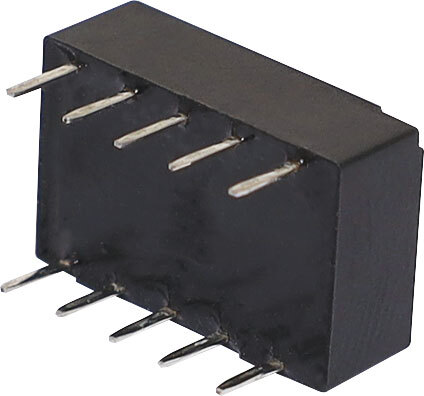

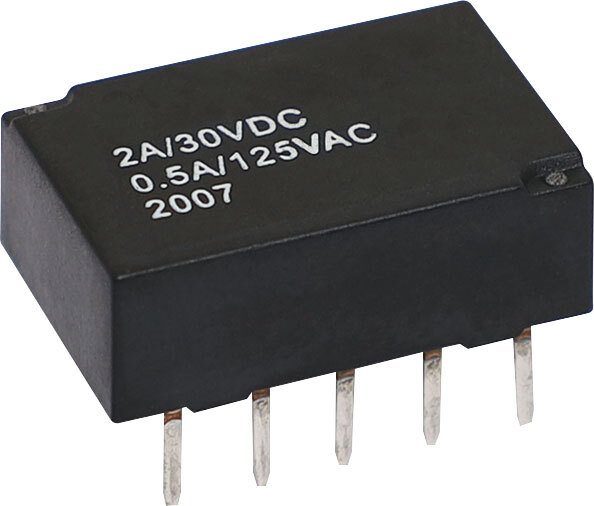

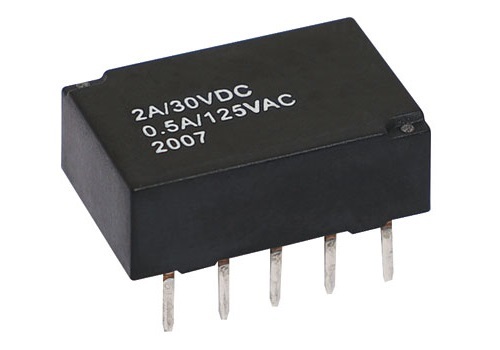

2A 5VDC DPDT PCB Mount Telecom Relay

5V Telecom Relay

SKU: ER0005

In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $5.70
Buy 11 to 20: Pay $5.41
Buy 21 to 100: Pay $5.14

Calculate Shipping

2A 5VDC DPDT PCB Mount Telecom Relay

5V Telecom Relay

Compact 2A DPDT telecom relay with fully sealed construction (suitable for immersion cleaning). 5V DC coil.

Fully sealed construction, makes it ideal for immersion cleaning and large scale manufacturing. Low coil current and high contact breakdown voltage make it suitable for a wide variety of switching applications.

2.54mm pitch pin spacing and 7.62mm width mean they can fit in an IC socket or standard pin header which makes for easy replacement and serviceability.


  • Max Switching Voltage: 250V AC, 220V DC
  • Max Switching Current: 0.5A AC, 2A DC. (1A DC for UL approved applications)
  • Max VA (Watts): 62VA (30W)
  • Contact Material: Silver Palladium
  • Coil Resistance: 178Ω
  • Max Coil Power: 200mw
  • Insulation Resistance: >1000MΩ@ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 1000V AC between coil & contact
  • Electrical Life: 200,000 operations 1A 24V
  • Mechanical Life: 10 million operations
  • Dimensions: 14W x 9L x 5H mm

    *Specifications are subject to change without notice
