2.5" 8 Ohm 10WRMS Full Range Aluminium Cone Woofer
2.5" Full Range Aluminium Cone Woofer
SKU: AS5117
$39.95
RRP $79.95
In Stock
2.5" 8 Ohm 10WRMS Full Range Aluminium Cone Woofer
2.5" Full Range Aluminium Cone Woofer
The Peerless TA6FD00-08 is a 2" full-range drivers with anodised aluminium cones and dust caps for smooth response and reduced resonance. They feature a rigid steel basket with under-spider venting for motor cooling and a ferrite magnet with a copper cap to lower coil inductance, resulting in low distortion and extended high-frequency performance. These drivers are suited for ultra-compact audio applications like soundbars, near-field monitors, and portable Bluetooth speakers.
Features:

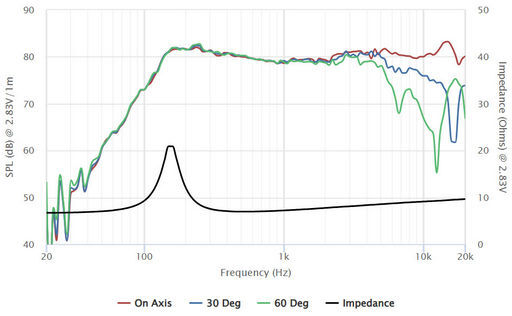

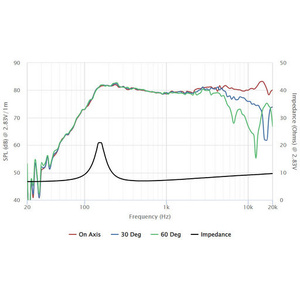

- Extremely smooth response from 100 Hz to 17,000 Hz.
- Nearly perfect off axis response up to 4,000 Hz.
- Copper pole cap minimses inductance and distortion.
- Extensive venting under the spider and pole piece keeps the voice coil cool with no noise.
Specifications:

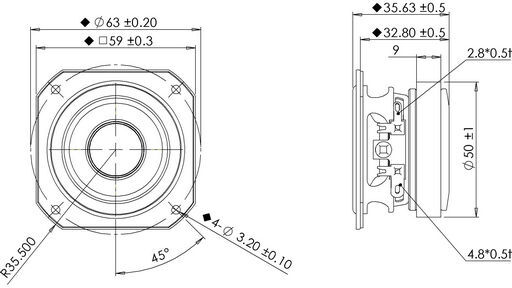

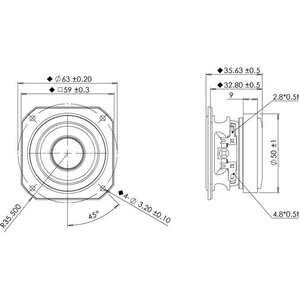

| Cms | 0.6mm/N |
| Coil | 19.3mmØ |
| Depth | 32.8mm |
| Diam. | 63mmØ |
| Fs | 170Hz |
| Hole | 50mmØ |
| Hole Cutout | 50mmØ |
| Impedance | 8Ω Re 6.4Ω |
| Impedance (Ohm) | 8 ohm |
| Inch | 2 |
| Le | 0.054mH |
| Manufacturer | Peerless |
| Mms | 1.44g |
| Power | 10Wrms |
| Power (RMS) | 0-50 Watt |
| Price Type | each |
| Prms | 10W |
| Qes | 1.73 |
| Qms | 4.45 |
| Qts | 1.2 |
| QTY | 1 |
| Re | 6.4Ω |
| Sd | 15.2cm² |
| Sens. | 80dB |
| Series | Peerless Full Range |
| Size | 2' |
| Type | Full Range |
| Vas | 0.197L |
| Width | 59mm |
| Zn | 8Ω |
| SKU | AS5117 |
| Barcode # | |
| Brand | Peerless |
| Shipping Weight | 2.0000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.100m |
| Shipping Length | 0.100m |
| Shipping Cubic | 0.001000000m3 |
| Unit Of Measure | ea |
