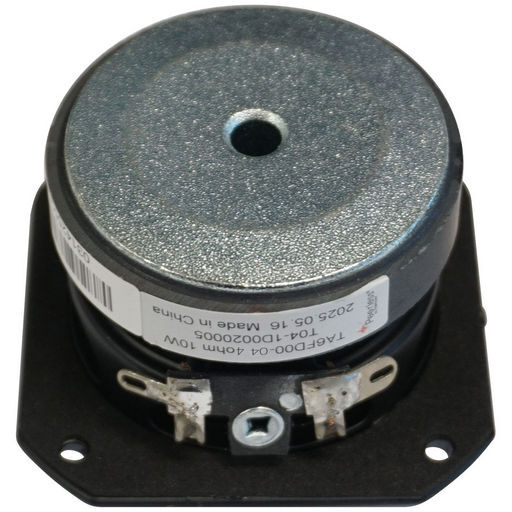

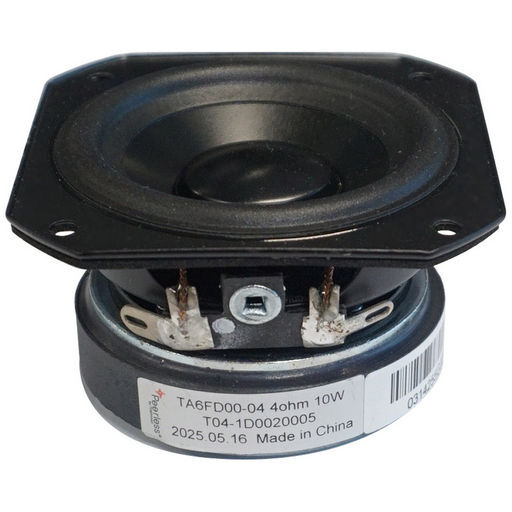

2.5" 4 Ohm 10WRMS Full Range Aluminium Cone Woofer

2.5" Full Range Aluminium Cone Woofer

SKU: AS5116


$39.95
RRP $79.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $37.95 ea
Buy 11 to 20: Pay $36.05 ea
Buy 21 to 100: Pay $32.45 ea
Buy 101 to 3,000: Pay $29.20 ea




Calculate Shipping

2.5" 4 Ohm 10WRMS Full Range Aluminium Cone Woofer

2.5"  Full Range Aluminium Cone Woofer

The Peerless TA6FD00-04 is a 2" full-range drivers with anodised aluminium cones and dust caps for smooth response and reduced resonance. They feature a rigid steel basket with under-spider venting for motor cooling and a ferrite magnet with a copper cap to lower coil inductance, resulting in low distortion and extended high-frequency performance. These drivers are suited for ultra-compact audio applications like soundbars, near-field monitors, and portable Bluetooth speakers.

Features:

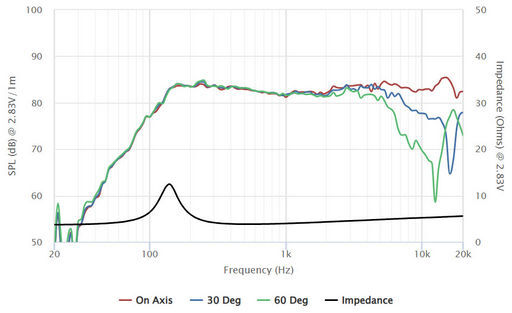

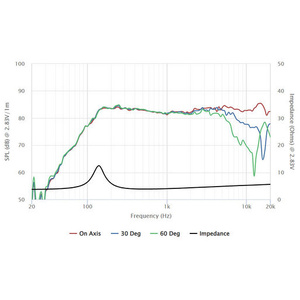

  • Extremely smooth response from 100 Hz to 17,000 Hz.
  • Nearly perfect off axis response up to 4,000 Hz.
  • Copper pole cap minimses inductance and distortion.
  • Extensive venting under the spider and pole piece keeps the voice coil cool with no noise.

Specifications:

Cms 0.63mm/N
Coil 19.3mmØ

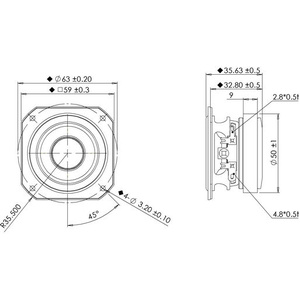

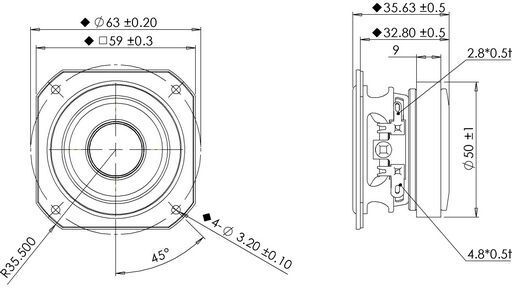

Depth 32.8mm
Diam. 63mmØ
Fs 170Hz
Hole 50mmØ
Hole Cutout 50mmØ
Impedance 4Ω Re 3.5Ω
Impedance (Ohm) 4 ohm
Inch 2
Le 0.035mH
Manufacturer Peerless
Mms 1.42g
Power 10Wrms
Power (RMS) 0-50 Watt
Price Type each
Prms 10W
Qes 1.56
Qms 4.33
Qts 1.1
QTY 1
Re 3.5Ω
Sd 15.2cm²
Sens. 79.9dB
SKU AS5116
Barcode #
Brand Peerless
Shipping Weight 2.0000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
Unit Of Measure ea
