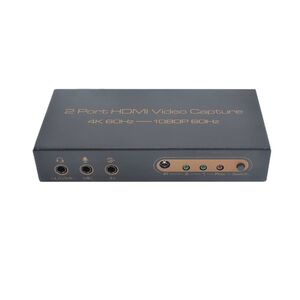

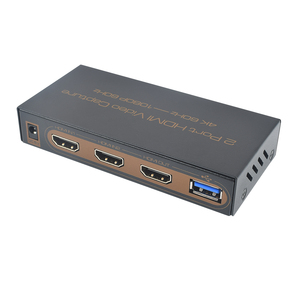

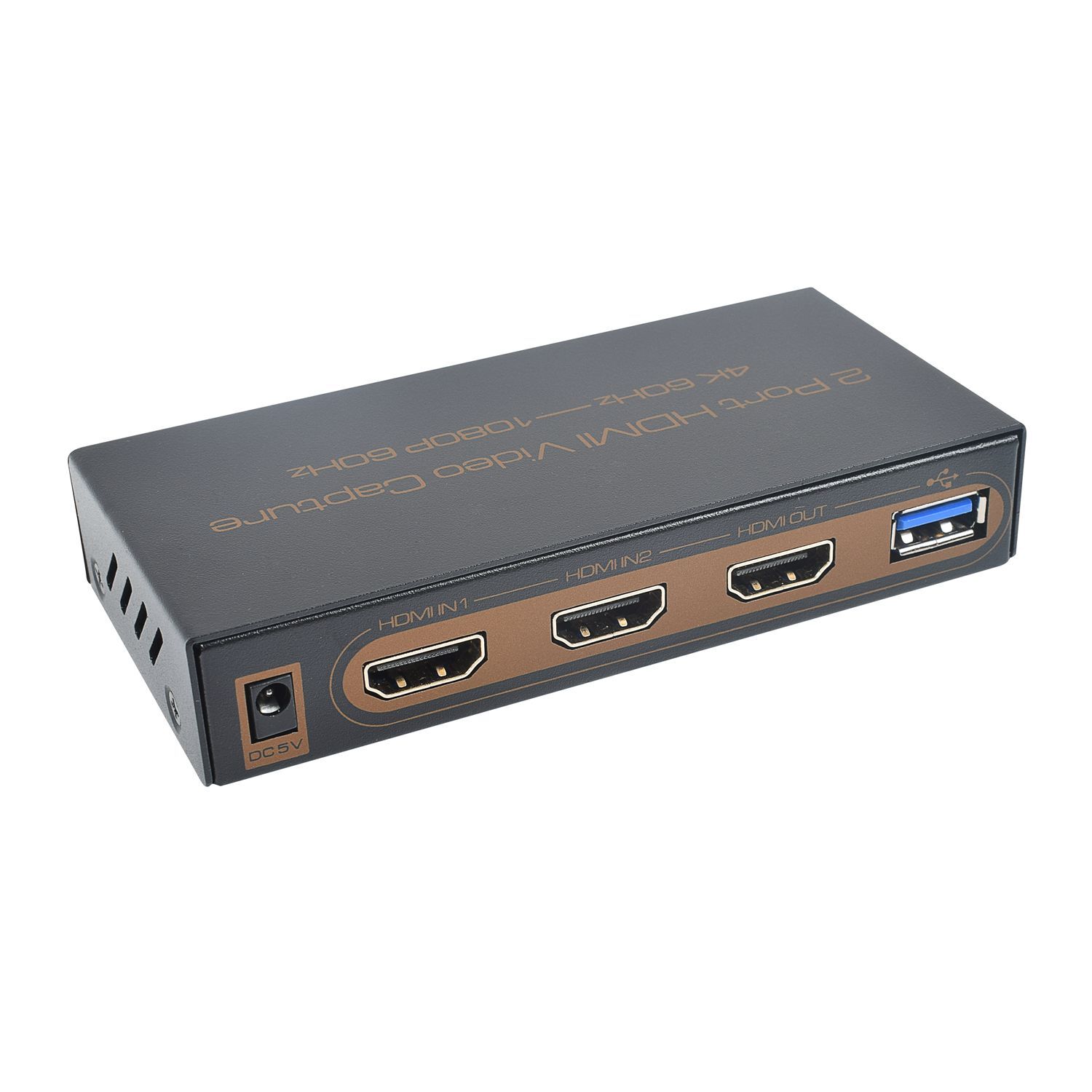

2 Port HDMI 2.0 to USB 3.0 Video Capture Device

2 HDMI Input Capture Device - Perfect for live streaming

This USB 3.0 Video Capture Device has 2 HDMI Inputs. It is a perfect solution for tutorials, gamers, bloggers and live streamers. It allows you to conenct a HDMI video source and a HD camera at the same time and stream the content on an online platform. Supports 1080p high definition inputs and has 1 x HDMI output for a Display and a USB 3.0 output for PC or Laptop connectivity. Compatible with most video capture software such as VLC, OBS, etc.



Model No. AA6238

Model name 2 Port HDMI Video Capture

Input ports HDMI2.0 x2,LINE IN x1,MIC x1,DC3.5 x1

Output ports HDMI2.0 x1,USB3.0 x1, Headset x1

HDMI video resolution 720P/1080P/2160P@24/30/50/60Hz

Audio format LPCM2.0/32~192KHz/16/20/24Bit

Input color space RGB、YUV444、YUV422、YUV420

HDMI video output resolution 3840x2160@60Hz Max.

Video capture resolution 1920x1080@60Hz Max.

Video output format YUV or JPEG

HDMI input cable length 2160P/AWG 26 ≤5m or1080P/AWG 26 ≤10m

HDMI output cable length 2160P/AWG 26 ≤5m or1080P/AWG 26 ≤10m

Power supply mode USB power supply / DC5V auxiliary power supply

Max working current 600mA

Working temperature range -5 ~ +40℃

Working humidity range 5 to 85%RH（No Condensation）

Storage temperature -15 to 55℃

Storage humidity 5 ~95%RH(No Condensation)

Size 111x53x21 (mm)

Weight 144g

Accessories Manual x1, Remote ,USB-DC3.5 power cable x1, 3.5mm audio cable x1，USB3.0(Type A) cable x1
