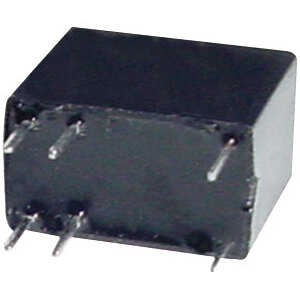

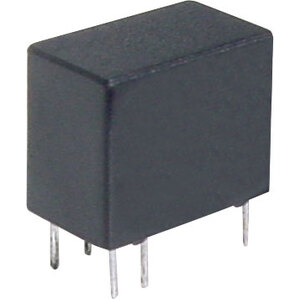

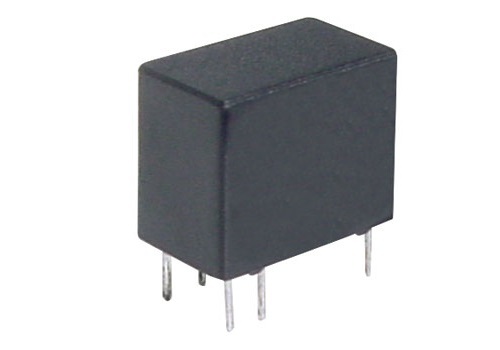

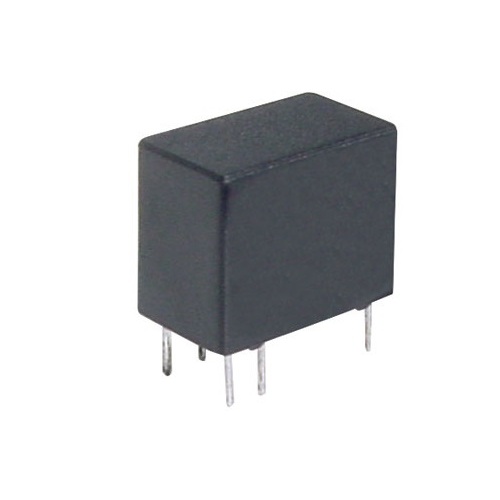

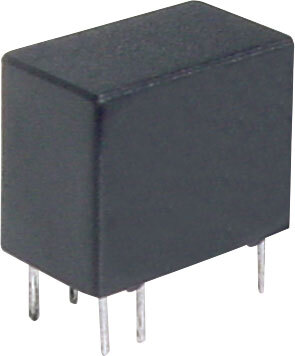

1A 5VDC SPDT PCB Mount Mini Relay

5V Mini Relay

A 1A SPDT PCB mount relay with sealed construction suitable for immersion cleaning. 5V DC coil.

Pinout:

• Max Switching Voltage: 125V AC, 60V DC
• Max Switching Current: 1A DC
• Max VA (Watts): 62.5VA (30W)
• Contact Material: Gold Plated Silver
• Coil Resistance: 166Ω
• Max Coil Power: 150mw
• Insulation Resistance: >1000MΩ @ 500V DC
• Dielectric Strength (for 1 min):
• 400V AC between open contacts
• 1000V AC between coil & contact
• Electrical Life: 100,000 operations
• Mechanical Life: 5 million operations
• Dimensions: ˜12.5W x 7.5L x 10H mm

  *Specifications are subject to change without notice.
